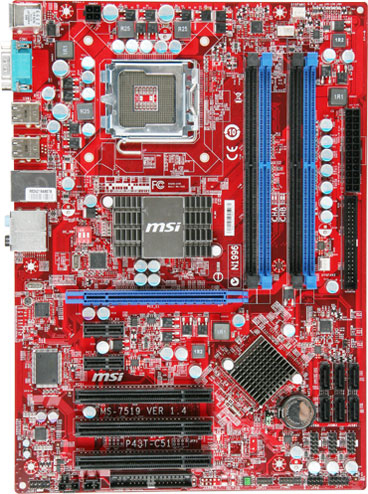

MSI P43T-C51 motherboard LGA 775 (Socket T) ATX
Model P43T-C51EAN 4719072126759
28 specifications
- Processor manufacturerIntel
- Number of memory slots4
- USB 2.0 connectors3
- LAN controllerRealtek RTL8111C
- Motherboard form factorATX
- PCI Express x1 slots2
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 4
- USB 2.0 connectors
- 3
- LAN controller
- Realtek RTL8111C
- Motherboard form factor
- ATX
- PCI Express x1 slots
- 2
- Brand
- MSI
- Category
- Motherboard
- Model
- P43T-C51
- Part numbers
- P43T-C51, 911-7519-051, 7519-220R, 7519 -220R
- EAN / UPC
- 4719072126759
- Also known as
- MSI P43T-C51 motherboard LGA 775 (Socket T) ATX
Specifications
28 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| Maximum internal memory | 16 GB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| Number of SATA connectors | 6 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| TPM connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| LAN controller | Realtek RTL8111C |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio chip | Realtek ALC889 / ALC885 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 2 |
| PCI Express x16 slots | 1 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 220 mm |
What people say
Reviews & ratings
MSI P43T-C51 motherboard LGA 775 (Socket T) ATX
No reviews yet
Be the first to tell others how MSI P43T-C51 motherboard LGA 775 (Socket T) ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare MSI P43T-C51 motherboard LGA 775 (Socket T) ATX

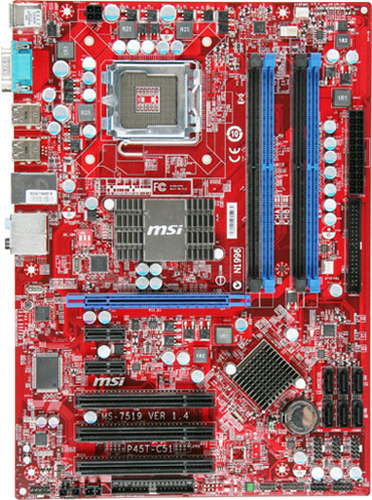

All motherboard comparisons- MSI P43T-C51 motherboard LGA 775 (Socket T) ATX vsMSI P45T-C51 motherboard LGA 775 (Socket T) ATXCompare specs

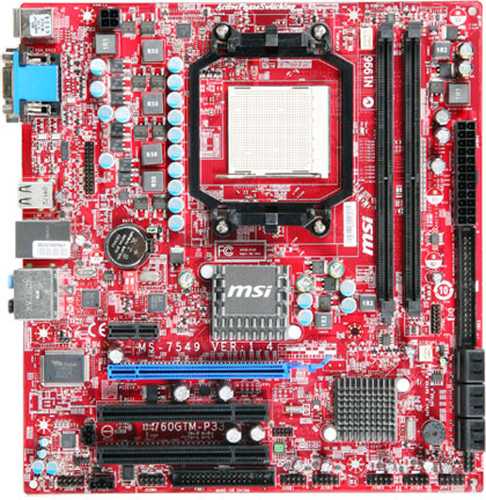

- MSI P43T-C51 motherboard LGA 775 (Socket T) ATX vsMSI 760GTM-P33 motherboard Socket AM2 micro ATXCompare specs
- MSI P43T-C51 motherboard LGA 775 (Socket T) ATX vsMSI G41TM-E63 motherboard LGA 775 (Socket T) micro ATXCompare specs
- MSI P43T-C51 motherboard LGA 775 (Socket T) ATX vsMSI 790GX-G65 Winki EditionCompare specs

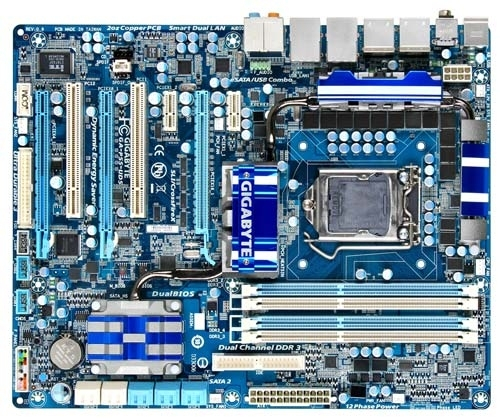

- MSI P43T-C51 motherboard LGA 775 (Socket T) ATX vsGIGABYTE GA-P55-UD5 motherboard LGA 1156 (Socket H) ATXCompare specs

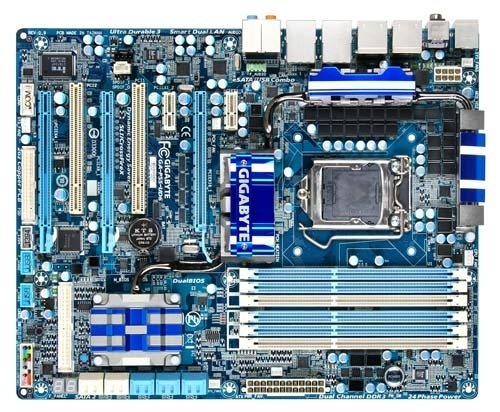

- MSI P43T-C51 motherboard LGA 775 (Socket T) ATX vsGIGABYTE GA-P55-UD6 motherboard LGA 1156 (Socket H) ATXCompare specs

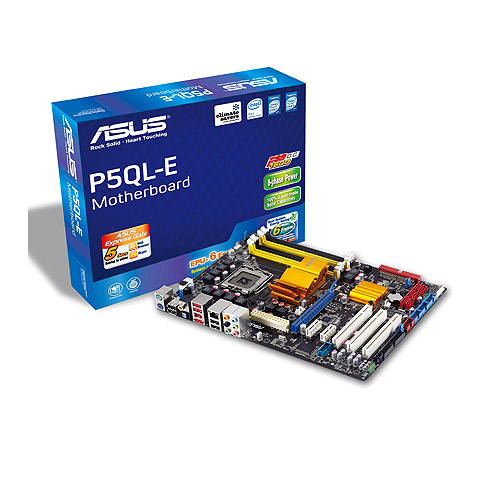

- MSI P43T-C51 motherboard LGA 775 (Socket T) ATX vsASUS P5QL-E/C/SI LGA 775 (Socket T) ATXCompare specs

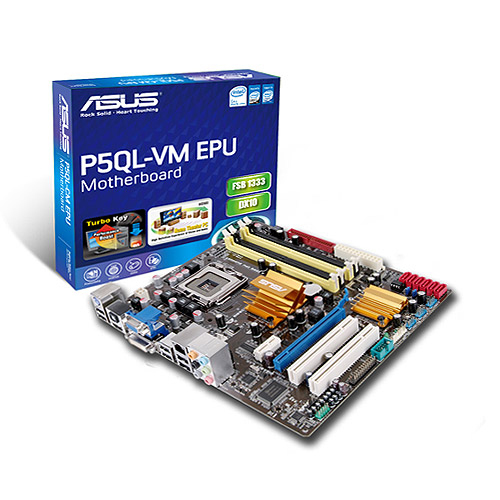

- MSI P43T-C51 motherboard LGA 775 (Socket T) ATX vsASUS P5QL-VM EPUCompare specs
