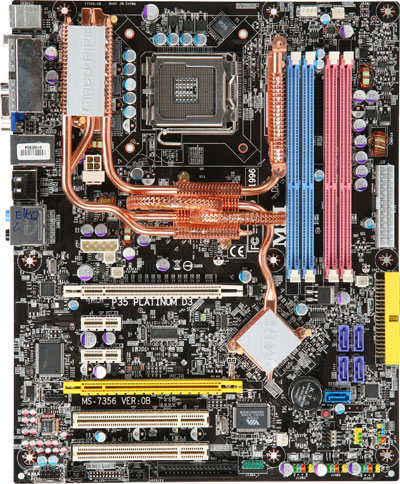

MSI P35D3 Platinum
Model P35D3 PlatinumPart no. 7356-050REAN 816909040234
31 specifications
- Processor manufacturerIntel
- Number of memory slots4
- USB 2.0 connectors3
- USB 2.0 ports quantity6
- LAN controllerRealtek RTL8111B
- Motherboard form factorATX
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 4
- USB 2.0 connectors
- 3
- USB 2.0 ports quantity
- 6
- LAN controller
- Realtek RTL8111B
- Motherboard form factor
- ATX
- Brand
- MSI
- Category
- Motherboard
- Model
- P35D3 Platinum
- Part number
- 7356-050R
- EAN / UPC
- 816909040234, 4719072056582
- Also known as
- MSI P35D3 Platinum LGA 775 (Socket T) ATX
Specifications
31 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| Maximum internal memory | 8 GB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| Number of SATA connectors | 5 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| Number of IEEE1394 connectors | 1 |

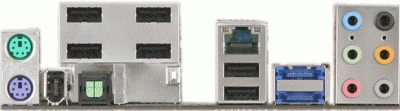

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 2 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
Network
| Specification | Value |
|---|---|
| LAN controller | Realtek RTL8111B |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio chip | Realtek ALC888 / ALC888T |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | -2x PCI Express 16X (CrossFire) -2x PCI Express x1 -2x 32-bit v2.3 PCI |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 245 mm |
| Depth | 305 mm |
Other features
| Specification | Value |
|---|---|
| Floppy disk drive connector | Yes |
