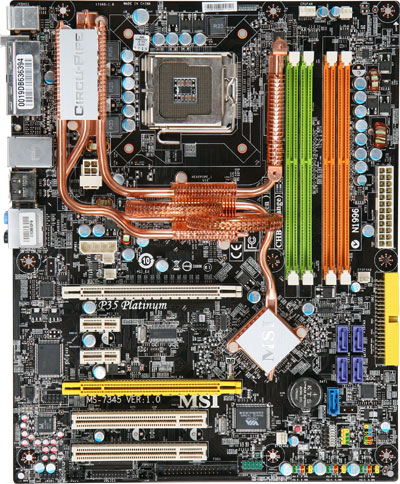

MSI P35 Platinum
Model P35 PlatinumPart no. 7345-010EAN 816909039597
29 specifications
- Processor manufacturerIntel
- Maximum internal memory8 GB
- RAID levels0, 1, 5
- USB 2.0 connectors3
- USB 2.0 ports quantity6
- Motherboard form factorATX
Overview
- Processor manufacturer
- Intel
- Maximum internal memory
- 8 GB
- RAID levels
- 0, 1, 5
- USB 2.0 connectors
- 3
- USB 2.0 ports quantity
- 6
- Motherboard form factor
- ATX
- Brand
- MSI
- Category
- Motherboard
- Model
- P35 Platinum
- Part numbers
- 7345-010, 7345-010R
- EAN / UPC
- 816909039597, 4719072054106
- Also known as
- MSI P35 Platinum LGA 775 (Socket T) ATX
Specifications
29 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
| Processor system buses supported | 1333 MHz |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory | 8 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 5 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| Number of SATA connectors | 5 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Chassis intrusion connector | Yes |
| Number of IEEE1394 connectors | 1 |

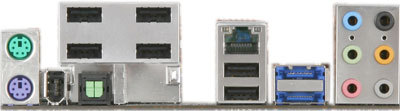

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 6 |
| eSATA ports quantity | 2 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Compatible operating systems | Vista Premium |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 2xPCI-E (x1) 2xPCI |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 245 mm |
