MSI P31 Neo-F V2
Model P31 Neo-F V2Part no. 7392-070REAN 4719072081430
37 specifications
- Memory0 GB
- Processor manufacturerIntel
- Number of memory slots4
- USB 2.0 connectors2
- Networking featuresRealtek 8111C
- Motherboard form factorATX
Overview
- Memory
- 0 GB
- Processor manufacturer
- Intel
- Number of memory slots
- 4
- USB 2.0 connectors
- 2
- Networking features
- Realtek 8111C
- Motherboard form factor
- ATX
- Brand
- MSI
- Category
- Motherboard
- Model
- P31 Neo-F V2
- Part numbers
- 7392-070R, P31 NEO-F V2
- EAN / UPC
- 4719072081430
- Also known as
- MSI P31 Neo-F V2 LGA 775 (Socket T) ATX
Specifications
37 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
| Compatible processor series | Intel® Pentium® 4, Intel® Pentium® D, Intel® Pentium® Extreme Edition |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| Internal memory | 0 GB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 4 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| TPM connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Parallel ports quantity | 1 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking features | Realtek 8111C |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio chip | Realtek ALC888 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Compatible operating systems | Windows Vista |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 1 |
| PCI slots | 1 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 220 mm |
| Depth | 305 mm |
Other features
| Specification | Value |
|---|---|
| Floppy disk drive connector | Yes |
| I/O ports | 1 x IDE |
What people say
Reviews & ratings
MSI P31 Neo-F V2
- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare MSI P31 Neo-F V2
All motherboard comparisons- MSI P31 Neo-F V2 vsMSI K9A2GM-F V3Compare specs
- MSI P31 Neo-F V2 vsMSI P7NSLI-FI motherboard LGA 775 (Socket T) ATXCompare specs
- MSI P31 Neo-F V2 vsMSI K9N6PGM2-V Socket AM2 micro ATXCompare specs
- MSI P31 Neo-F V2 vsMSI P43 Neo3-FRCompare specs

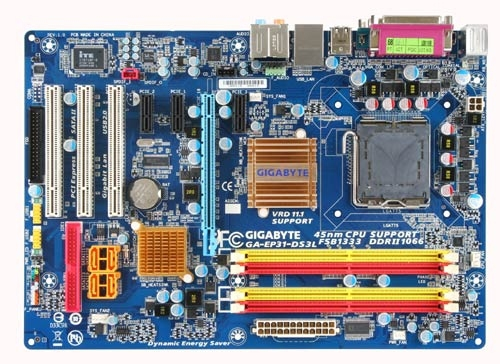

- MSI P31 Neo-F V2 vsGIGABYTE GA-EP31-DS3L motherboard LGA 775 (Socket T) ATXCompare specs

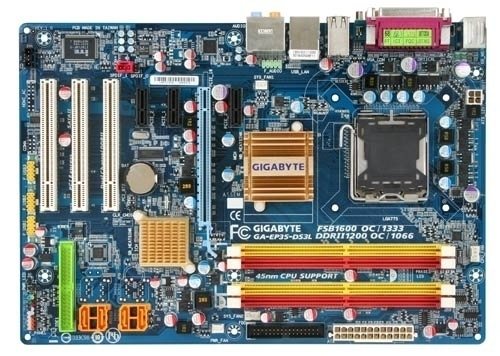

- MSI P31 Neo-F V2 vsGIGABYTE GA-EP35-DS3L motherboard LGA 775 (Socket T) ATXCompare specs
- MSI P31 Neo-F V2 vsASUS M3A78-CM AMDCompare specs

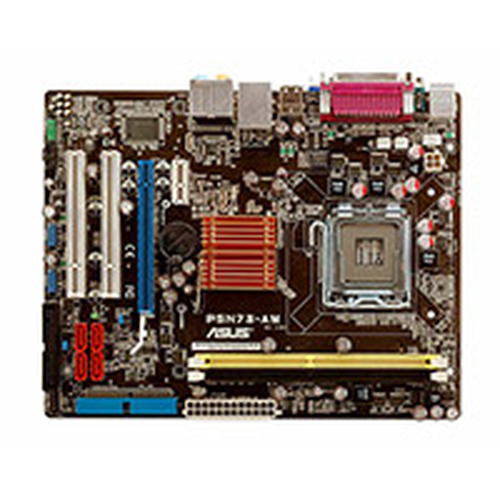

- MSI P31 Neo-F V2 vsASUS P5N73-AM LGA 775 (Socket T) micro ATXCompare specs
