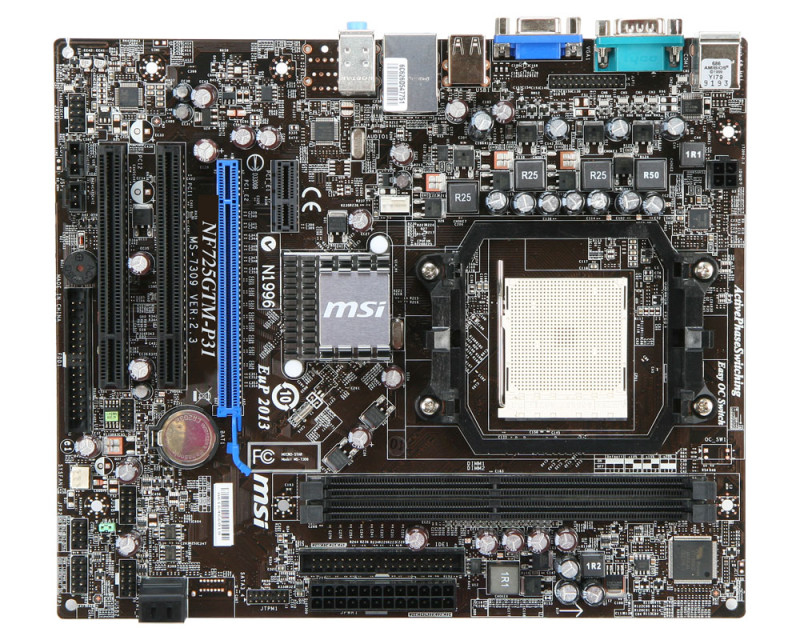

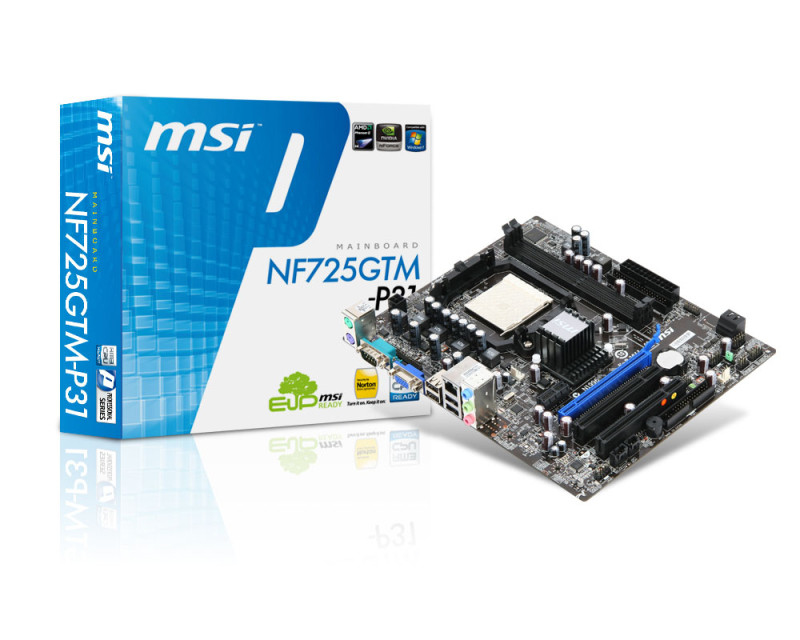

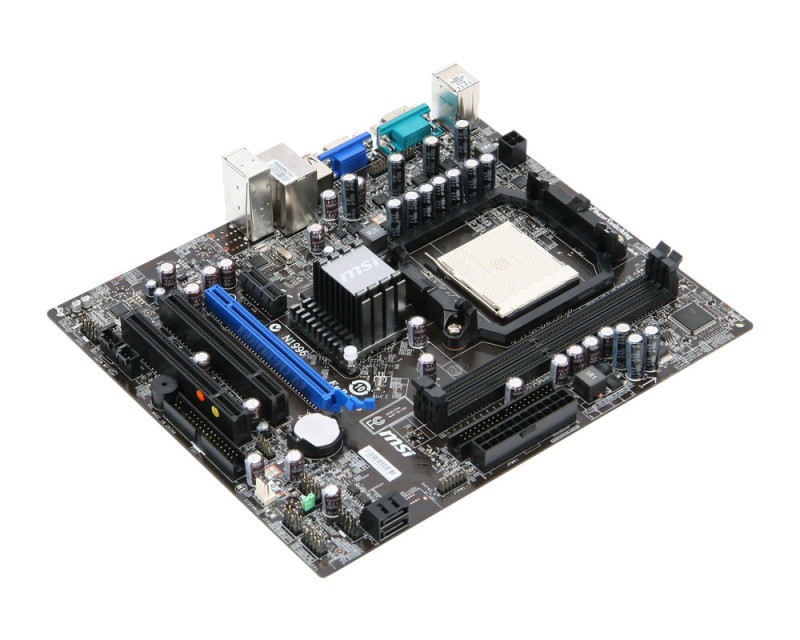

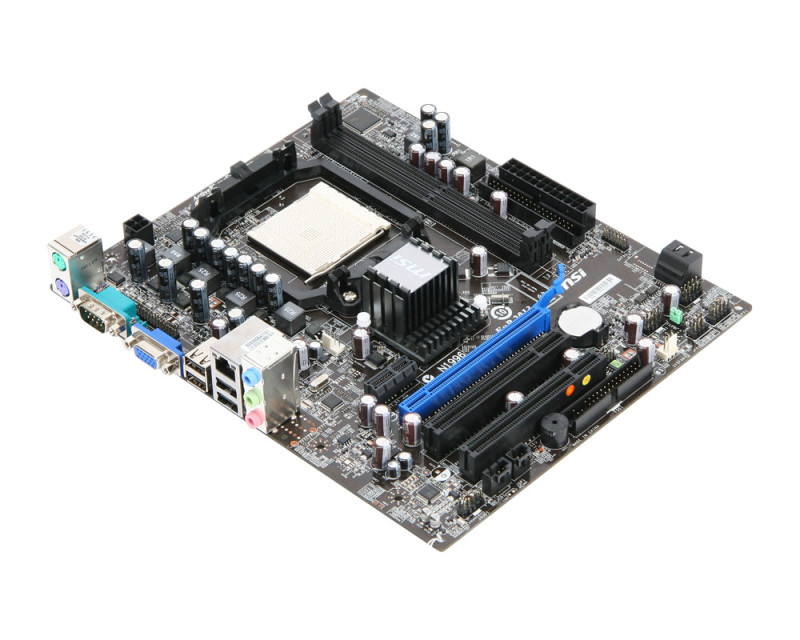

NF725GTM-P31 motherboard NVIDIA nForce 630a Socket AM2+ micro ATX
Model NF725GTM-P31
46 specifications
- Processor manufacturerAMD
- Supported memory typesDDR2-SDRAM
- Supported storage drive interfacesMicro SATA II
- DirectX version9.0
- USB 2.0 connectors2
- USB 2.0 ports quantity4
Overview
- Processor manufacturer
- AMD
- Supported memory types
- DDR2-SDRAM
- Supported storage drive interfaces
- Micro SATA II
- DirectX version
- 9.0
- USB 2.0 connectors
- 2
- USB 2.0 ports quantity
- 4
- Brand
- MSI
- Category
- Motherboard
- Model
- NF725GTM-P31
- Part number
- NF725GTM-P31
- Also known as
- MSI NF725GTM-P31 motherboard NVIDIA nForce 630a Socket AM2+ micro ATX
Specifications
46 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM2+ |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR2-SDRAM |
| Number of memory slots | 2 |
| Supported memory clock speeds | 667,800 MHz |
| Supported memory clock speed (max) | 800 MHz |
| Maximum internal memory | 8 GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | Micro SATA II |
| RAID support | Yes |
| RAID levels | 0, 1 |
Graphics
| Specification | Value |
|---|---|
| DirectX version | 9.0 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA II connectors | 2 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| 12V power connector | Yes |
| Parallel connector | Yes |
| TPM connector | Yes |

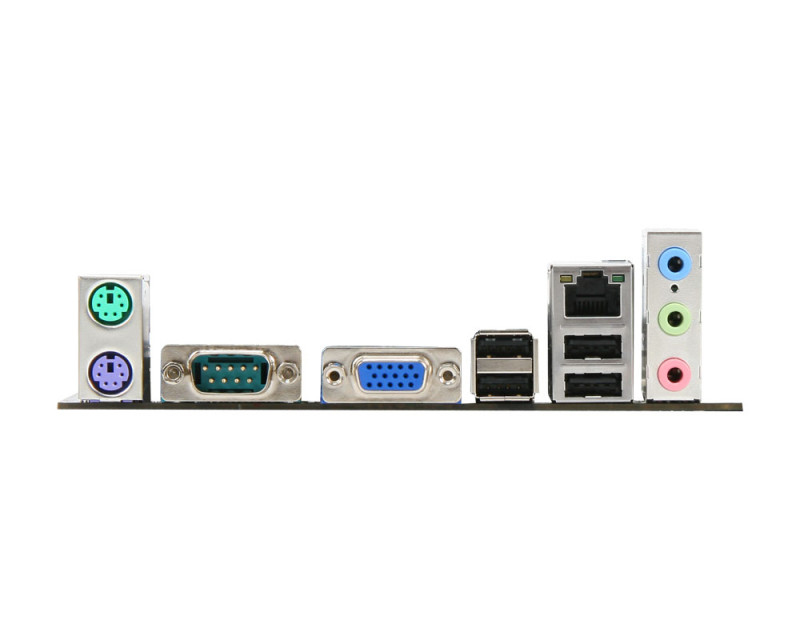

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Digital audio optical out | 1 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| LAN controller | Realtek RTL8103E(L) |
| Wi-Fi | No |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | NVIDIA |
| Motherboard chipset | NVIDIA nForce 630a |
| Audio chip | Realtek ALC888S |
| Audio output channels | 8 channels |
| Number of mounting holes | 6 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 1 |
BIOS
| Specification | Value |
|---|---|
| Clear CMOS jumper | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 200 mm |
| Depth | 244 mm |
