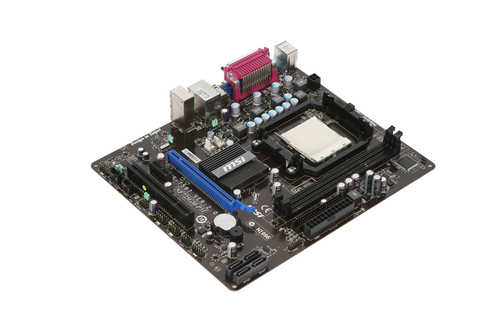

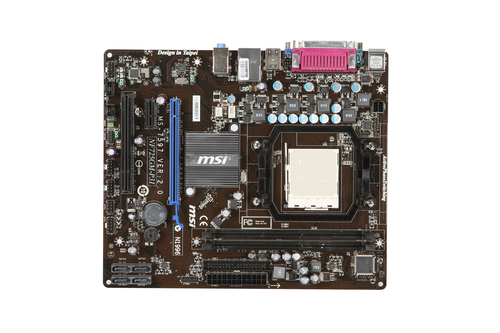

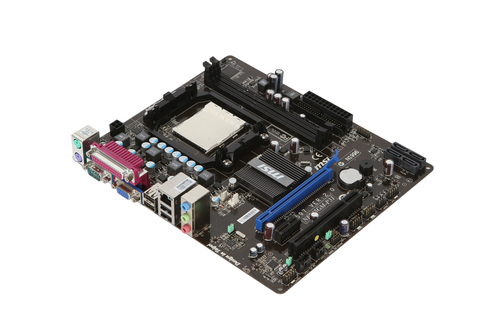

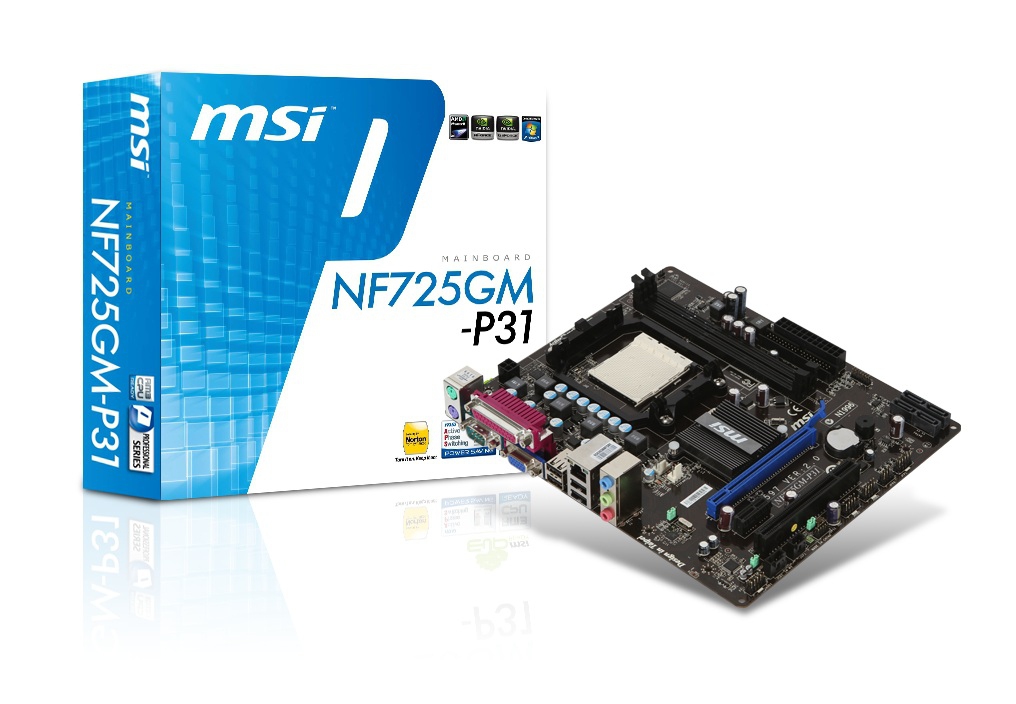

MSI NF725GM-P31 motherboard NVIDIA nForce 630a Socket AM3 micro ATX
Model NF725GM-P31
55 specifications
- Processor manufacturerAMD
- Number of memory slots2
- RAID levels0, 1, 5, 10
- Parallel processing technology supportNot supported
- USB 2.0 ports quantity4
- Ethernet interface typeFast Ethernet
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 2
- RAID levels
- 0, 1, 5, 10
- Parallel processing technology support
- Not supported
- USB 2.0 ports quantity
- 4
- Ethernet interface type
- Fast Ethernet
- Brand
- MSI
- Category
- Motherboard
- Model
- NF725GM-P31
- Part number
- NF725GM-P31
- Also known as
- MSI NF725GM-P31 motherboard NVIDIA nForce 630a Socket AM3 micro ATX
Specifications
55 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM3 |
| Compatible processor series | AMD Phenom II X4 |
| Maximum number of SMP processors | 1 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 2 |
| Memory channels | Dual-channel |
| Memory voltage | 1.5 V |
| Supported memory clock speeds | 800,1066,1333 MHz |
| Maximum internal memory | 16 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | Not supported |
| On-board graphics card | Yes |
| Graphics card family | NVIDIA |
| Graphics card | GeForce 7025 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA II connectors | 4 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Chassis intrusion connector | Yes |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| TPM connector | Yes |

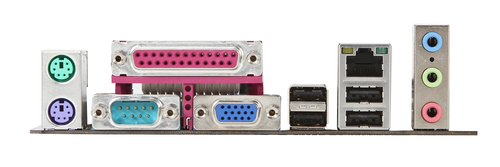

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 2 |
| Microphone in | Yes |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet interface type | Fast Ethernet |
| LAN controller | Realtek RTL8105E |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset | NVIDIA nForce 630a |
| Audio chip | Realtek ALC887 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 1 |
| PCI Express slots version | 1.0 |
| PCI slots | 1 |
BIOS
| Specification | Value |
|---|---|
| Clear CMOS button | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 205 mm |
Packaging content
| Specification | Value |
|---|---|
| Drivers included | Yes |
Other features
| Specification | Value |
|---|---|
| Controller interface type | NVIDIA GeForce 7025 |
What people say
Reviews & ratings
MSI NF725GM-P31 motherboard NVIDIA nForce 630a Socket AM3 micro ATX
No reviews yet
Be the first to tell others how MSI NF725GM-P31 motherboard NVIDIA nForce 630a Socket AM3 micro ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare MSI NF725GM-P31 motherboard NVIDIA nForce 630a Socket AM3 micro ATX
All motherboard comparisons- MSI NF725GM-P31 motherboard NVIDIA nForce 630a Socket AM3 micro ATX vsMSI 870A-G46 motherboard AMD 870 (RX881) Socket AM3 ATXCompare specs
- MSI NF725GM-P31 motherboard NVIDIA nForce 630a Socket AM3 micro ATX vsMSI Z68A-GD55 (B3)Compare specs
- MSI NF725GM-P31 motherboard NVIDIA nForce 630a Socket AM3 micro ATX vsMSI P67A-G43(B3) motherboard Intel® P67 LGA 1155 (Socket H2) ATXCompare specs
- MSI NF725GM-P31 motherboard NVIDIA nForce 630a Socket AM3 micro ATX vsMSI NF725GM-P43 motherboard NVIDIA nForce 630a Socket AM3 micro ATXCompare specs

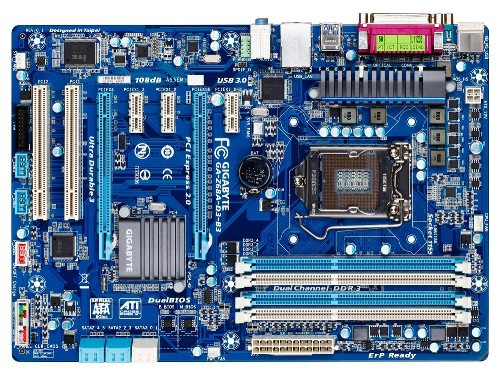

- MSI NF725GM-P31 motherboard NVIDIA nForce 630a Socket AM3 micro ATX vsGIGABYTE Motherboard GA-Z68A-D3-B3 Intel Z68 LGA1155 PCI Express DDR3Compare specs
- MSI NF725GM-P31 motherboard NVIDIA nForce 630a Socket AM3 micro ATX vsASUS Crosshair V FormulaCompare specs

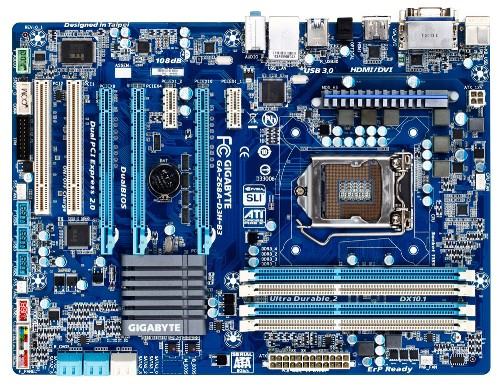

- MSI NF725GM-P31 motherboard NVIDIA nForce 630a Socket AM3 micro ATX vsGIGABYTE GA-Z68A-D3H-B3 motherboard Intel Z68 LGA 1155 (Socket H2) ATXCompare specs

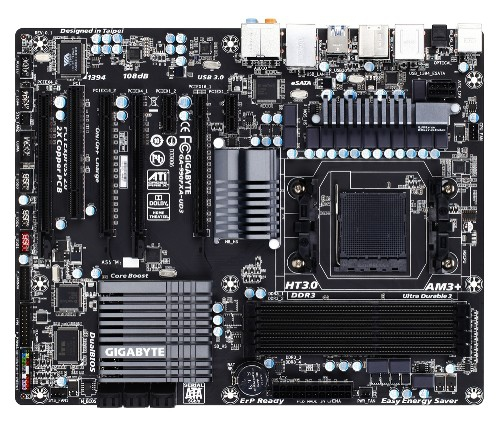

- MSI NF725GM-P31 motherboard NVIDIA nForce 630a Socket AM3 micro ATX vsGIGABYTE GA-990FXA-UD3 motherboard AMD 990FX Socket AM3 ATXCompare specs
