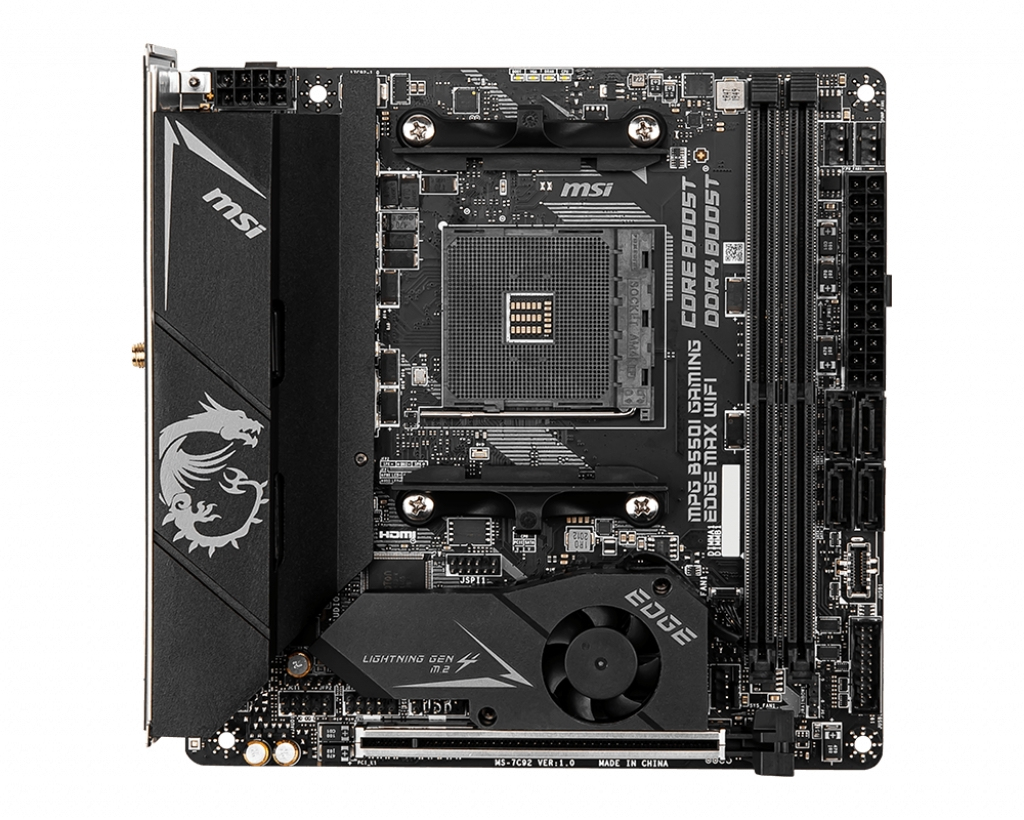

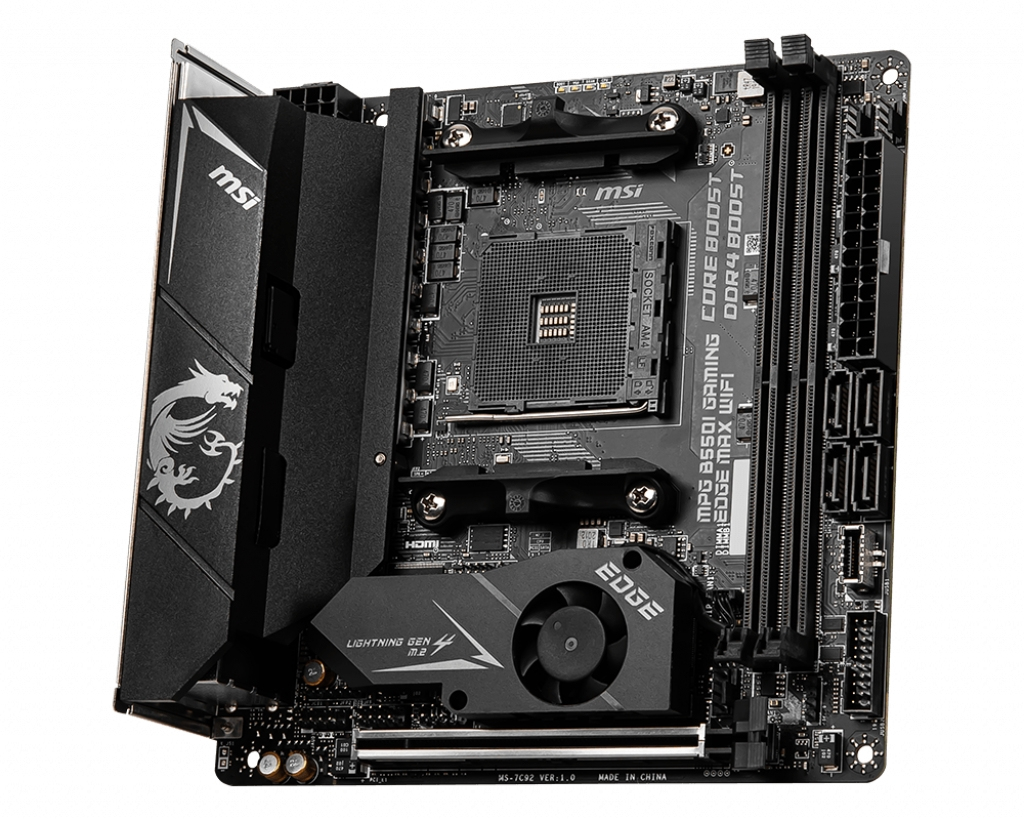

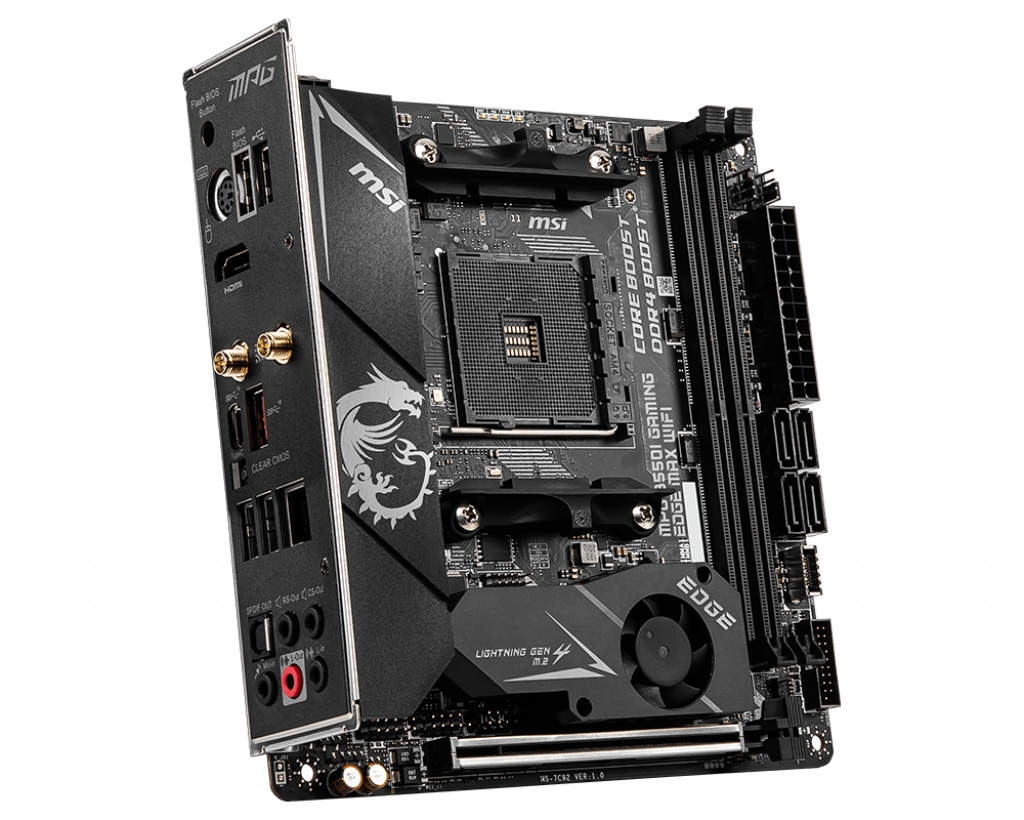

MPG B550I GAMING EDGE MAX WIFI
Model MPG B550I GAMING EDGE MAX WIFIEAN 4719072769215
79 specifications
- SpeedWi-Fi 6 (802.11ax)
- Processor manufacturerAMD
- Supported memory typesDDR4-SDRAM
- Supported storage drive interfacesM.2, SATA III
- Maximum graphics card memory2048 MB
- USB 2.0 connectors1
Overview
- Speed
- Wi-Fi 6 (802.11ax)
- Processor manufacturer
- AMD
- Supported memory types
- DDR4-SDRAM
- Supported storage drive interfaces
- M.2, SATA III
- Maximum graphics card memory
- 2048 MB
- USB 2.0 connectors
- 1
- Brand
- MSI
- Category
- Motherboard
- Model
- MPG B550I GAMING EDGE MAX WIFI
- Part numbers
- MPG B550I GAMING EDGE MAX WIFI, B550IGAMEDGEMAXWIF
- EAN / UPC
- 4719072769215
- Also known as
- MSI MPG B550I GAMING EDGE MAX WIFI motherboard AMD B550 Socket AM4 mini ITX
Specifications
79 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM4 |
| Compatible processor series | AMD Ryzen 3000 Series |
| Supported processor sockets | Socket AM4 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR4-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 1866,2133,2400,2667,2800,2933,3000,3066,3200,3466,3600,3733,3800,4000,4133,4266,4400,4466,4533,4600 MHz |
| Maximum internal memory | 64 GB |
| Unbuffered memory | Yes |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | M.2, SATA III |
| Number of storage drives supported | 6 |
| RAID levels | 0, 1, 10 |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 2048 MB |
| Parallel processing technology support | Not supported |
| Maximum resolution | 4096 x 2160 pixels |
| DirectX version | 12.0 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 0 |
| Number of SATA III connectors | 4 |
| Number of SATA II connectors | 0 |
| Number of Parallel ATA connectors | 0 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| EPS power connector (8-pin) | Yes |
| RGB LED pin header | Yes |

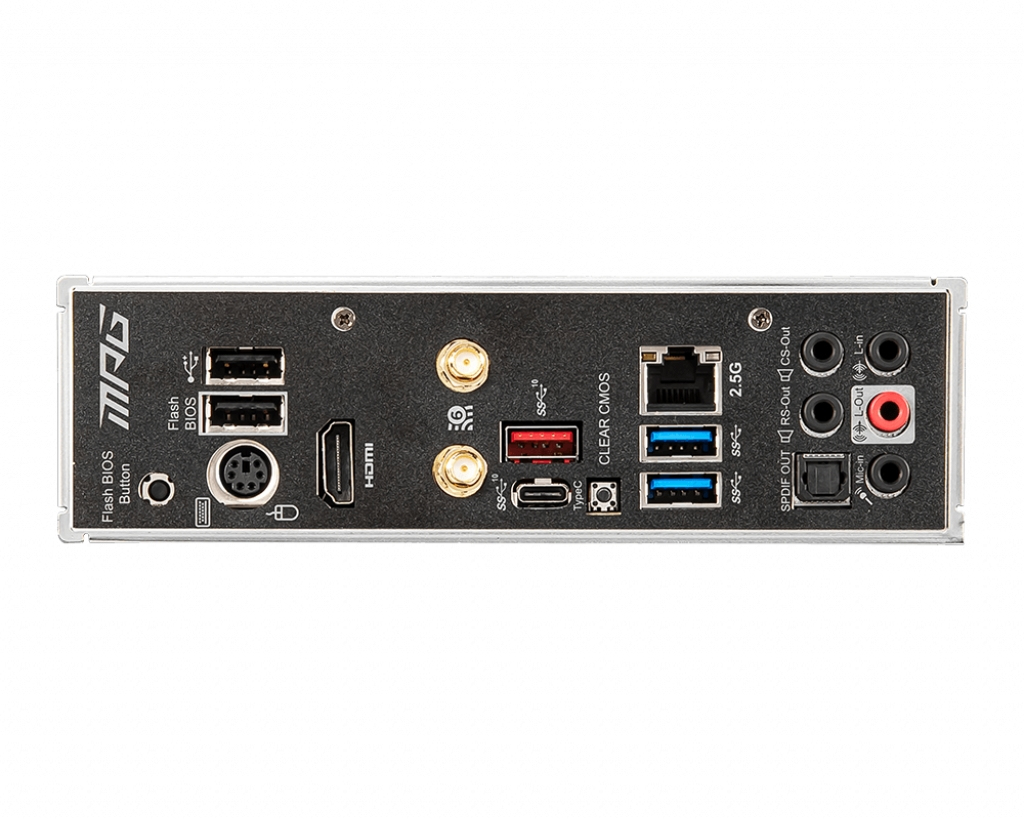

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 1 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 4 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| WiFi-AP antenna jack | 1 |
| USB connector type | USB Type-A, USB Type-C |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| LAN controller | Realtek RTL8125B |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| WLAN controller model | Intel Wi-Fi 6 AX200 |
| Bluetooth | Yes |
| Bluetooth version | 5.1 |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | mini ITX |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B550 |
| Audio chip | Realtek ALC1200 |
| Audio output channels | 7.1 channels |
| PC health monitoring | Fan, Temperature |
| Windows operating systems supported | Windows 10 x64 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 slots | 1 |
| Number of M.2 (M) slots | 2 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| ACPI version | 6.0 |
| Clear CMOS jumper | Yes |
| Clear CMOS button | Yes |
| System Management BIOS (SMBIOS) version | 2.8 |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 84733020 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 170 mm |
| Depth | 170 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | SATA |
| Drivers included | Yes |
