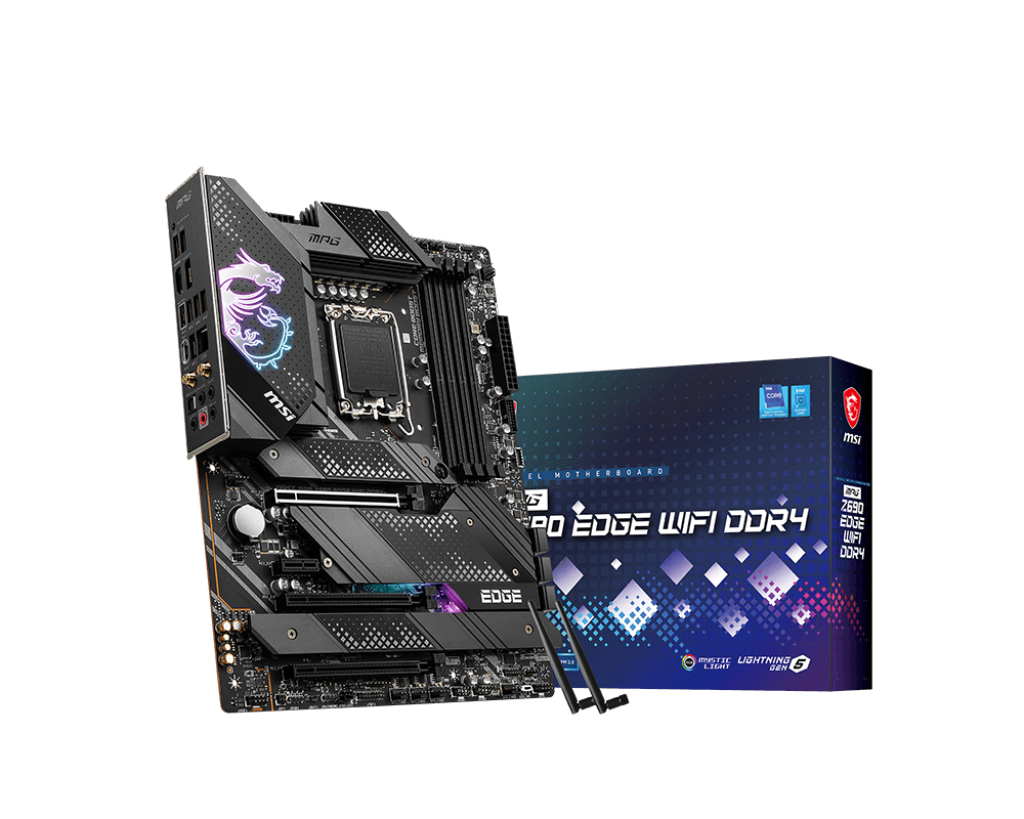

MSI MK MPG Z690 EDGE WIFI DDR4

MSI MK MPG Z690 EDGE WIFI DDR4

Model MK MPG Z690 EDGE WIFI DDR4Part no. Z690EDGEWID4EAN 824142270349

56 specifications
  • SpeedWi-Fi 6 (802.11ax)
  • ColourBlack
  • Processor manufacturerIntel
  • Supported memory typesDDR4-SDRAM
  • Supported storage drive typesHDD & SSD
  • DirectX version12.0
See all specifications

Overview

Speed
Wi-Fi 6 (802.11ax)
Colour
Black
Processor manufacturer
Intel
Supported memory types
DDR4-SDRAM
Supported storage drive types
HDD & SSD
DirectX version
12.0
Brand
MSI
Category
Motherboard
Model
MK MPG Z690 EDGE WIFI DDR4
Part number
Z690EDGEWID4
EAN / UPC
824142270349
Also known as
MSI MK MPG Z690 EDGE WIFI DDR4 Intel Z690 LGA 1700 ATX

Specifications

56 specifications in 11 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1700
Compatible processor seriesIntel® Celeron®, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Supported processor socketsLGA 1700

Memory

Supported memory typesDDR4-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
Supported memory clock speeds2133,2666,2933,3200,4400,4600,4800,5200 MHz
Maximum internal memory128 GB

Storage controllers

Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2, SATA III
RAID supportYes
RAID levels0, 1, 5, 10

Graphics

DirectX version12.0

Internal I/O

USB 2.0 connectors4
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
USB 3.2 Gen 2 (3.1 Gen 2) connectors0
Number of SATA III connectors6
Total number of SATA connectors6
Front panel audio connectorYes

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity5
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0
USB 3.2 Gen 2x2 Type-C ports quantity1
Ethernet LAN (RJ-45) ports1
VGA (D-Sub) ports quantity0
HDMI ports quantity1
HDMI version2.1
DVI-D ports quantity0
DisplayPorts quantity1
DisplayPort version1.4
S/PDIF out portYes
Digital audio optical out1

Network

Ethernet LANYes
Ethernet interface type2.5 Gigabit Ethernet
LAN controllerIntel I225-V
Wi-FiYes
Top Wi-Fi standardWi-Fi 6 (802.11ax)
Bluetooth version5.2

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyIntel
Motherboard chipsetIntel Z690
Audio chipRealtek ALC4080
Audio output channels7.1 channels
Product colourBlack
Windows operating systems supportedWindows 10 x64, Windows 11 x64

Expansion slots

PCI Express x1 slots1
PCI Express x16 slots3
Number of M.2 (M) slots4

BIOS

BIOS typeUEFI AMI

Weight & dimensions

Width305 mm
Depth244 mm
