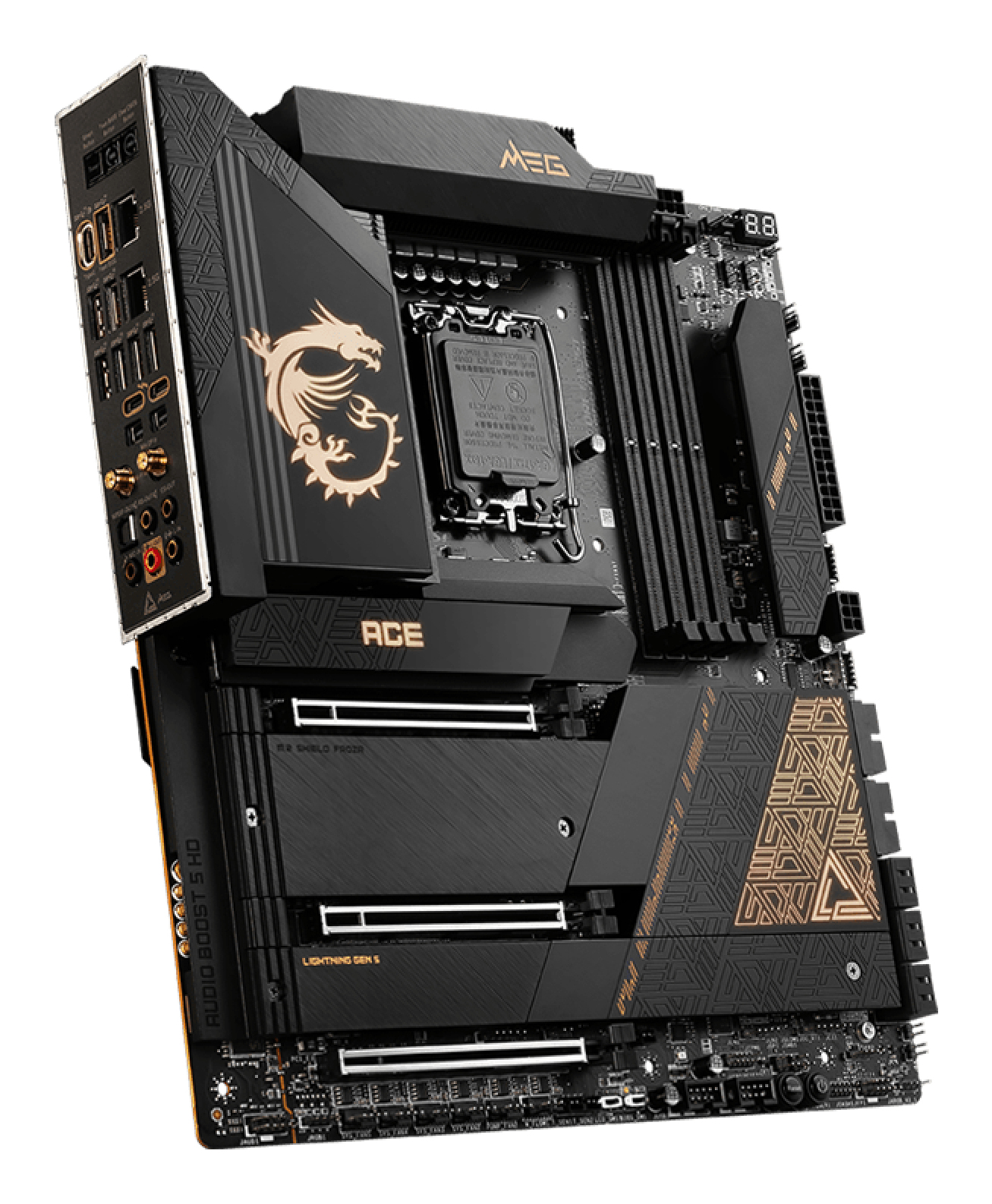

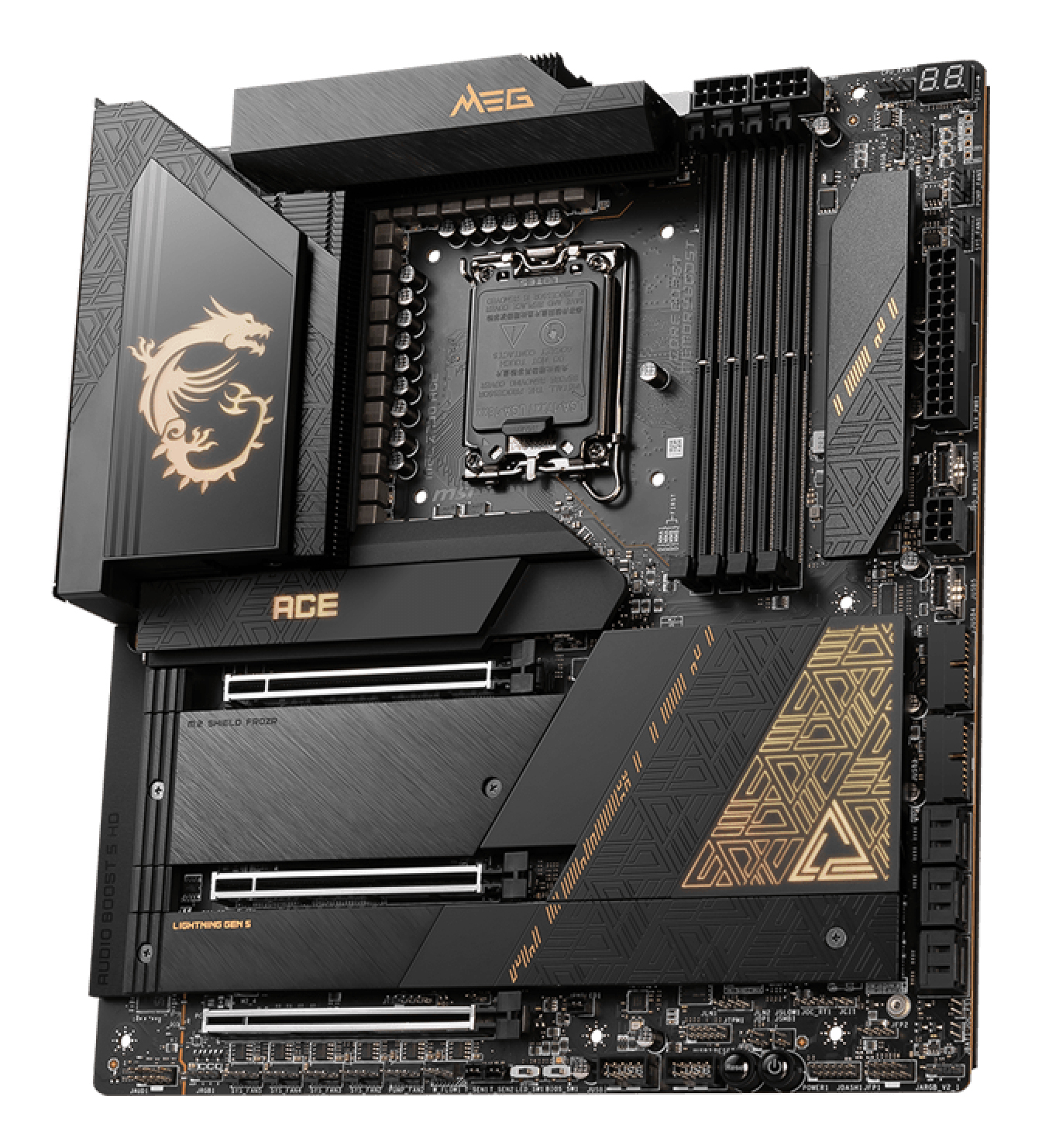

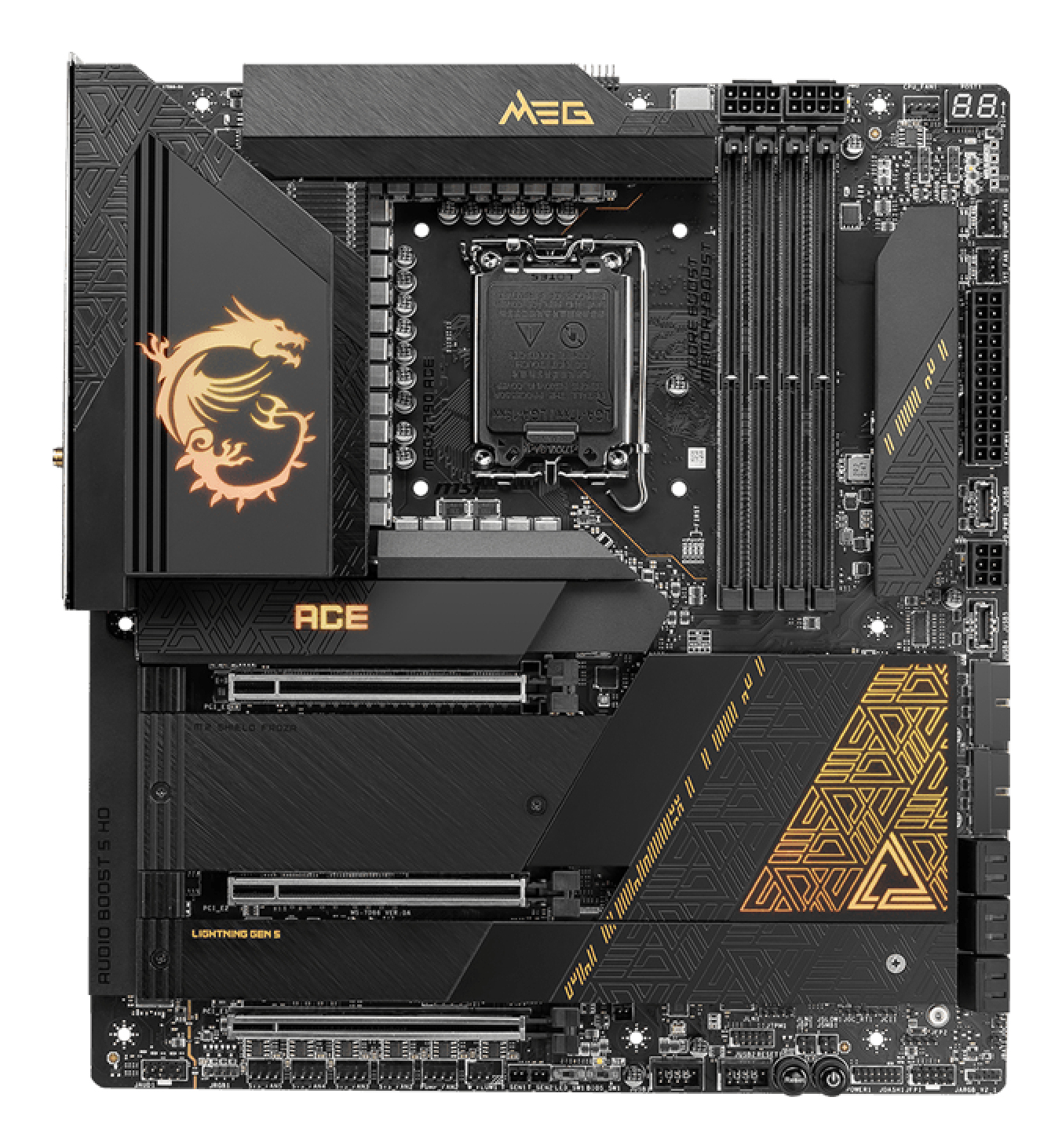

MEG Z790 ACE
Model MEG Z790 ACEEAN 4711377025546
63 specifications
- Storage10 GB
- SpeedWi-Fi 6 (802.11ax)
- ColourBlack
- Processor manufacturerIntel
- Supported memory typesDDR5-SDRAM
- Supported storage drive typesHDD & SSD
Overview
- Storage
- 10 GB
- Speed
- Wi-Fi 6 (802.11ax)
- Colour
- Black
- Processor manufacturer
- Intel
- Supported memory types
- DDR5-SDRAM
- Supported storage drive types
- HDD & SSD
- Brand
- MSI
- Category
- Motherboard
- Model
- MEG Z790 ACE
- Part numbers
- MEG Z790 ACE, Z790ACE
- EAN / UPC
- 4711377025546, 824142305744
- Also known as
- MSI MEG Z790 ACE motherboard Intel Z790 LGA 1700 Extended ATX
Specifications
63 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1700 |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® Gold |
| Supported processor sockets | LGA 1700 |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 4800,5000,5200,5400,5600,6000,6200,6400,6600,6800,7000,7200,7400,7600,7800 MHz |
| Maximum internal memory | 128 GB |
| Unbuffered memory | Yes |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, PCI Express |
| Internal storage capacity | 10 GB |
| RAID levels | 0, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | Not supported |
| On-board graphics card | No |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 2 |
| Number of SATA III connectors | 6 |
| Number of SATA II connectors | 0 |
| Number of SATA connectors | 0 |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| TPM connector | Yes |
| RGB LED pin header | Yes |

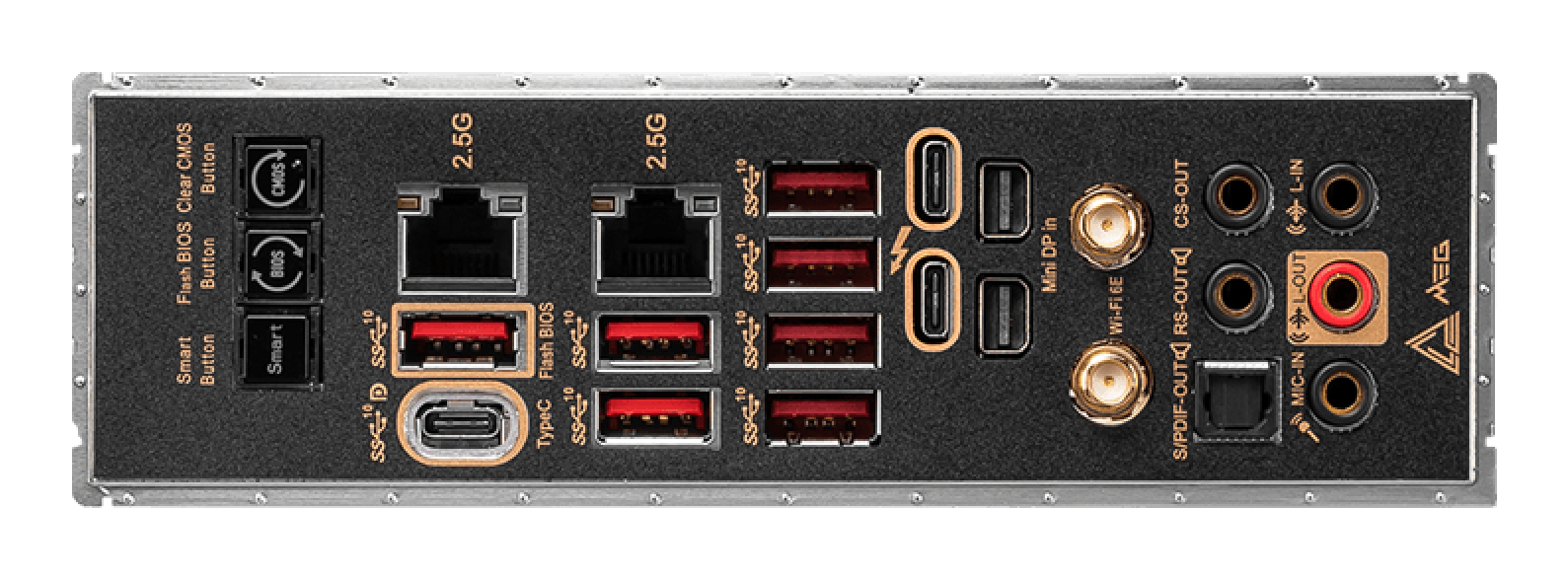

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 7 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| S/PDIF out port | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Bluetooth | Yes |
| Bluetooth version | 5.3 |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | Extended ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel Z790 |
| Audio output channels | 7.1 channels |
| Product colour | Black |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 slots | 3 |
| Number of M.2 (M) slots | 4 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 304.8 mm |
| Depth | 277 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | SATA |
Other features
| Specification | Value |
|---|---|
| mSATA ports quantity | 0 |
