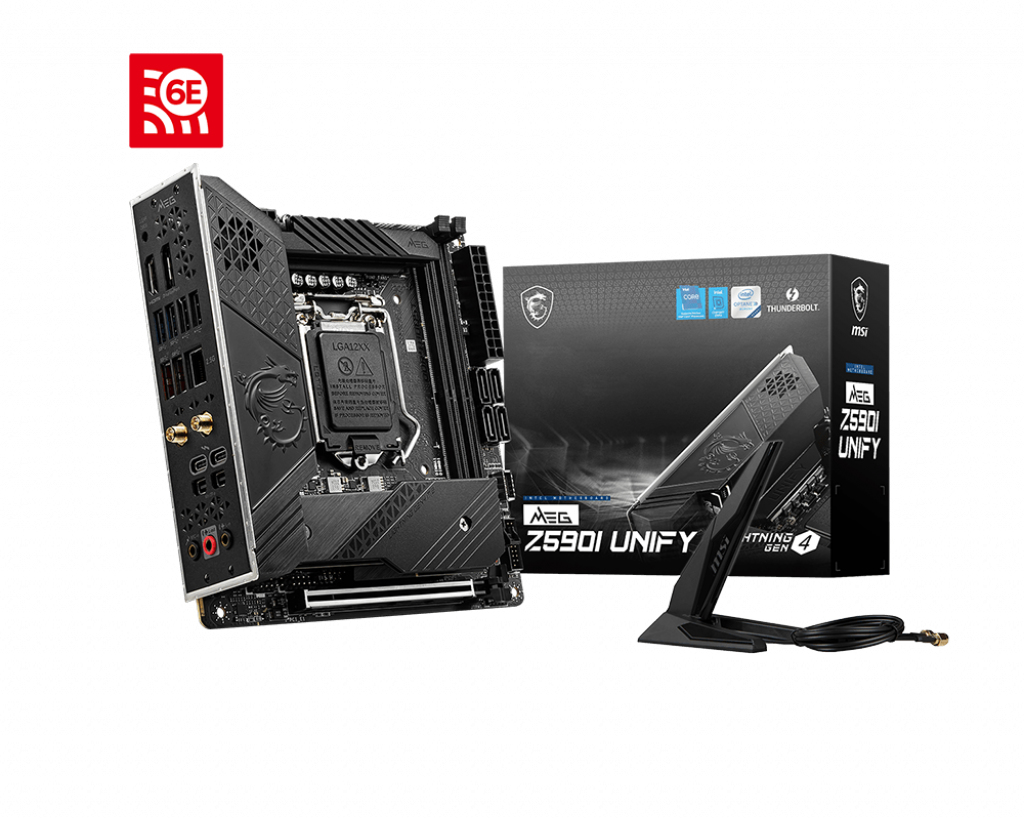

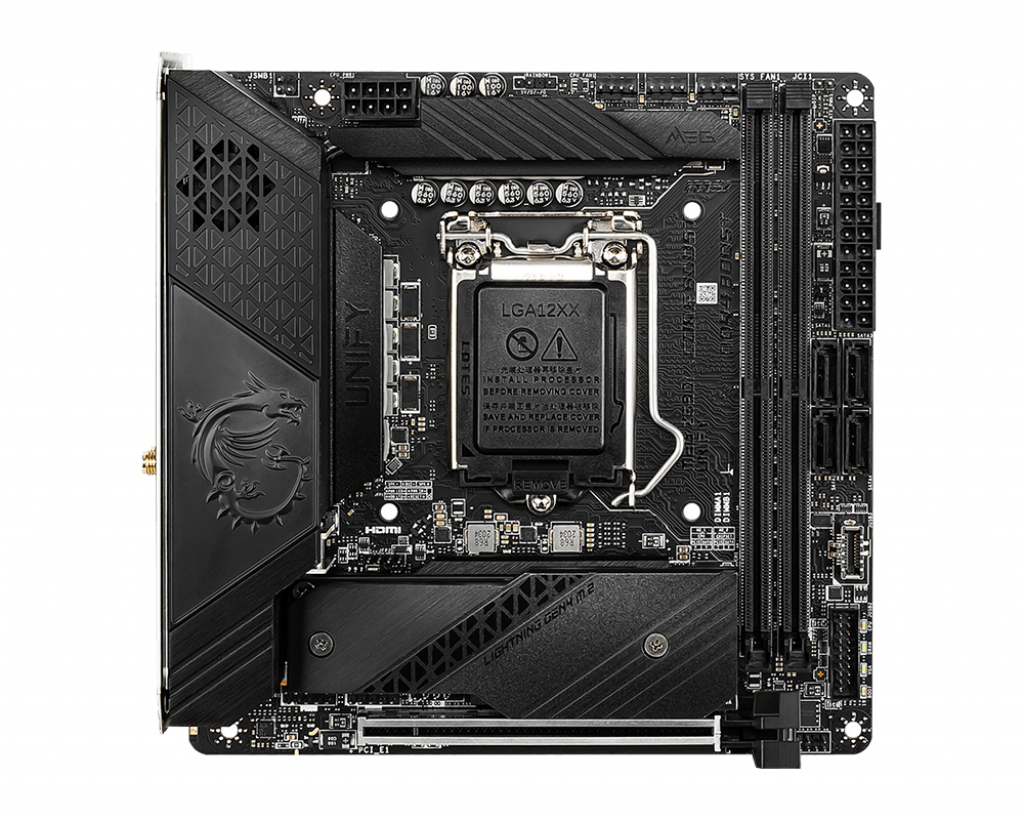

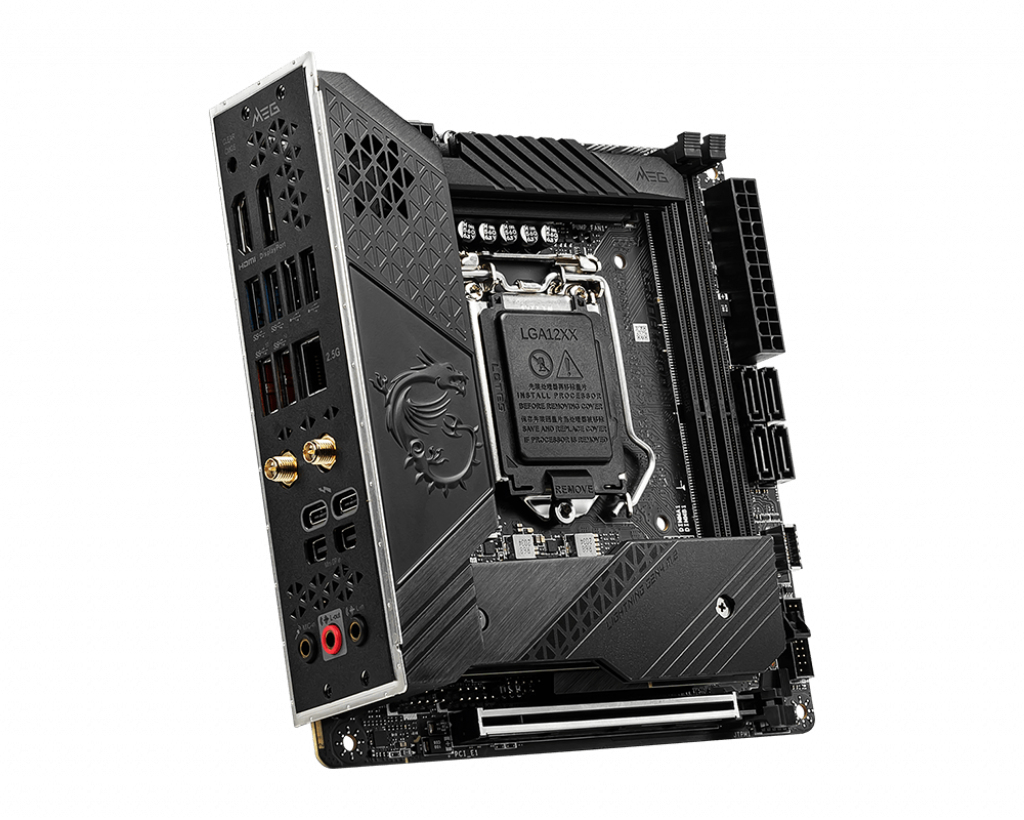

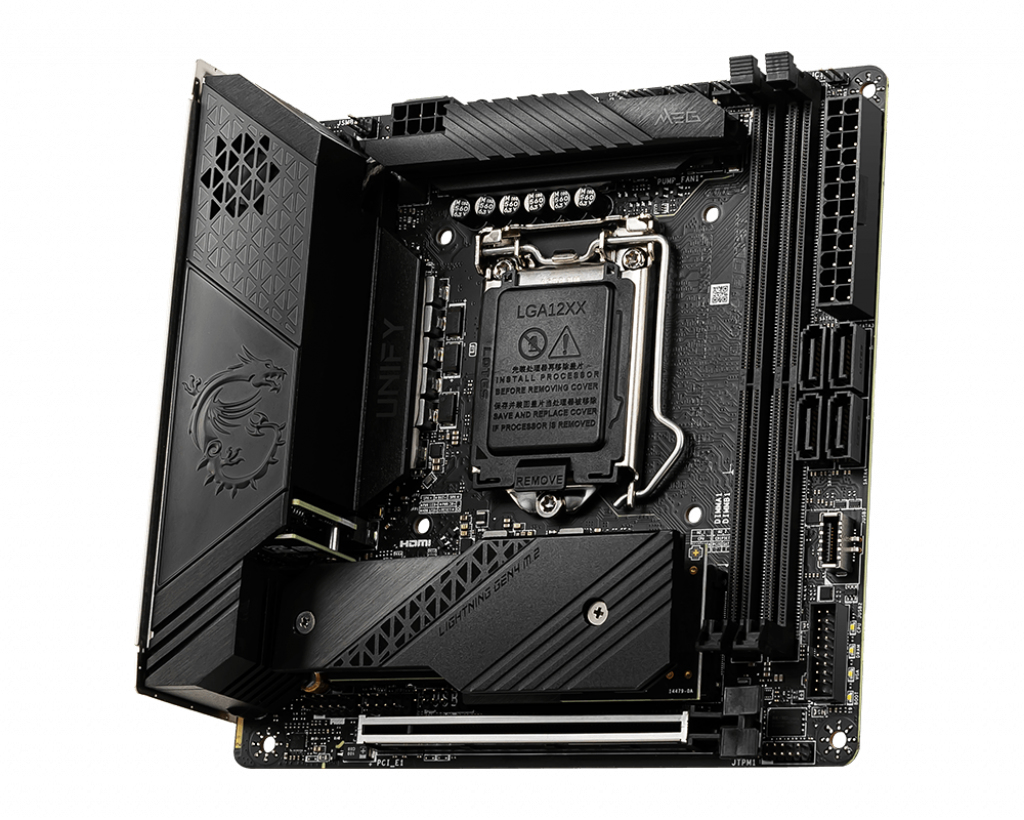

MEG Z590I UNIFY

Model MEG Z590I UNIFYEAN 4719072802837

83 specifications

Overview

Brand: MSI
Category: Motherboard
Model: MEG Z590I UNIFY
Part numbers: MEG Z590I UNIFY, 601-7D05-010
EAN / UPC: 4719072802837
Also known as: MSI MEG Z590I UNIFY motherboard Intel Z590 LGA 1200 (Socket H5) mini ITX

83 specifications in 13 groups

Specification	Value
Processor manufacturer	Intel
Processor socket	LGA 1200 (Socket H5)
Compatible processor series	Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel Pentium G
Supported processor sockets	LGA 1200 (Socket H5)

Specification	Value
Supported memory types	DDR4-SDRAM
Number of memory slots	2
Memory slots type	DIMM
Memory channels	Dual-channel
ECC сompatibility	Non-ECC
Supported memory clock speeds	2133,2666,2933,3200 MHz
Maximum internal memory	64 GB
Unbuffered memory	Yes

Specification	Value
Supported storage drive types	HDD & SSD
Supported storage drive interfaces	M.2, SATA III
Number of storage drives supported	6
RAID levels	0, 1, 5, 10

Specification	Value
Parallel processing technology support	Not supported
Maximum resolution	3840 x 2160 pixels

Specification	Value
USB 2.0 connectors	1
USB 3.2 Gen 1 (3.1 Gen 1) connectors	1
USB 3.2 Gen 2 (3.1 Gen 2) connectors	1
Number of SATA III connectors	4
Number of SATA II connectors	0
Number of Parallel ATA connectors	0
Front panel audio connector	Yes
ATX Power connector (24-pin)	Yes
CPU fan connector	Yes
Chassis intrusion connector	Yes
Peripheral (Molex) power connectors (4-pin)	3
EPS power connector (8-pin)	Yes
12V power connector	Yes
TPM connector	Yes
RGB LED pin header	Yes

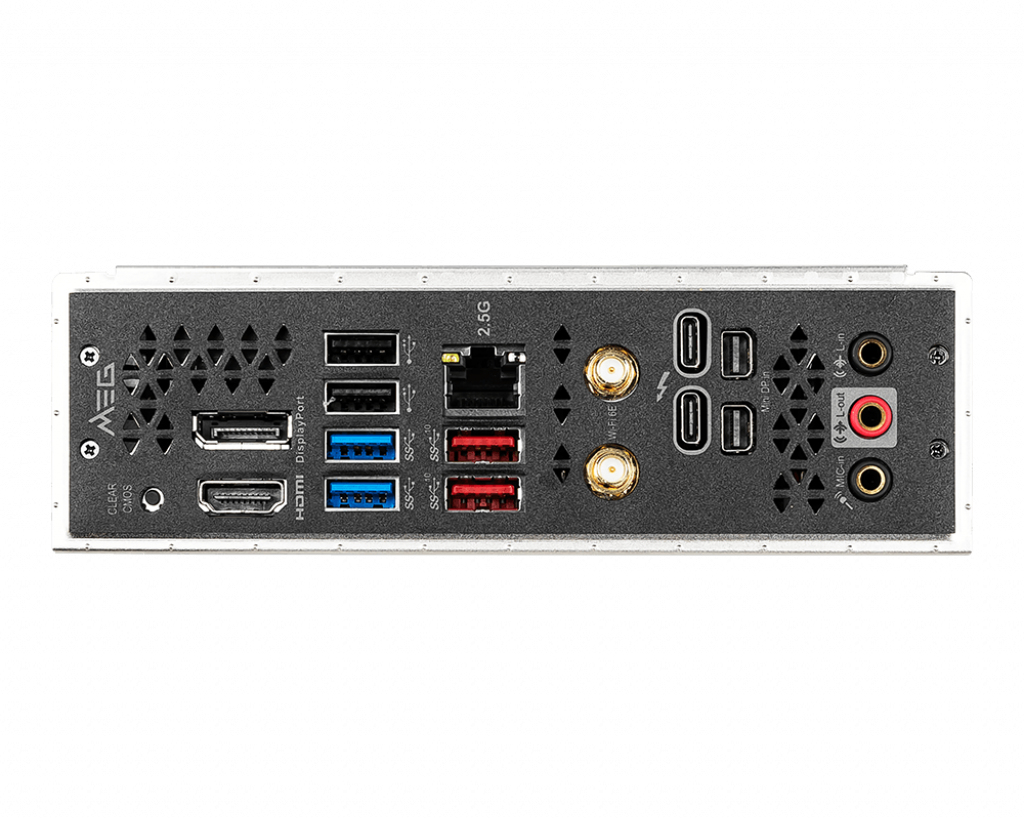

Specification	Value
USB 2.0 ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity	0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity	2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity	0
Ethernet LAN (RJ-45) ports	1
eSATA ports quantity	0
PS/2 ports quantity	0
Firewire (IEEE 1394) ports	0
VGA (D-Sub) ports quantity	0
HDMI ports quantity	1
HDMI version	2.0b
DVI-D ports quantity	0
DisplayPorts quantity	2
DisplayPort version	1.4
Headphone outputs	2
Microphone in	Yes
Thunderbolt ports quantity	2
WiFi-AP antenna jack	2
USB connector type	USB Type-A, USB Type-C

Specification	Value
Component for	PC
Motherboard form factor	mini ITX
Motherboard chipset family	Intel
Motherboard chipset	Intel Z590
Audio chip	Realtek ALC1220P
Audio output channels	7.1 channels
PC health monitoring	Fan, Temperature
Number of mounting holes	4
Windows operating systems supported	Windows 10 x64
