MSI MEG X399 CREATION

MSI MEG X399 CREATION

Model MEG X399 CREATIONPart no. 7B92-001REAN 4719072590024

72 specifications
  • Processor manufacturerAMD
  • Supported memory typesDDR4-SDRAM
  • RAID levels0, 1, 10
  • Parallel processing technology support3-Way CrossFireX, 3-Way SLI
  • USB 2.0 connectors6
  • USB 2.0 ports quantity0
See all specifications

Overview

Processor manufacturer
AMD
Supported memory types
DDR4-SDRAM
RAID levels
0, 1, 10
Parallel processing technology support
3-Way CrossFireX, 3-Way SLI
USB 2.0 connectors
6
USB 2.0 ports quantity
0
Brand
MSI
Category
Motherboard
Model
MEG X399 CREATION
Part numbers
7B92-001R, 911-7B92-007
EAN / UPC
4719072590024
Also known as
MSI MEG X399 CREATION AMD X399 Socket TR4 Extended ATX

Specifications

72 specifications in 13 groups

Processor

Processor manufacturerAMD
Processor socketSocket TR4
Compatible processor seriesAMD Ryzen Threadripper 1000 Series, AMD Ryzen Threadripper 2000 Series
Maximum number of SMP processors1

Memory

Supported memory typesDDR4-SDRAM
Number of memory slots8
Memory slots typeDIMM
Memory channelsQuad-channel
ECC сompatibilityECC
Supported memory clock speeds2133,2400,2667,2667,2800,2933,3066,3200,3333,3466,3600 MHz
Maximum internal memory128 GB

Storage controllers

RAID levels0, 1, 10

Graphics

Parallel processing technology support3-Way CrossFireX, 3-Way SLI

Internal I/O

USB 2.0 connectors6
USB 3.2 Gen 1 (3.1 Gen 1) connectors6
USB 3.2 Gen 2 (3.1 Gen 2) connectors0
Number of SATA III connectors8
Number of SATA II connectors0
Number of Parallel ATA connectors0
Front panel audio connectorYes
Front panel connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors8
EPS power connector (8-pin)Yes
12V power connectorYes
TPM connectorYes
RGB LED pin headerYes

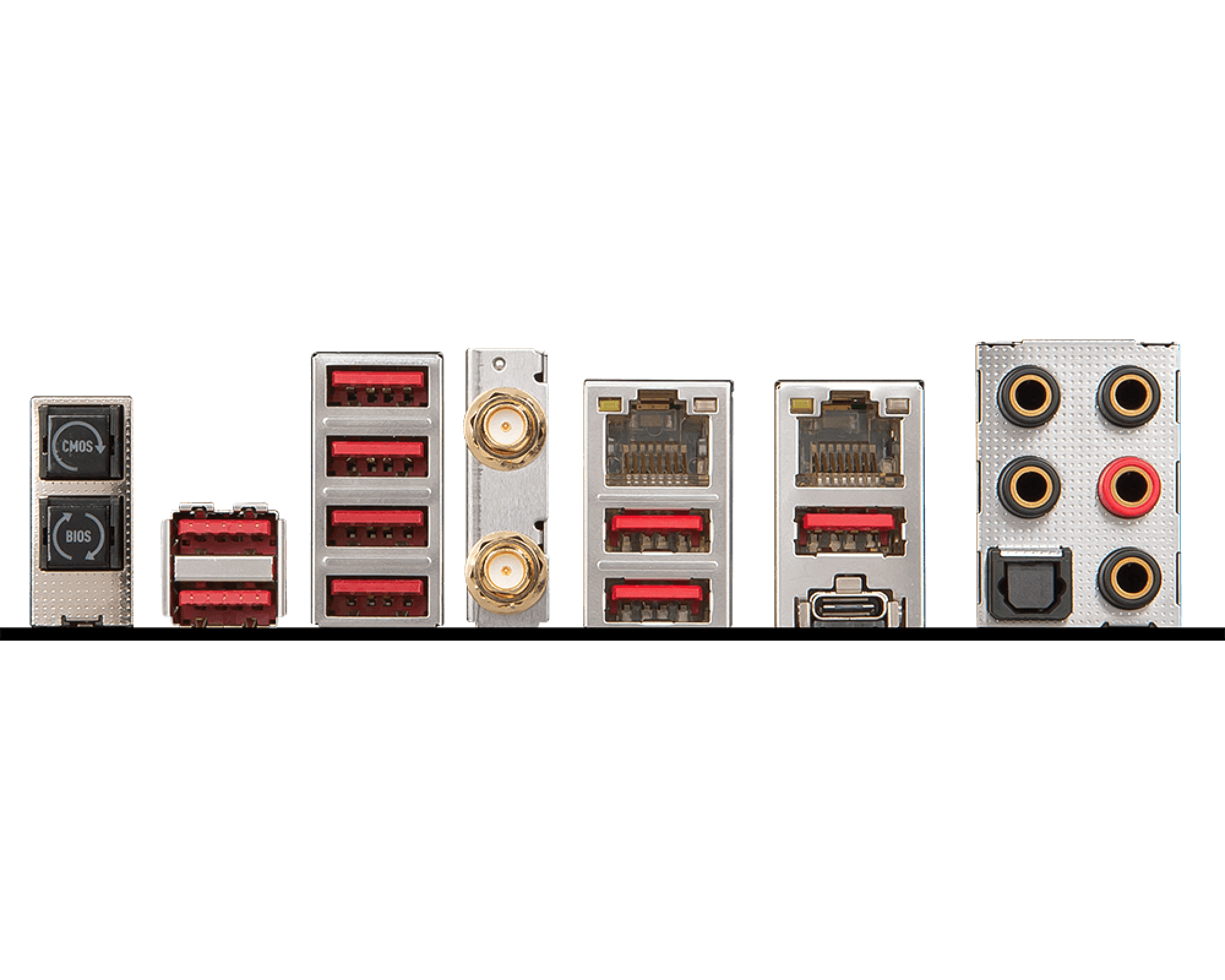

Rear panel I/O ports

USB 2.0 ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity9
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0
Ethernet LAN (RJ-45) ports2
eSATA ports quantity0
PS/2 ports quantity0
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity0
HDMI ports quantity0
DVI-D ports quantity0
Headphone outputs1
Microphone inYes
S/PDIF out portYes

Network

Ethernet LANYes
Ethernet interface typeFast Ethernet, Gigabit Ethernet
LAN controllerIntel® I211-AT
Wi-FiYes
Wi-Fi standardsWi-Fi 5 (802.11ac)
BluetoothYes
Bluetooth version5.0

Features

Component forPC
Motherboard form factorExtended ATX
Motherboard chipset familyAMD
Motherboard chipsetAMD X399
Audio chipRealtek ALC1220
Audio output channels7.1 channels
Number of mounting holes9
Windows operating systems supportedWindows 10, Windows 10 Pro x64

Expansion slots

PCI Express x1 (Gen 2.x) slots1
PCI Express x8 (Gen 3.x) slots2
PCI Express x16 (Gen 3.x) slots2
Number of M.2 (M) slots3

BIOS

Clear CMOS jumperYes

Weight & dimensions

Width304 mm
Depth272 mm

Packaging content

Cables includedSATA
ManualYes
Drivers includedYes

Other features

Analog audio output3
Back-to-BIOS buttonYes
Quick installation guideYes
Utilities includedYes
