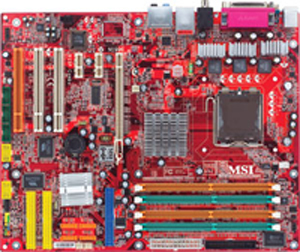

MB MSI INTEL S775 915G COMBO FR ATX
Model MB MSI INTEL S775 915G COMBO FR ATXPart no. 915G COMBO FR
13 specifications
- Processor manufacturerIntel
- Maximum internal memory2 GB
- Maximum graphics card memory224 MB
- Motherboard form factorATX
Overview
- Processor manufacturer
- Intel
- Maximum internal memory
- 2 GB
- Maximum graphics card memory
- 224 MB
- Motherboard form factor
- ATX
- Brand
- MSI
- Category
- Motherboard
- Model
- MB MSI INTEL S775 915G COMBO FR ATX
- Part number
- 915G COMBO FR
- Also known as
- MSI MB INTEL S775 915G COMBO FR ATX LGA 775 (Socket T)
Specifications
13 specifications in 7 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
| Processor system buses supported | 800 MHz |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory | 2 GB |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 224 MB |
Network
| Specification | Value |
|---|---|
| Networking features | Realtek 8110S Integrated Fast Ethernet MAC and PHY in one chip.Supports 10Mb/s, 100Mb/s, 1000Mb/s |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1 PCI-E 16X; 2 PCI-E 1X; 3 PCI; 8 USB |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 305 x 245 |
| Audio output | 8-channel audio codec C-Media 9880L |
| Graphics controller | Intel Graphic Media Accelerator 900 |
| I/O ports | • 1 floppy port supports 1 FDD with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes • 1 Serial port (COM A) • 1 VGA port • 1 parallel port supports SPP/EPP/ECP mode • 8 USB 2.0 ports (Rear x 4/** Front x 4)(** Frotn USB ports are supported by pin-out) • 1 Line-In/Line-Out/Mic-In/RS Out/CS Out/SPDIF Out-Optic |
