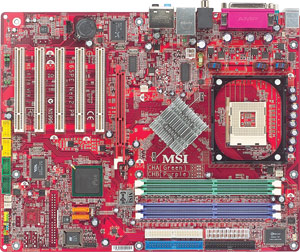

MSI MB MSI INTEL S478 865PE NEO2-PFISR ATX
Model MB MSI INTEL S478 865PE NEO2-PFISR ATXPart no. 865PE-NEO2PFIRS
10 specifications
- Processor manufacturerIntel
- Maximum internal memory4 GB
- Motherboard form factorATX
- Expansion slots1 AGP 8X; 5 PCI; 8 USB
Overview
- Processor manufacturer
- Intel
- Maximum internal memory
- 4 GB
- Motherboard form factor
- ATX
- Expansion slots
- 1 AGP 8X; 5 PCI; 8 USB
- Brand
- MSI
- Category
- Motherboard
- Model
- MB MSI INTEL S478 865PE NEO2-PFISR ATX
- Part number
- 865PE-NEO2PFIRS
- Also known as
- MSI MB INTEL S478 865PE NEO2-PFISR ATX Socket 478
Specifications
10 specifications in 6 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | Socket 478 |
| Processor system buses supported | 533,800 MHz |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory | 4 GB |
Network
| Specification | Value |
|---|---|
| Networking features | Realtek 8110S Integrated Fast Ethernet MAC and PHY in one chipSupports 10Mb/s, 100Mb/s and 1000Mb/s |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1 AGP 8X; 5 PCI; 8 USB |
Other features
| Specification | Value |
|---|---|
| Audio output | 6 Channels software audio codec Realtek ALC655 |
| I/O ports | - 1 floppy port supports 1 FDD with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes - 1 serial port COM A - 1 parallel port supports SPP/EPP/ECP mode - 8 USB 2.0 ports (Rear x 6 / **Front x 2) (**Front USB ports are supported by pin-out) - 1 Line-In/Line-Out/Mic-In port/SPDIF Out - 1 LAN RJ45 connector - 2 I |
