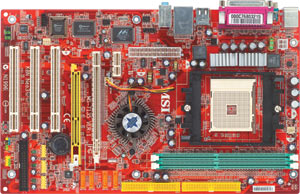

MSI MB MSI AMD S754 K8N NEO3-F ATX
Model MB MSI AMD S754 K8N NEO3-F ATXPart no. K8N NEO3-F
9 specifications
- Processor manufacturerAMD
- Maximum internal memory2 GB
- Motherboard form factorATX
Overview
- Processor manufacturer
- AMD
- Maximum internal memory
- 2 GB
- Motherboard form factor
- ATX
- Brand
- MSI
- Category
- Motherboard
- Model
- MB MSI AMD S754 K8N NEO3-F ATX
- Part number
- K8N NEO3-F
- Also known as
- MSI MB AMD S754 K8N NEO3-F ATX Socket 754
Specifications
9 specifications in 6 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket 754 |
Memory
| Specification | Value |
|---|---|
| Maximum internal memory | 2 GB |
Network
| Specification | Value |
|---|---|
| Networking features | Marvell PHY 88E1111 Gigabit Ethernet chip |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | PCI-E 16X; 1 PCI-E 1X, 1 AGR (Advanced Graphic Riser slot), 3 PCI; 10USB |
Other features
| Specification | Value |
|---|---|
| Audio output | RealTek ALC655 6-channel software audio codec |
| I/O ports | 1 floppy port supports 1 FDD with 360K, 720K, 1.2M, 1.44M and 2.88Mbytes - 1 serial port - 1 parallel port supports SPP/EPP/ECP mode - 10 USB2.0 ports (Rear x 4 / Front x 6) - 1 Audio (Line-In/Line-Out/MIC) port - 1 RJ-45 LAN Jack - 2 IDE ports support 4 IDE devices - 4 serial ATA ports |
