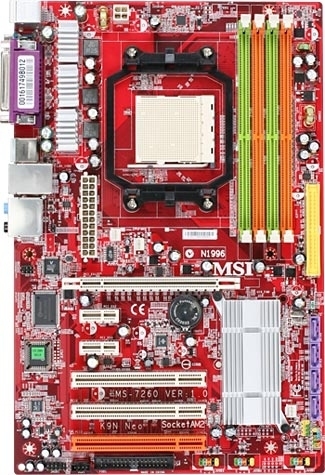

MSI Mainboard K9N Neo-F
Model Mainboard K9N Neo-FPart no. K9N NEO-F
30 specifications
- Processor manufacturerAMD
- Number of memory slots4
- RAID levels0, 1, 0+1
- USB 2.0 connectors3
- LAN controllerVitesse VSC8601
- Motherboard form factorATX
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 4
- RAID levels
- 0, 1, 0+1
- USB 2.0 connectors
- 3
- LAN controller
- Vitesse VSC8601
- Motherboard form factor
- ATX
- Brand
- MSI
- Category
- Motherboard
- Model
- Mainboard K9N Neo-F
- Part number
- K9N NEO-F
- Also known as
- MSI Mainboard K9N Neo-F Socket AM2 ATX
Specifications
30 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM2 |
| Processor system buses supported | 1000 MHz |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| Maximum internal memory | 4 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 0+1 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| Number of SATA connectors | 4 |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| Headphone outputs | 1 |
| Parallel ports quantity | 1 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| LAN controller | Vitesse VSC8601 |
| Networking features | Ethernet, Fast Ethernet, Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio chip | Realtek ALC883 |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1 x PCI Express x16 2 x PCI Express x1 3 x PCI |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 200 mm |
| Depth | 305 mm |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 200 x 305 |
| Floppy disk drive connector | Yes |
| RAID controller type | SATA II |
