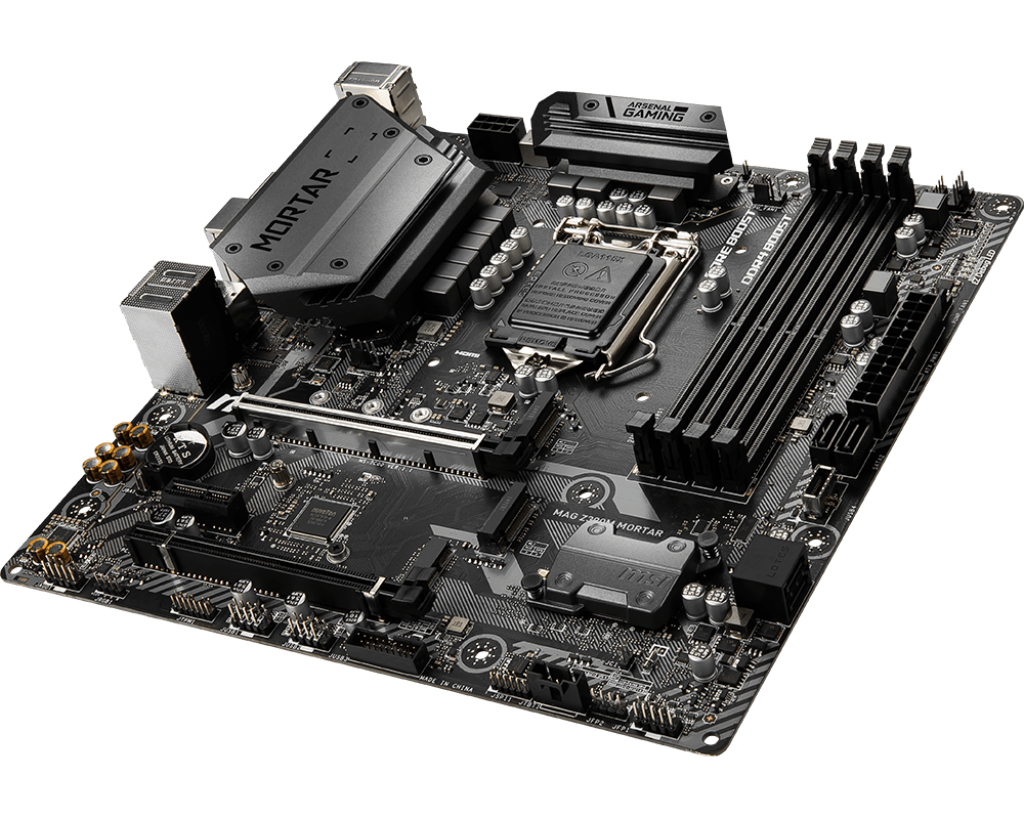

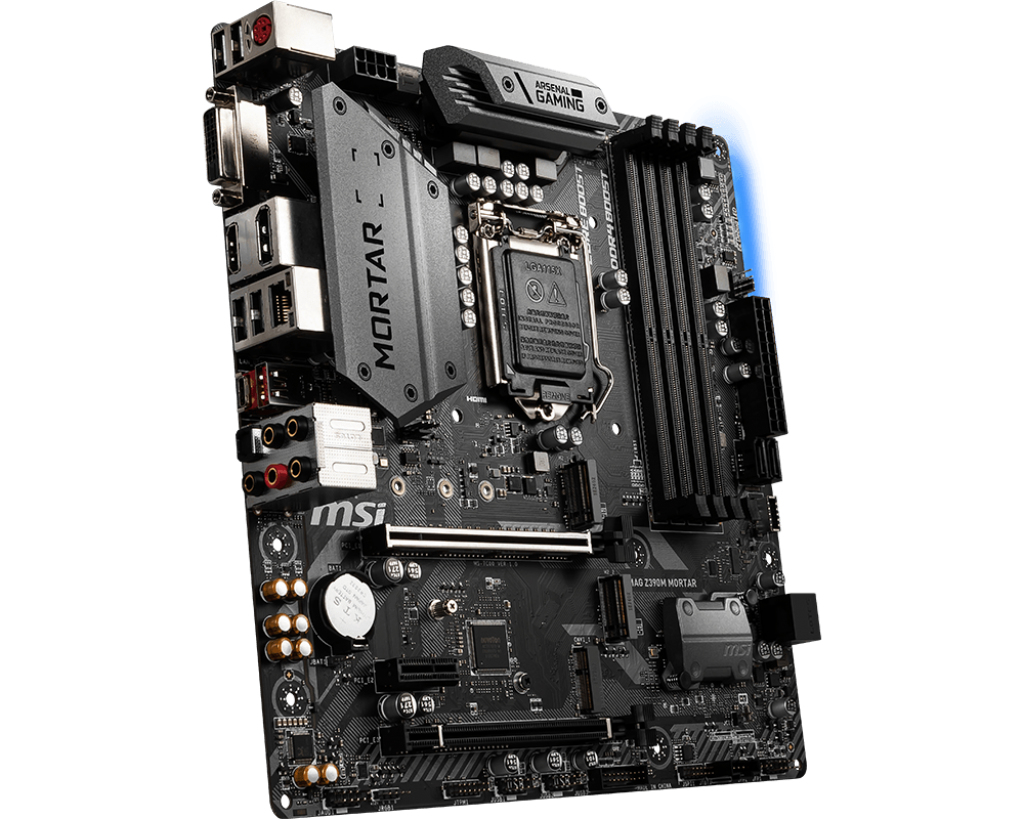

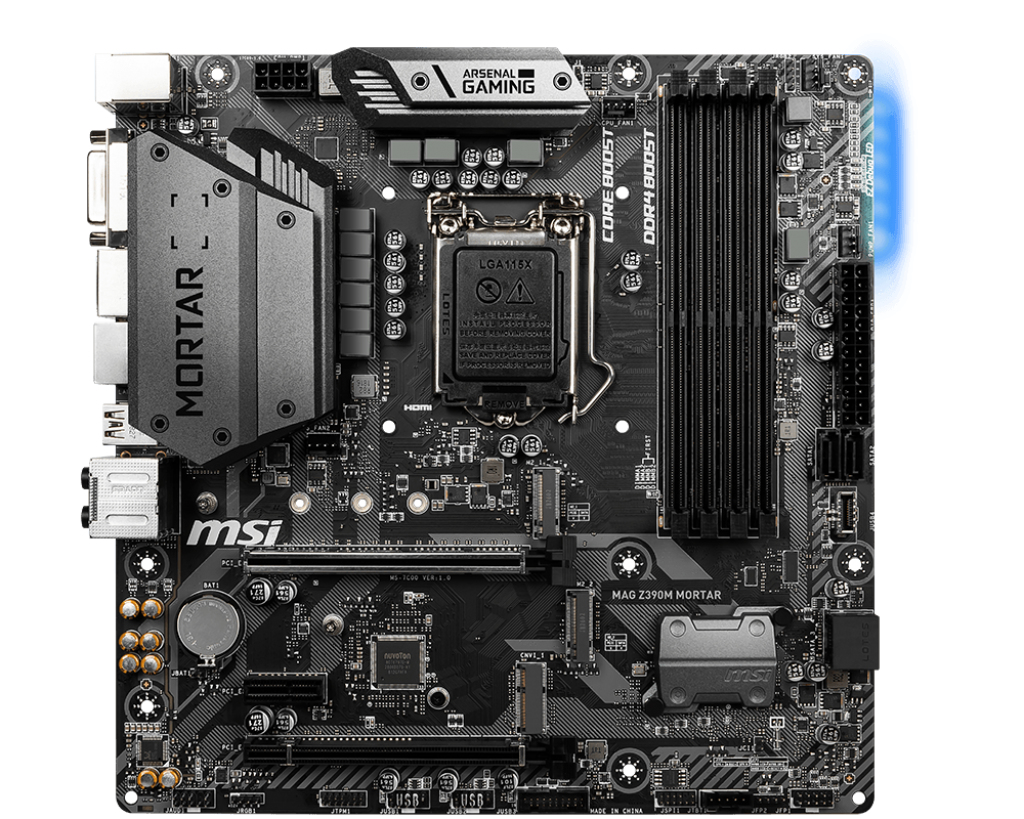

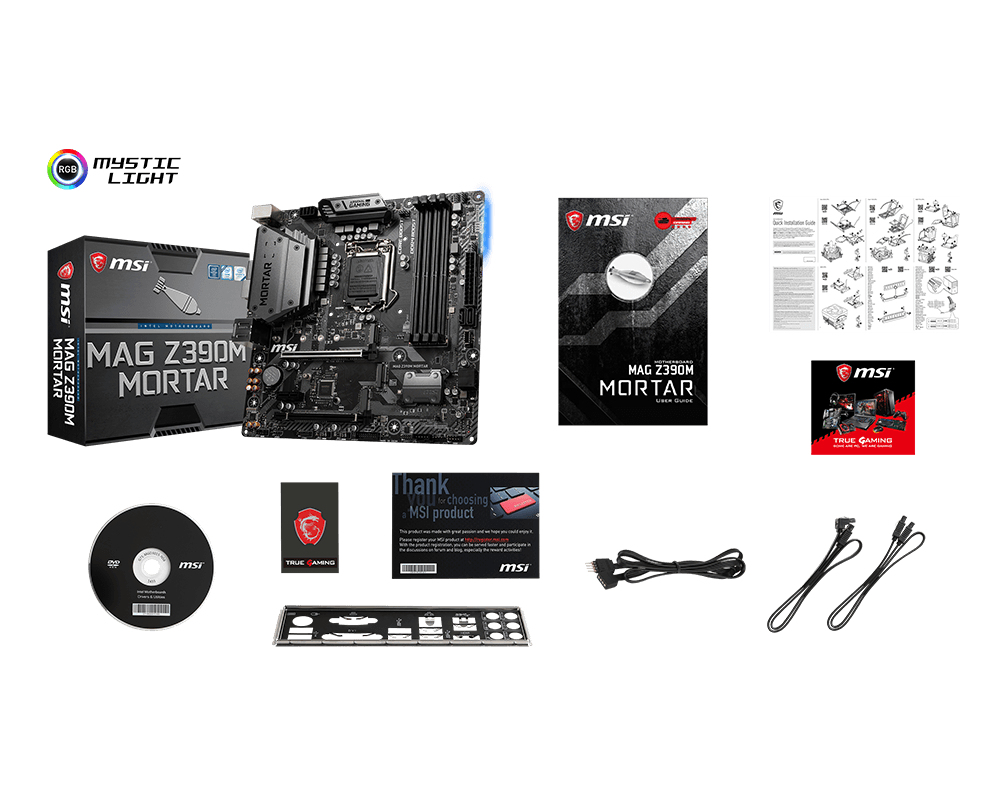

MSI MAG Z390M MORTAR

MSI MAG Z390M MORTAR

Model MAG Z390M MORTARPart no. 7C00-001REAN 5706998562364

64 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR4-SDRAM
  • Supported storage drive interfacesM.2, SATA III
  • Parallel processing technology support2-Way CrossFireX
  • USB 2.0 connectors2
  • USB 2.0 ports quantity4
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR4-SDRAM
Supported storage drive interfaces
M.2, SATA III
Parallel processing technology support
2-Way CrossFireX
USB 2.0 connectors
2
USB 2.0 ports quantity
4
Brand
MSI
Category
Motherboard
Model
MAG Z390M MORTAR
Part numbers
7C00-001R, MAGZ390M-MORTAR, MAG Z390M MORTAR, 911-7C00-002
EAN / UPC
5706998562364, 4719072601584
Also known as
MSI MAG Z390M MORTAR Intel Z390 LGA 1151 (Socket H4) micro ATX

Specifications

64 specifications in 13 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1151 (Socket H4)
Compatible processor seriesIntel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®

Memory

Supported memory typesDDR4-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds2133,2400,2666,2800,3000,3200,3300,3333,3400,3466,3600,3733,3866,4000,4133,4200,4266,4300,4400 MHz
Maximum internal memory64 GB

Storage controllers

Supported storage drive interfacesM.2, SATA III
RAID levels0, 1, 5, 10

Graphics

Parallel processing technology support2-Way CrossFireX

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
Number of SATA III connectors4
Number of SATA II connectors0
Number of Parallel ATA connectors0
Front panel audio connectorYes
Front panel connectorYes
ATX Power connector (24-pin)Yes
Peripheral (Molex) power connectors (4-pin)1
EPS power connector (8-pin)Yes
TPM connectorYes
RGB LED pin headerYes

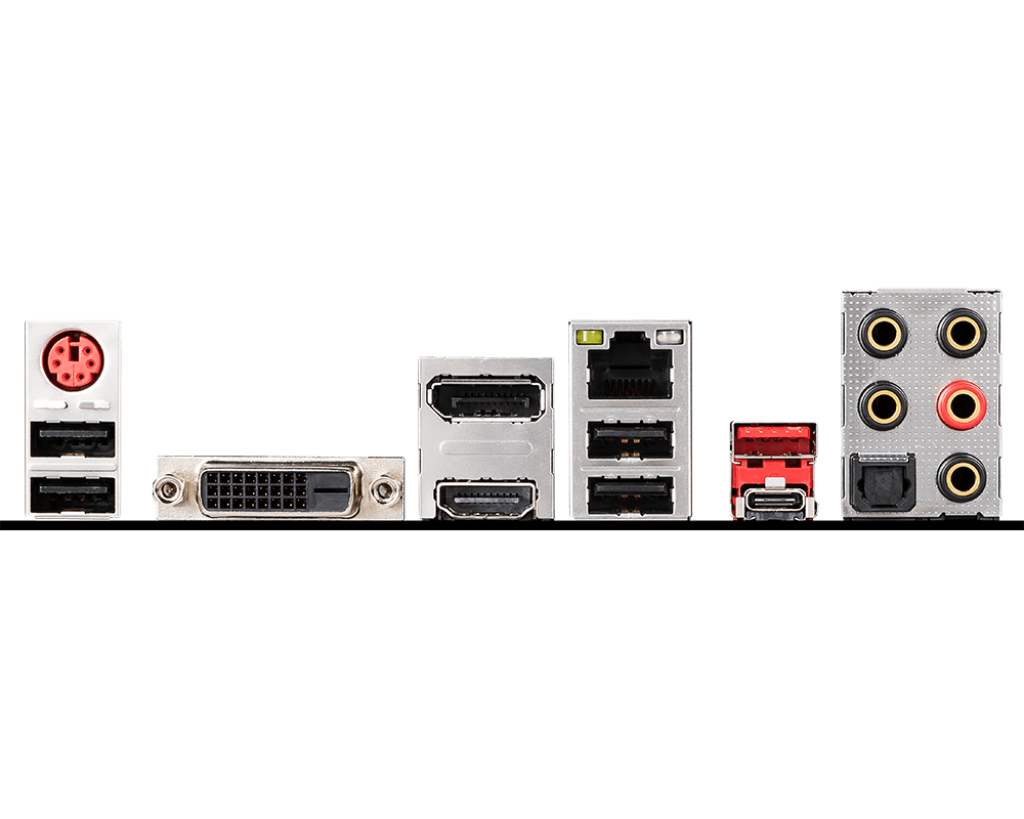

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity0
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity1
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity1
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity0
HDMI ports quantity1
HDMI version1.4
DVI-D ports quantity1
DisplayPort version1.2
S/PDIF out portYes
Thunderbolt ports quantity1

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerIntel® I219-V
Wi-FiNo

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyNVIDIA
Motherboard chipsetIntel Z390
Audio chipRealtek ALC892
Audio output channels7.1 channels
Windows operating systems supportedWindows 10 x64

Expansion slots

PCI Express x1 (Gen 3.x) slots1
PCI Express x16 (Gen 3.x) slots2
Number of M.2 (M) slots2

BIOS

Clear CMOS jumperYes

Weight & dimensions

Width244 mm
Depth244 mm

Packaging content

Cables includedSATA
Drivers includedYes

Other features

Quick installation guideYes
Utilities includedYes
Number of M.2 (E) slots1
