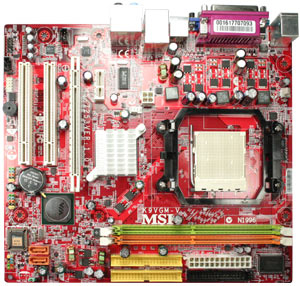

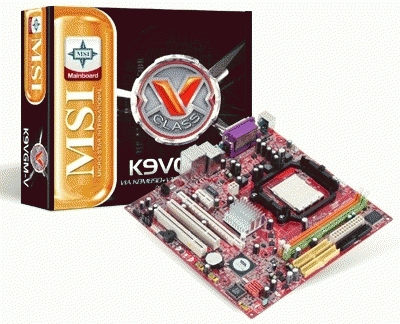

MSI K9VGM-V Socket AM2 micro ATX
Model K9VGM-VPart no. 7253-010EAN 4719072036676
34 specifications
- Processor manufacturerAMD
- Number of memory slots2
- USB 2.0 ports quantity4
- LAN controllerRealtek RTL8201CL
- Motherboard form factormicro ATX
- Width245 mm
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 2
- USB 2.0 ports quantity
- 4
- LAN controller
- Realtek RTL8201CL
- Motherboard form factor
- micro ATX
- Width
- 245 mm
- Brand
- MSI
- Category
- Motherboard
- Model
- K9VGM-V
- Part numbers
- 7253-010, 7253-010R
- EAN / UPC
- 4719072036676
- Also known as
- MSI K9VGM-V Socket AM2 micro ATX
Specifications
34 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM2 |
| Compatible processor series | AMD Sempron |
| Processor system buses supported | 1000 MHz |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 2 |
| Maximum internal memory | 2 GB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 2 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| Number of COM connectors | 1 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Parallel ports quantity | 1 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| LAN controller | Realtek RTL8201CL |
| Networking features | 10/100 Fast Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Audio chip | Realtek ALC883 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | - 1 x PCI Express x16 - 1 x PCI Express x1 - 2 x PCI |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 245 mm |
| Depth | 210 mm |
Other features
| Specification | Value |
|---|---|
| Floppy disk drive connector | Yes |
| I/O ports | 1xIrDA pinheader |
