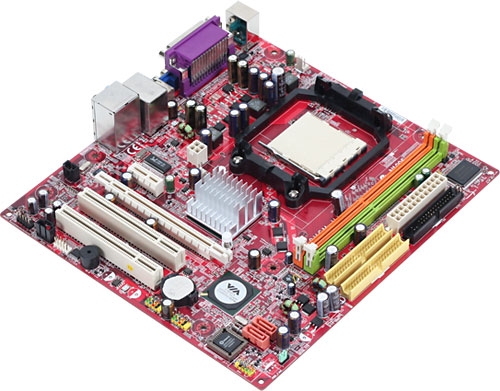

MSI K9VGM Socket AM2 micro ATX
Model K9VGMPart no. K9VGM-VEAN 816909035025
24 specifications
- Processor manufacturerAMD
- Number of memory slots2
- USB 2.0 connectors4
- Networking features10Mb/s & 100MB/s
- Motherboard form factormicro ATX
- Width225 mm
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 2
- USB 2.0 connectors
- 4
- Networking features
- 10Mb/s & 100MB/s
- Motherboard form factor
- micro ATX
- Width
- 225 mm
- Brand
- MSI
- Category
- Motherboard
- Model
- K9VGM
- Part number
- K9VGM-V
- EAN / UPC
- 816909035025
- Also known as
- MSI K9VGM Socket AM2 micro ATX
Specifications
24 specifications in 7 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM2 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 2 |
| Maximum internal memory | 4 GB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 4 |
| Number of SATA connectors | 2 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Headphone outputs | 1 |
| Parallel ports quantity | 1 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking features | 10Mb/s & 100MB/s |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Power source type | ATX |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 225 mm |
| Depth | 245 mm |
