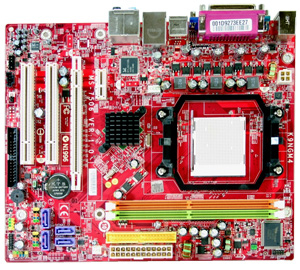

MSI K9NGM4-F V2
Model K9NGM4-F V2EAN 4719072068042
29 specifications
- Processor manufacturerAMD
- Number of memory slots2
- RAID levels0, 1, 0+1
- USB 2.0 connectors4
- Networking features10/100/1000 Fast Ethernet
- Motherboard form factormicro ATX
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 2
- RAID levels
- 0, 1, 0+1
- USB 2.0 connectors
- 4
- Networking features
- 10/100/1000 Fast Ethernet
- Motherboard form factor
- micro ATX
- Brand
- MSI
- Category
- Motherboard
- Model
- K9NGM4-F V2
- Part numbers
- K9NGM4-F V2, 7506-020, 7506-020R, 601-7349-06S
- EAN / UPC
- 4719072068042
- Also known as
- MSI K9NGM4-F V2 motherboard Socket AM2 micro ATX
Specifications
29 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM2 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 2 |
| Maximum internal memory | 4 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 0+1 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 4 |
| Number of SATA connectors | 4 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| TPM connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Headphone outputs | 1 |
| Parallel ports quantity | 1 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking features | 10/100/1000 Fast Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Audio chip | Realtek ALC888 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | - 1 x PCI Express x16 - 1 x PCI Express x1 - 2 x 32-bit PCI |
Other features
| Specification | Value |
|---|---|
| Controller 2nd interface type | IDE |
| Controller interface type | SATA II |
| Floppy disk drive connector | Yes |
| Graphics controller | GeForce 7025 |
What people say
Reviews & ratings
MSI K9NGM4-F V2
- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare MSI K9NGM4-F V2

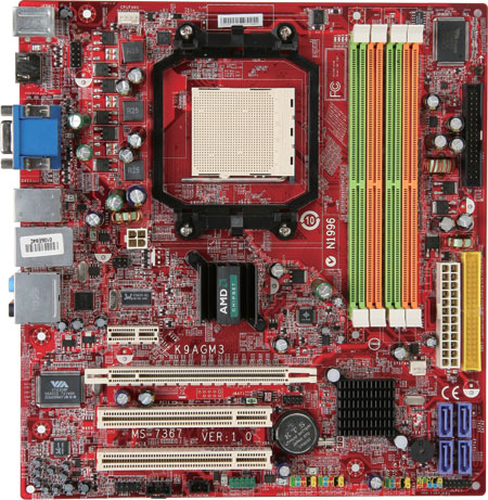

All motherboard comparisons- MSI K9NGM4-F V2 vsMSI K9AGM3-F Socket AM2 micro ATXCompare specs

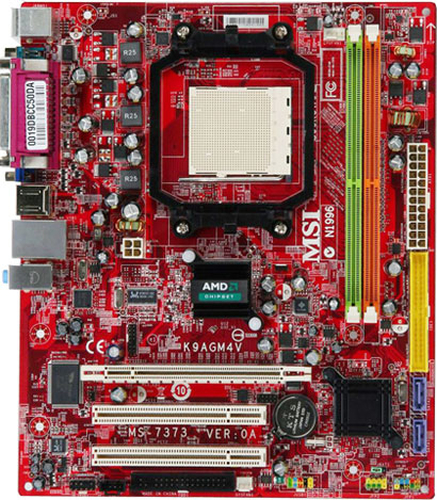

- MSI K9NGM4-F V2 vsMSI K9AGM4-L motherboard Socket AM2 micro ATXCompare specs
