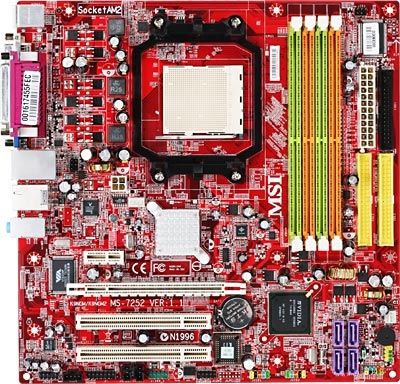

MSI K9NGM2 Socket AM2 micro ATX
Model K9NGM2Part no. K9NGM2-FID
25 specifications
- Processor manufacturerAMD
- Number of memory slots4
- USB 2.0 connectors2
- Networking features10/100/1000 Fast Ethernet
- Motherboard form factormicro ATX
- Expansion slots2 x PCI 2.2 32-bit PCI
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 4
- USB 2.0 connectors
- 2
- Networking features
- 10/100/1000 Fast Ethernet
- Motherboard form factor
- micro ATX
- Expansion slots
- 2 x PCI 2.2 32-bit PCI
- Brand
- MSI
- Category
- Motherboard
- Model
- K9NGM2
- Part number
- K9NGM2-FID
- Also known as
- MSI K9NGM2 Socket AM2 micro ATX
Specifications
25 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM2 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| Maximum internal memory | 8 GB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 4 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Chassis intrusion connector | Yes |
| Number of IEEE1394 connectors | 1 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Headphone outputs | 1 |
| Parallel ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking features | 10/100/1000 Fast Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Audio chip | Realtek ALC883 |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 2 x PCI 2.2 32-bit PCI |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 245 mm |
| Depth | 245 mm |
