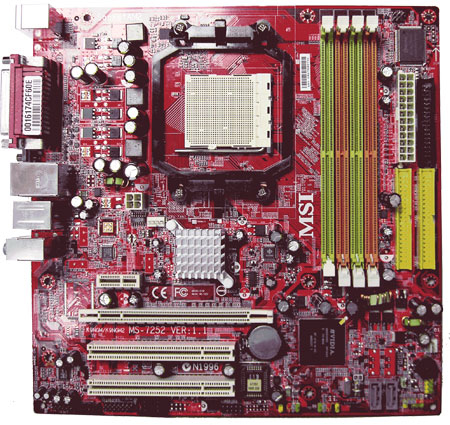

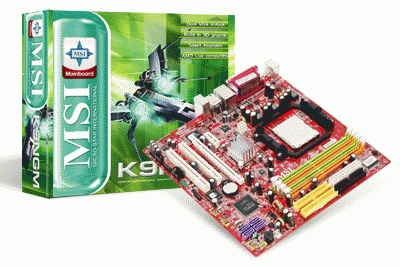

MSI K9NGM-L Socket AM2 micro ATX
Model K9NGM-LPart no. 7252-040R
33 specifications
- Processor manufacturerAMD
- Number of memory slots4
- USB 2.0 connectors2
- LAN controllerRealtek RTL8201CL
- Motherboard form factormicro ATX
- Expansion slots1xPCIe x16, 1xPCIe x1, 2xPCI
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 4
- USB 2.0 connectors
- 2
- LAN controller
- Realtek RTL8201CL
- Motherboard form factor
- micro ATX
- Expansion slots
- 1xPCIe x16, 1xPCIe x1, 2xPCI
- Brand
- MSI
- Category
- Motherboard
- Model
- K9NGM-L
- Part number
- 7252-040R
- Also known as
- MSI K9NGM-L Socket AM2 micro ATX
Specifications
33 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM2 |
| Compatible processor series | AMD Sempron |
| Processor system buses supported | 1000 MHz |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| Maximum internal memory | 8 GB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 2 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 1 |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Parallel ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| LAN controller | Realtek RTL8201CL |
| Networking features | 10/100 Fast Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Audio chip | Realtek ALC883 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1xPCIe x16, 1xPCIe x1, 2xPCI |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 245 mm |
| Depth | 210 mm |
Other features
| Specification | Value |
|---|---|
| I/O ports | 1 x Floppy disk drive connector |
