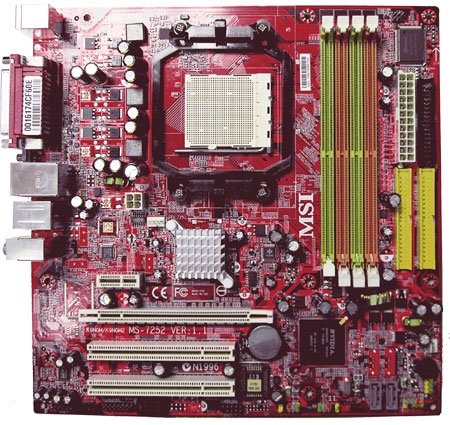

MSI K9NGM Socket AM2 micro ATX
Model K9NGMPart no. K9NGM-L
21 specifications
- Processor manufacturerAMD
- Number of memory slots4
- USB 2.0 connectors2
- Networking features10Mb/s & 100MB/s
- Motherboard form factormicro ATX
- Expansion slots2 x PCI 2.2 32-bit PCI
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 4
- USB 2.0 connectors
- 2
- Networking features
- 10Mb/s & 100MB/s
- Motherboard form factor
- micro ATX
- Expansion slots
- 2 x PCI 2.2 32-bit PCI
- Brand
- MSI
- Category
- Motherboard
- Model
- K9NGM
- Part number
- K9NGM-L
- Also known as
- MSI K9NGM Socket AM2 micro ATX
Specifications
21 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM2 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| Maximum internal memory | 8 GB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 2 |
| S/PDIF out connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Parallel ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking features | 10Mb/s & 100MB/s |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 2 x PCI 2.2 32-bit PCI |
Other features
| Specification | Value |
|---|---|
| Floppy disk drive connector | Yes |
