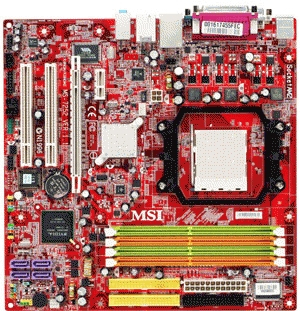

MSI K9NBPM2-FID motherboard Socket AM2 micro ATX
Model K9NBPM2-FIDEAN 816909016536
22 specifications
- Processor manufacturerAMD
- Number of memory slots4
- RAID levels0, 1
- USB 2.0 connectors2
- Motherboard form factormicro ATX
- Width244 mm
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 4
- RAID levels
- 0, 1
- USB 2.0 connectors
- 2
- Motherboard form factor
- micro ATX
- Width
- 244 mm
- Brand
- MSI
- Category
- Motherboard
- Model
- K9NBPM2-FID
- Part numbers
- K9NBPM2-FID, 7252-040, 7252-050R
- EAN / UPC
- 816909016536, 4719072025434
- Also known as
- MSI K9NBPM2-FID motherboard Socket AM2 micro ATX
Specifications
22 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM2 |
| Compatible processor series | AMD Sempron |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 4 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Chassis intrusion connector | Yes |
| Number of IEEE1394 connectors | 1 |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | - 1 PCI Express x16 slot - 1 PCI Express x1 slot - 2 PCI slots |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 244 mm |
Other features
| Specification | Value |
|---|---|
| Floppy disk drive connector | Yes |
| I/O ports | - 1 x Parallel - 1 x PS/2 Keyboard - 1 x PS/2 Mouse - 1 x VGA port - 1 x DVI-D port - 1 x IEEE1394 port - 1 x Audio I/O (Line-in/Line-out/MIC) - 4 x USB 2.0 - 1 x RJ45 LAN Jack |
