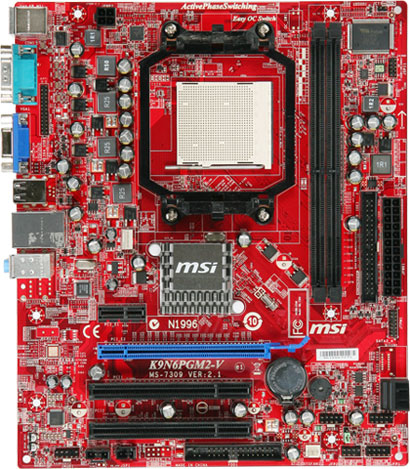

MSI K9N6PGM2-V2 motherboard NVIDIA MCP61P Socket AM2 micro ATX
Model K9N6PGM2-V2EAN 5711045122484
33 specifications
- Processor manufacturerAMD
- Number of memory slots2
- RAID levels0, 1
- USB 2.0 connectors4
- Networking features10/100 Fast Ethernet
- Motherboard form factormicro ATX
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 2
- RAID levels
- 0, 1
- USB 2.0 connectors
- 4
- Networking features
- 10/100 Fast Ethernet
- Motherboard form factor
- micro ATX
- Brand
- MSI
- Category
- Motherboard
- Model
- K9N6PGM2-V2
- Part numbers
- K9N6PGM2-V2, K9N6PGM2-V-2, 911-7309-051, 7309-130R
- EAN / UPC
- 5711045122484, 816909062106
- Also known as
- MSI K9N6PGM2-V2 motherboard NVIDIA MCP61P Socket AM2 micro ATX
Specifications
33 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM2 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 2 |
| Maximum internal memory | 8 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 4 |
| Number of SATA connectors | 4 |
| S/PDIF out connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Chassis intrusion connector | Yes |

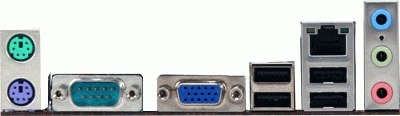

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 1 |
| Microphone in | Yes |
Network
| Specification | Value |
|---|---|
| Networking features | 10/100 Fast Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Motherboard chipset | NVIDIA MCP61P |
| Audio chip | Realtek ALC888 / ALC888S |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 1 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 200 mm |
Other features
| Specification | Value |
|---|---|
| Controller interface type | NVIDIA GeForce 6150SE |
| Floppy disk drive connector | Yes |
| IPMI 2.0 slot | Yes |
