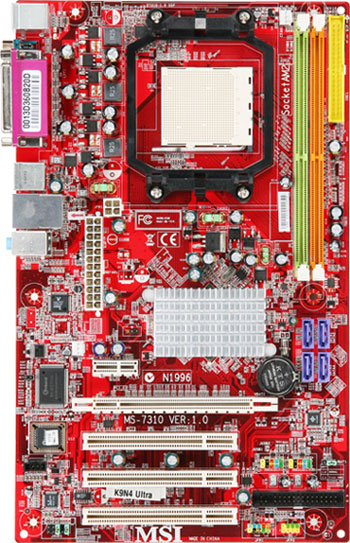

MSI K9N4 Ultra-F
Model K9N4 Ultra-FPart no. K9N4 ULTRA-FEAN 4719072040673
28 specifications
- Processor manufacturerAMD
- Number of memory slots2
- USB 2.0 ports quantity4
- LAN controllerVitesse VSC8601
- Motherboard form factorATX
- Expansion slots1xPCIe x16 1xPCIe x1 3xPCI
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 2
- USB 2.0 ports quantity
- 4
- LAN controller
- Vitesse VSC8601
- Motherboard form factor
- ATX
- Expansion slots
- 1xPCIe x16 1xPCIe x1 3xPCI
- Brand
- MSI
- Category
- Motherboard
- Model
- K9N4 Ultra-F
- Part numbers
- K9N4 ULTRA-F, 7310-010R, 601-7310-010
- EAN / UPC
- 4719072040673
- Also known as
- MSI K9N4 Ultra-F Socket AM2 ATX
Specifications
28 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM2 |
| Compatible processor series | AMD Sempron |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 2 |
| Maximum internal memory | 4 GB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 4 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of chassis fan connectors | 1 |
| Chassis intrusion connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| Parallel ports quantity | 1 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| LAN controller | Vitesse VSC8601 |
| Networking features | 10/100/1000 Fast Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio chip | Realtek ALC655 |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1xPCIe x16 1xPCIe x1 3xPCI |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 304 mm |
| Depth | 244 mm |
Other features
| Specification | Value |
|---|---|
| Floppy disk drive connector | Yes |
| RAID controller type | NVIDIA nForce 500 Ultra |
