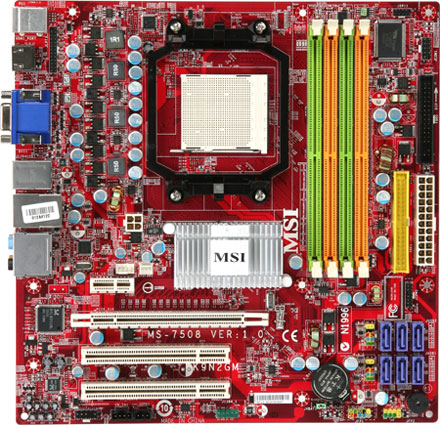

MSI K9N2GM-FD / FIH
Model K9N2GM-FD / FIHPart no. 7508-020R
35 specifications
- Processor manufacturerAMD
- Number of memory slots4
- RAID levels0, 1, 0+1, 5, JBOD
- USB 2.0 connectors2
- Networking featuresGigabit Ethernet
- Motherboard form factormicro ATX
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 4
- RAID levels
- 0, 1, 0+1, 5, JBOD
- USB 2.0 connectors
- 2
- Networking features
- Gigabit Ethernet
- Motherboard form factor
- micro ATX
- Brand
- MSI
- Category
- Motherboard
- Model
- K9N2GM-FD / FIH
- Part number
- 7508-020R
- Also known as
- MSI K9N2GM-FD / FIH Socket AM2 micro ATX
Specifications
35 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM2 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| Maximum internal memory | 8 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 0+1, 5, JBOD |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 6 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| Number of COM connectors | 1 |
| Number of IEEE1394 connectors | 1 |
| TPM connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| Headphone outputs | 6 |
Network
| Specification | Value |
|---|---|
| Networking features | Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Audio chip | Realtek ALC888 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1 x PCI Express X16 1 x PCI Express X1 2 x PCI |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 244 mm |
Other features
| Specification | Value |
|---|---|
| Controller 2nd interface type | IDE |
| Controller interface type | SATA2 |
| Floppy disk drive connector | Yes |
