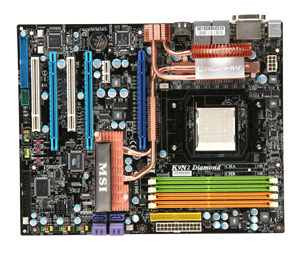

MSI K9N2 Diamond
Model K9N2 DiamondPart no. K9N2 DIAMONDEAN 4719072076245
31 specifications
- Processor manufacturerAMD
- Number of memory slots4
- USB 2.0 connectors3
- Motherboard form factorATX
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 4
- USB 2.0 connectors
- 3
- Motherboard form factor
- ATX
- Brand
- MSI
- Category
- Motherboard
- Model
- K9N2 Diamond
- Part numbers
- K9N2 DIAMOND, 7375-020R, 7375-01S, 7375-010
- EAN / UPC
- 4719072076245
- Also known as
- MSI K9N2 Diamond Socket AM2 ATX
Specifications
31 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM2 |
| Processor system buses supported | 2600 MHz |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| Maximum internal memory | 8 GB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| Number of SATA connectors | 6 |
| Number of Parallel ATA connectors | 2 |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Chassis intrusion connector | Yes |
| Number of IEEE1394 connectors | 1 |
| TPM connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 2 |
| eSATA ports quantity | 2 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 1 |
| DVI-D ports quantity | 1 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking features | 2 x LAN 10/100/1000 Fast Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | - 3 x PCI Express x16 - 1 x PCI Express x1 - 2 x PCI |
Other features
| Specification | Value |
|---|---|
| Controller 2nd interface type | SATA II |
| Controller interface type | Ultra DMA 66/100/133 |
| Floppy disk drive connector | Yes |
What people say
Reviews & ratings
MSI K9N2 Diamond
- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare MSI K9N2 Diamond

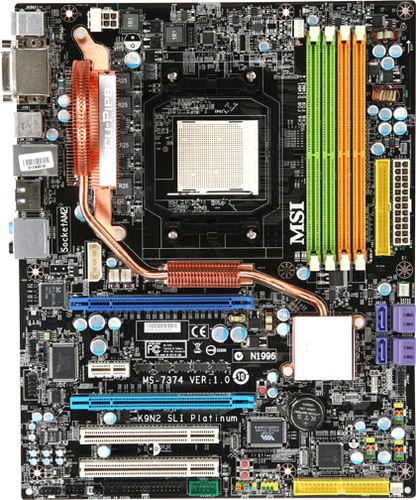

All motherboard comparisons- MSI K9N2 Diamond vsMSI K9N2 SLI PlatinumCompare specs
- MSI K9N2 Diamond vsMSI K9N2 ZilentCompare specs
- MSI K9N2 Diamond vsMSI K9A2GM-FIH motherboard AMDCompare specs
- MSI K9N2 Diamond vsMSI K9A2 NEO-FCompare specs

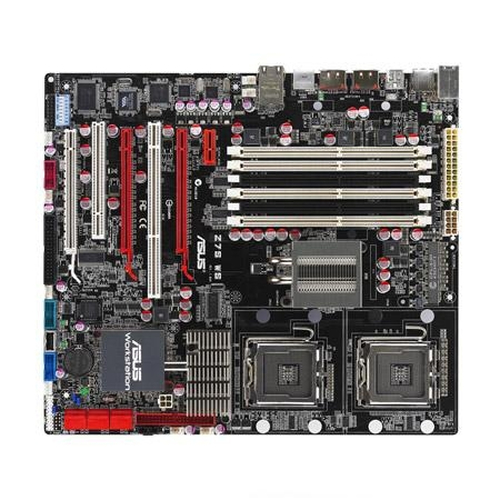

- MSI K9N2 Diamond vsASUS Z7S WSCompare specs

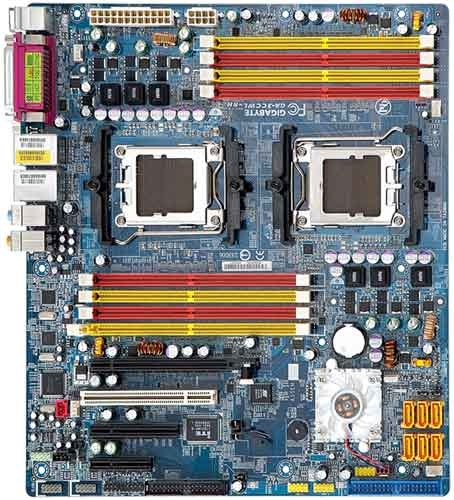

- MSI K9N2 Diamond vsGIGABYTE GA-3CCWL-RH motherboard NVIDIA MCP55 Pro Socket F (1207) SSI CEBCompare specs

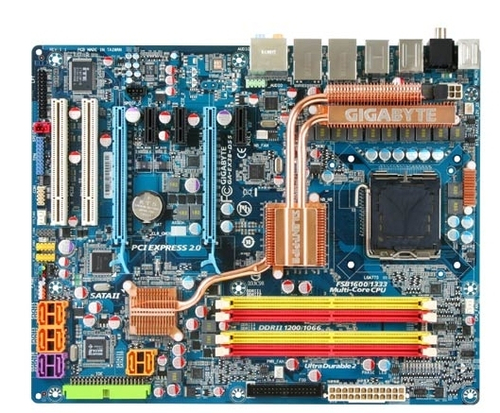

- MSI K9N2 Diamond vsGIGABYTE GA-EX38-DQ6 Socket 774 ATXCompare specs

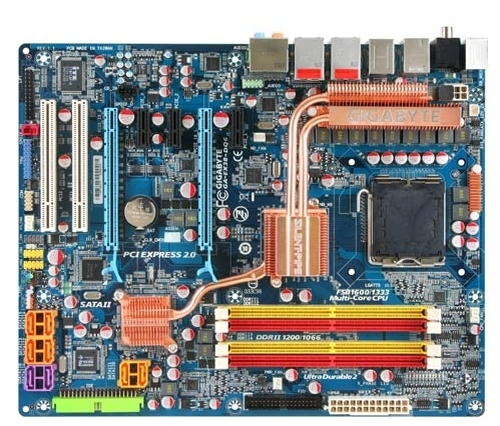

- MSI K9N2 Diamond vsGIGABYTE GA-EX38-DS5 motherboard LGA 775 (Socket T) ATXCompare specs
