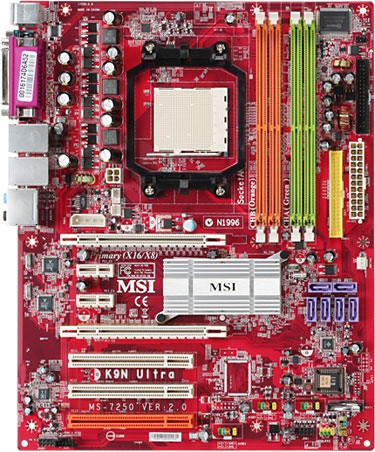

MSI K9N Ultra
Model K9N UltraPart no. K9N ULTRA-2F
42 specifications
- Processor manufacturerAMD
- Number of memory slots4
- RAID levels5
- USB 2.0 connectors3
- Motherboard form factorATX
- Width30.5 mm
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 4
- RAID levels
- 5
- USB 2.0 connectors
- 3
- Motherboard form factor
- ATX
- Width
- 30.5 mm
- Brand
- MSI
- Category
- Motherboard
- Model
- K9N Ultra
- Part number
- K9N ULTRA-2F
- Also known as
- MSI K9N Ultra Socket AM2 ATX
Specifications
42 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM2 |
| Processor system buses supported | 1000 MHz |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| Maximum internal memory | 8 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 5 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| Number of SATA connectors | 6 |
| Number of Parallel ATA connectors | 0 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of EATX power connectors | 0 |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Chassis intrusion connector | Yes |
| Number of COM connectors | 1 |
| Number of IEEE1394 connectors | 0 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 2 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 0 |
| Headphone outputs | 0 |
| Microphone in | No |
| S/PDIF out port | Yes |
| Parallel ports quantity | 1 |
| Serial ports quantity | 1 |
| Modem (RJ-11) ports | 0 |
Network
| Specification | Value |
|---|---|
| Networking features | Dual LAN jacks - Dual LAN 10/100/1000 Fast Ethernet - VSC8601 |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio chip | Realtek ALC883 |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | -1 PCI Express x16 -3 PCI Express x1 -3 PCI slots, 3.3V/ 5V PCI bus |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 30.5 mm |
| Depth | 24.5 mm |
Other features
| Specification | Value |
|---|---|
| Azalia Digital Header (ADH) connector | No |
| EZ plug connector | No |
| Floppy disk drive connector | Yes |
| GAME/MIDI connector | No |
