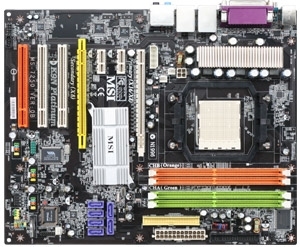

MSI K9N Platinum
Model K9N PlatinumPart no. K9N PLATINUM
34 specifications
- Processor manufacturerAMD
- Number of memory slots4
- RAID levels0+1, 5
- USB 2.0 connectors3
- Networking featuresDual Gigabit Ethernet
- Motherboard form factorATX
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 4
- RAID levels
- 0+1, 5
- USB 2.0 connectors
- 3
- Networking features
- Dual Gigabit Ethernet
- Motherboard form factor
- ATX
- Brand
- MSI
- Category
- Motherboard
- Model
- K9N Platinum
- Part number
- K9N PLATINUM
- Also known as
- MSI K9N Platinum Socket AM2 ATX
Specifications
34 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM2 |
| Maximum number of SMP processors | 1 |
| Processor system buses supported | 1000 MHz |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| Maximum internal memory | 8 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0+1, 5 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| Number of SATA connectors | 6 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| Number of IEEE1394 connectors | 2 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 2 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| S/PDIF out port | Yes |
| Parallel ports quantity | 1 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking features | Dual Gigabit Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio chip | Realtek ALC883 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 2x PCI Express x16 2x PCI Express x1 3x PCI 32-bit |
Other features
| Specification | Value |
|---|---|
| Controller 2nd interface type | Ultra-ATA/133 |
| Controller interface type | Serial ATA II |
| Floppy disk drive connector | Yes |
| RAID controller type | SATA II |
