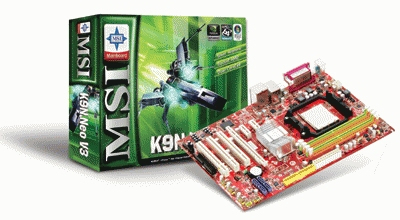

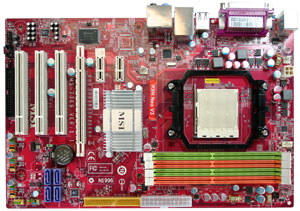

MSI K9N Neo-F V3
Model K9N Neo-F V3Part no. 7369-010EAN 5052217101167
28 specifications
- Processor manufacturerAMD
- Number of memory slots4
- RAID levels0, 1
- USB 2.0 connectors6
- Networking features10/100/1000 Fast Ethernet
- Motherboard form factorATX
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 4
- RAID levels
- 0, 1
- USB 2.0 connectors
- 6
- Networking features
- 10/100/1000 Fast Ethernet
- Motherboard form factor
- ATX
- Brand
- MSI
- Category
- Motherboard
- Model
- K9N Neo-F V3
- Part numbers
- 7369-010, K9N NEO-F V3, 7369-001R
- EAN / UPC
- 5052217101167, 4719072056551
- Also known as
- MSI K9N Neo-F V3 Socket AM2 ATX
Specifications
28 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM2 |
| Processor system buses supported | 1000 MHz |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| Maximum internal memory | 8 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 6 |
| Number of SATA connectors | 4 |
| Number of Parallel ATA connectors | 1 |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| Headphone outputs | 1 |
| Parallel ports quantity | 1 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking features | 10/100/1000 Fast Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio chip | Realtek ALC888 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1 x PCI Express x16 2 x PCI Express x1 3 x 32-bit PCI |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 304 mm |
| Depth | 244 mm |
Other features
| Specification | Value |
|---|---|
| Controller 2nd interface type | SATA II |
| Controller interface type | Ultra DMA133/100/66 |
| Floppy disk drive connector | Yes |
