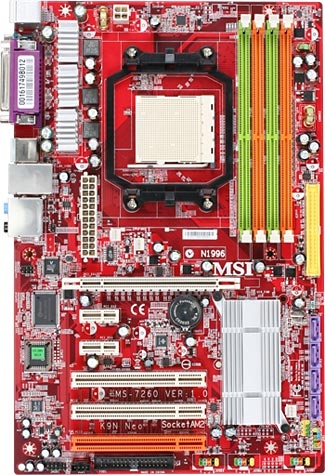

MSI K9N Neo-F
Model K9N Neo-FPart no. 7260-010R
30 specifications
- Processor manufacturerAMD
- Number of memory slots4
- USB 2.0 connectors3
- Networking features10/100/1000 Fast Ethernet
- Motherboard form factorATX
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 4
- USB 2.0 connectors
- 3
- Networking features
- 10/100/1000 Fast Ethernet
- Motherboard form factor
- ATX
- Brand
- MSI
- Category
- Motherboard
- Model
- K9N Neo-F
- Part number
- 7260-010R
- Also known as
- MSI K9N Neo-F Socket AM2 ATX
Specifications
30 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM2 |
| Compatible processor series | AMD Sempron |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| Maximum internal memory | 4 GB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| Number of SATA connectors | 4 |
| Number of Parallel ATA connectors | 1 |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Parallel ports quantity | 1 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking features | 10/100/1000 Fast Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio chip | Realtek ALC883 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1 PCI Express x16 slot 2 PCI Express x1 slots 3 PCI |
Other features
| Specification | Value |
|---|---|
| Controller 2nd interface type | Ultra DMA 66/100/133 |
| Controller interface type | SATA II |
| Dimensions (WxDxH) | 305 x 200 |
| Floppy disk drive connector | Yes |
