MSI K9N Diamond
Model K9N DiamondPart no. K9N DIAMOND
23 specifications
- Processor manufacturerAMD
- Number of memory slots4
- USB 2.0 connectors3
- LAN controllerVitesse VSC8601
- Motherboard form factorATX
- Width245 mm
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 4
- USB 2.0 connectors
- 3
- LAN controller
- Vitesse VSC8601
- Motherboard form factor
- ATX
- Width
- 245 mm
- Brand
- MSI
- Category
- Motherboard
- Model
- K9N Diamond
- Part numbers
- K9N DIAMOND, 7226-010, 7226-010R
- Also known as
- MSI K9N Diamond Socket AM2 ATX
Specifications
23 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM2 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| Maximum internal memory | 8 GB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| Number of SATA connectors | 6 |
| Number of Parallel ATA connectors | 1 |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Power fan connector | Yes |
| Chassis intrusion connector | Yes |
| Number of IEEE1394 connectors | 2 |
Network
| Specification | Value |
|---|---|
| LAN controller | Vitesse VSC8601 |
| Networking features | Ethernet/Fast-Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | - 2 PCI Express x16 - 2 PCI Express x1 - 2 PCI slots |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 245 mm |
| Depth | 305 mm |
Other features
| Specification | Value |
|---|---|
| Audio output | Creative CA0106 |
| Floppy disk drive connector | Yes |

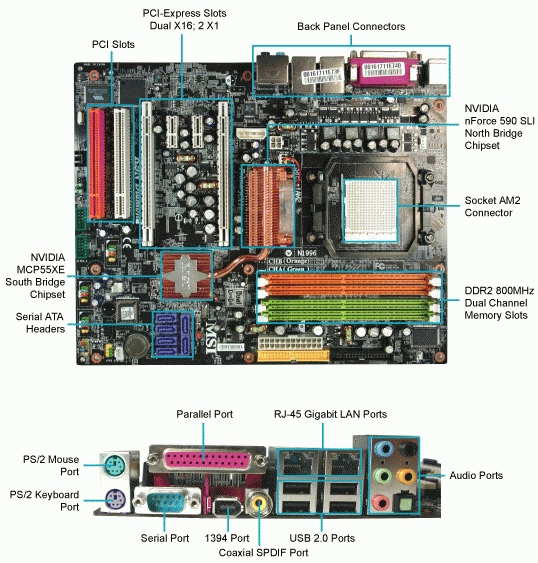

| I/O ports | - 1 x Parallel port - 1 x Serial port (COM 1) - 1 x PS/2 keyboard - 1 x PS/2 mouse - 1 x Coaxial SPDIF out - 1 x IEEE1394 Port - 1 x 6 in 1 audio jack (S/SPDIF out) - 4 x USB 2.0 ports - 2 x RJ45 LAN jack |
