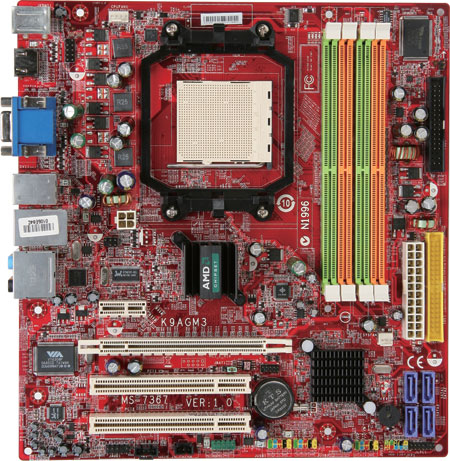

MSI K9AGM3-F Socket AM2 micro ATX
Model K9AGM3-FPart no. 7367-030
28 specifications
- Processor manufacturerAMD
- Number of memory slots4
- USB 2.0 connectors3
- LAN controllerRealtek RTL8111B
- Motherboard form factormicro ATX
- Width244 mm
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 4
- USB 2.0 connectors
- 3
- LAN controller
- Realtek RTL8111B
- Motherboard form factor
- micro ATX
- Width
- 244 mm
- Brand
- MSI
- Category
- Motherboard
- Model
- K9AGM3-F
- Part number
- 7367-030
- Also known as
- MSI K9AGM3-F Socket AM2 micro ATX
Specifications
28 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM2 |
| Compatible processor series | AMD Sempron |
| Processor system buses supported | 1000 MHz |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| Maximum internal memory | 8 GB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| Number of SATA connectors | 4 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Chassis intrusion connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Headphone outputs | 1 |
Network
| Specification | Value |
|---|---|
| LAN controller | Realtek RTL8111B |
| Networking features | 10/100/1000 Fast Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Audio chip | Realtek ALC883 / ALC888 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | - 1 x PCI Express x16 - 1 x PCI Express x1 - 2 x PCI |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 230 mm |
What people say
Reviews & ratings
MSI K9AGM3-F Socket AM2 micro ATX
No reviews yet
Be the first to tell others how MSI K9AGM3-F Socket AM2 micro ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare MSI K9AGM3-F Socket AM2 micro ATX
All motherboard comparisons- MSI K9AGM3-F Socket AM2 micro ATX vsMSI K9AGM4-L motherboard Socket AM2 micro ATXCompare specs
- MSI K9AGM3-F Socket AM2 micro ATX vsMSI X38 PlatinumCompare specs
- MSI K9AGM3-F Socket AM2 micro ATX vsMSI K9NGM4-F V2Compare specs
- MSI K9AGM3-F Socket AM2 micro ATX vsMSI P6NG NEO-LCompare specs

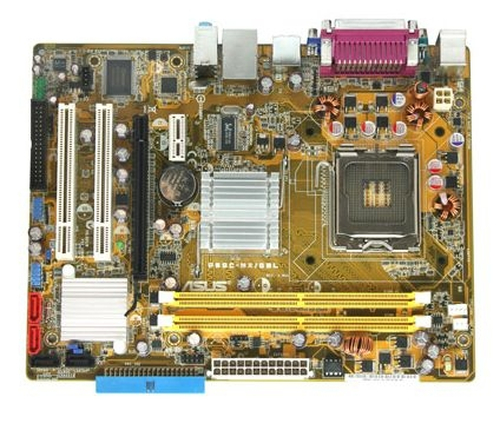

- MSI K9AGM3-F Socket AM2 micro ATX vsASUS P5GC-MX/GBL LGA 775 (Socket T) micro ATXCompare specs

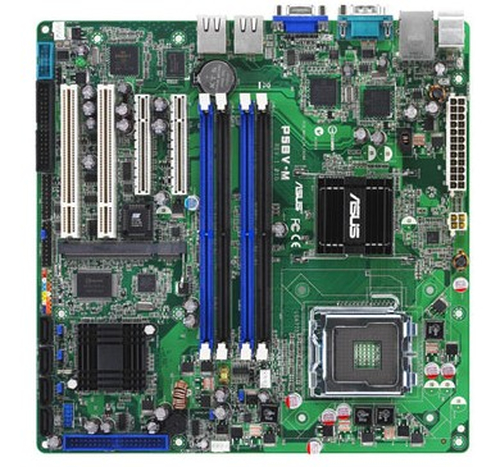

- MSI K9AGM3-F Socket AM2 micro ATX vsASUS P5BV-M Intel® 3200 LGA 775 (Socket T) micro ATXCompare specs

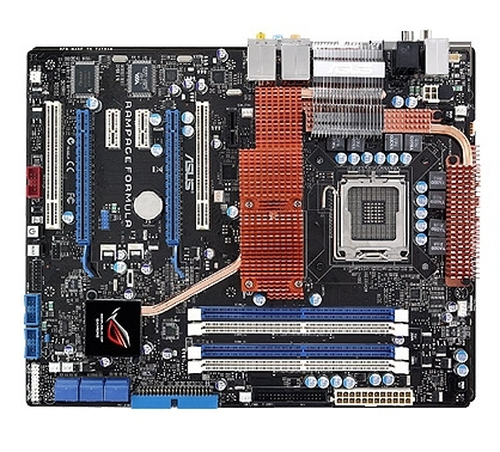

- MSI K9AGM3-F Socket AM2 micro ATX vsASUS Rampage FormulaCompare specs
