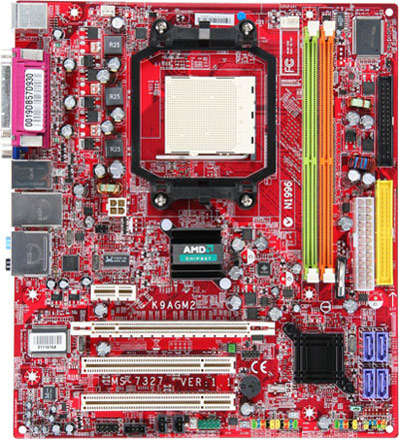

MSI K9AGM2-L Socket AM2 micro ATX
Model K9AGM2-LPart no. 7327-020R
36 specifications
- Processor manufacturerAMD
- Number of memory slots2
- RAID levels0, 1, 0+1
- USB 2.0 connectors3
- USB 2.0 ports quantity4
- LAN controllerRealtek RTL8101E
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 2
- RAID levels
- 0, 1, 0+1
- USB 2.0 connectors
- 3
- USB 2.0 ports quantity
- 4
- LAN controller
- Realtek RTL8101E
- Brand
- MSI
- Category
- Motherboard
- Model
- K9AGM2-L
- Part number
- 7327-020R
- Also known as
- MSI K9AGM2-L Socket AM2 micro ATX
Specifications
36 specifications in 10 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM2 |
| Compatible processor series | AMD Athlon FX, AMD Sempron |
| Processor system buses supported | 1000 MHz |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 2 |
| Maximum internal memory | 4 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 0+1 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| Number of SATA connectors | 4 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Parallel ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| LAN controller | Realtek RTL8101E |
| Networking features | 10/100 Mbps |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Audio chip | Realtek ALC888 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1xPCI Express x16, 1xPCI Express x1, 2xPCI |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 215 mm |
Other features
| Specification | Value |
|---|---|
| Controller 2nd interface type | Ultra DMA 66/100/133 |
| Controller interface type | SATA II |
| Floppy disk drive connector | Yes |
| RAID controller type | SATA II |
What people say
Reviews & ratings
MSI K9AGM2-L Socket AM2 micro ATX
No reviews yet
Be the first to tell others how MSI K9AGM2-L Socket AM2 micro ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare MSI K9AGM2-L Socket AM2 micro ATX
All motherboard comparisons- MSI K9AGM2-L Socket AM2 micro ATX vsMSI 5000V Master-A6 (4 Dimms/ SATA/ Dual LAN)Compare specs
- MSI K9AGM2-L Socket AM2 micro ATX vsMSI 5000V Master-S (4 Dimms/ SCSI/ SATA/ Dual LAN )Compare specs
- MSI K9AGM2-L Socket AM2 micro ATX vsMSI P965 Neo2Compare specs
- MSI K9AGM2-L Socket AM2 micro ATX vsMSI P6N SLI-FICompare specs
- MSI K9AGM2-L Socket AM2 micro ATX vsGIGABYTE GA-5EASV-RH motherboard Intel® 3000 LGA 775 (Socket T) micro ATXCompare specs

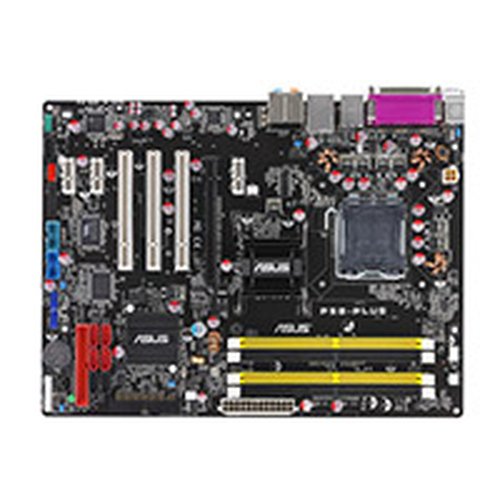

- MSI K9AGM2-L Socket AM2 micro ATX vsASUS P5B-Plus LGA 775 (Socket T) ATXCompare specs

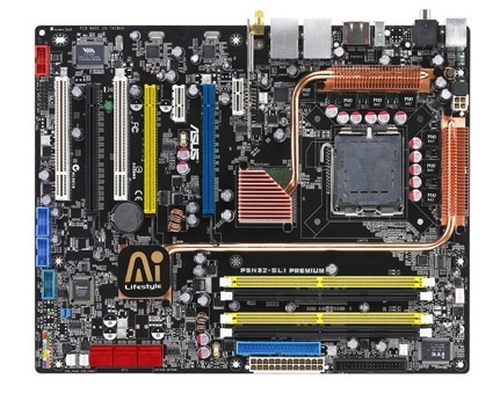

- MSI K9AGM2-L Socket AM2 micro ATX vsASUS P5N32-SLI Premium/WiFi-APCompare specs

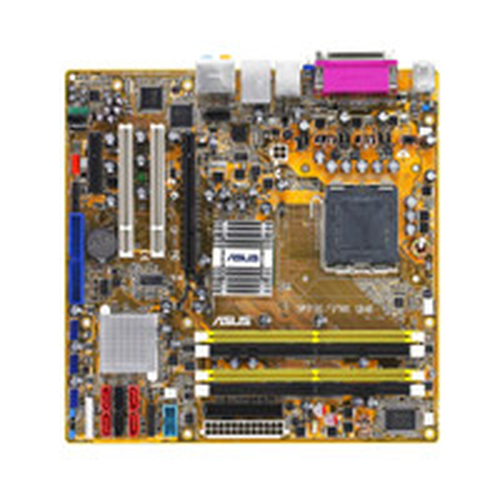

- MSI K9AGM2-L Socket AM2 micro ATX vsASUS P5B-VM DOCompare specs
