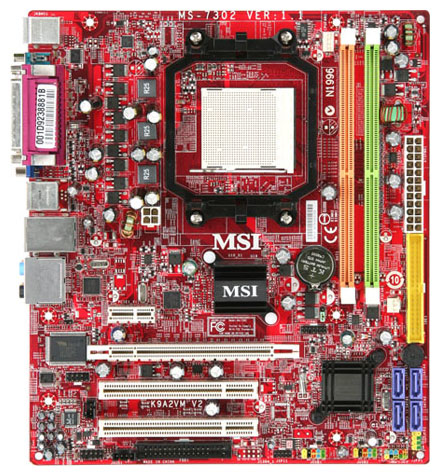

MSI K9A2VM-F V2

MSI K9A2VM-F V2

Model K9A2VM-F V2Part no. 7302-030REAN 4719072077396

54 specifications
  • Processor manufacturerAMD
  • Supported memory typesDDR2-SDRAM
  • Supported storage drive interfacesParallel ATA, SATA II
  • Parallel processing technology supportNot supported
  • USB 2.0 connectors3
  • USB 2.0 ports quantity4
See all specifications

Overview

Processor manufacturer
AMD
Supported memory types
DDR2-SDRAM
Supported storage drive interfaces
Parallel ATA, SATA II
Parallel processing technology support
Not supported
USB 2.0 connectors
3
USB 2.0 ports quantity
4
Brand
MSI
Category
Motherboard
Model
K9A2VM-F V2
Part numbers
7302-030R, K9A2VM-F V2, 7302-030, LIM722A700168, 911-7302-015
EAN / UPC
4719072077396
Also known as
MSI K9A2VM-F V2 AMD 780V Socket AM2 micro ATX

Specifications

54 specifications in 11 groups

Processor

Processor manufacturerAMD
Processor socketSocket AM2
Compatible processor seriesAMD Phenom

Memory

Supported memory typesDDR2-SDRAM
Number of memory slots2
Memory slots typeDIMM
Memory channelsDual-channel
Memory voltage1.8 V
ECC сompatibilityNon-ECC
Supported memory clock speeds800,1066,533,667 MHz
Maximum internal memory4 GB

Storage controllers

Supported storage drive interfacesParallel ATA, SATA II
RAID levels0, 1, 0+1, JBOD

Graphics

Parallel processing technology supportNot supported

Internal I/O

USB 2.0 connectors3
USB 3.2 Gen 1 (3.1 Gen 1) connectors0
Number of SATA III connectors0
Number of SATA II connectors4
Number of Parallel ATA connectors1
S/PDIF out connectorYes
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Chassis intrusion connectorYes

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity0
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity2
Firewire (IEEE 1394) ports1
VGA (D-Sub) ports quantity1
HDMI ports quantity0
DVI-D ports quantity0
Headphone outputs1
Microphone inYes
Parallel ports quantity1
Serial ports quantity1

Network

Networking featuresGigabit Ethernet

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyAMD
Motherboard chipsetAMD 780V
Audio output channels7.1 channels
Power source typeATX

Expansion slots

PCI Express x1 slots1
PCI Express x16 slots1
PCI slots2
Expansion slots1 x PCI Express X16 1 x PCI Express X1 2 x PCI

Weight & dimensions

Width215 mm
Depth244 mm

Other features

Controller 2nd interface typeIDE
Controller interface typeSATA2
Floppy disk drive connectorYes
