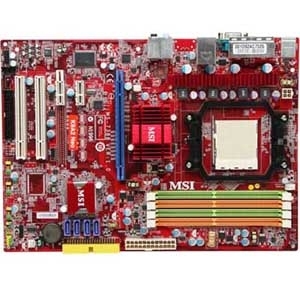

MSI K9A2NEO-F Motherboard
Model K9A2NEO-F MotherboardPart no. K9A2NEO-FEAN 816909044348
38 specifications
- Processor manufacturerAMD
- Number of memory slots4
- USB 2.0 connectors3
- Motherboard form factorATX
- PCI Express x1 slots1
- Width243.8 mm
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 4
- USB 2.0 connectors
- 3
- Motherboard form factor
- ATX
- PCI Express x1 slots
- 1
- Width
- 243.8 mm
- Brand
- MSI
- Category
- Motherboard
- Model
- K9A2NEO-F Motherboard
- Part number
- K9A2NEO-F
- EAN / UPC
- 816909044348
- Also known as
- MSI K9A2NEO-F Motherboard AMD 770 Socket AM2 ATX
Specifications
38 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM2 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| Maximum internal memory | 8 GB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| Number of SATA connectors | 4 |
| S/PDIF out connector | Yes |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Chassis intrusion connector | Yes |
| TPM connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Serial ports quantity | 1 |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Motherboard chipset | AMD 770 |
| Audio chip | Realtek ALC888 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 1 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 243.8 mm |
| Depth | 303.7 mm |
Other features
| Specification | Value |
|---|---|
| Audio output | Yes |
| Floppy disk drive connector | Yes |
| I/O ports | 1 x PS/2 keyboard 1 x PS/2 mouse 1 x 6 in 1 audio jack 4 x USB 2.0 ports 1 x RJ45 LAN jack 1 x Serial port |
