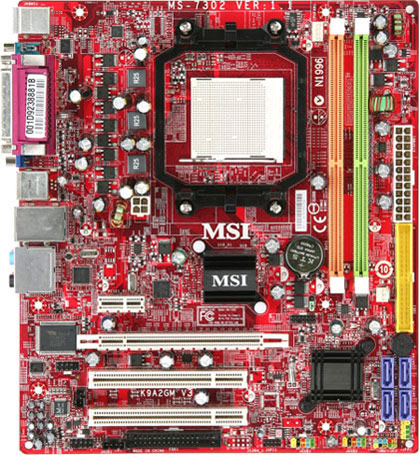

MSI K9A2GM V3 Motherboard
Model K9A2GM V3 MotherboardPart no. K9A2GM-F V3EAN 4719072082192
36 specifications
- Processor manufacturerAMD
- Number of memory slots2
- USB 2.0 ports quantity4
- LAN controllerRealtek RTL8111C
- Motherboard form factormicro ATX
- PCI Express x1 slots1
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 2
- USB 2.0 ports quantity
- 4
- LAN controller
- Realtek RTL8111C
- Motherboard form factor
- micro ATX
- PCI Express x1 slots
- 1
- Brand
- MSI
- Category
- Motherboard
- Model
- K9A2GM V3 Motherboard
- Part number
- K9A2GM-F V3
- EAN / UPC
- 4719072082192
- Also known as
- MSI K9A2GM V3 Motherboard AMD 740G Socket AM2 micro ATX
Specifications
36 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM2 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 2 |
| Memory voltage | 1.8 V |
| Maximum internal memory | 4 GB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 4 |
| Number of Parallel ATA connectors | 1 |
| S/PDIF out connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of IEEE1394 connectors | 1 |
| TPM connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 1 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 6 |
| Parallel ports quantity | 1 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| LAN controller | Realtek RTL8111C |
| Networking features | 10/100/1000 |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | micro ATX |
| Motherboard chipset | AMD 740G |
| Audio chip | Realtek ALC888 / ALC662 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 1 |
| PCI Express x16 slots | 1 |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 215 x 24.4 x 1 mm |
| Floppy disk drive connector | Yes |
