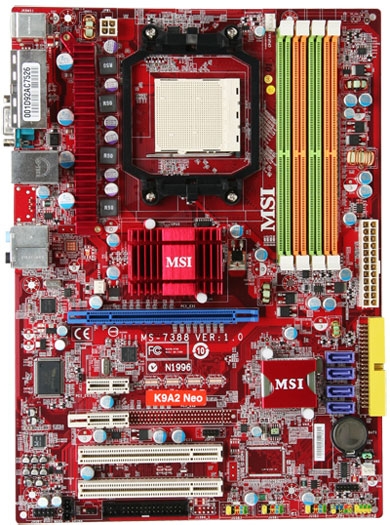

MSI K9A2 NEO-F
Model K9A2 NEO-FEAN 4719072075682
33 specifications
- Processor manufacturerAMD
- Number of memory slots4
- USB 2.0 connectors3
- LAN controllerRealtek RTL8111B
- Motherboard form factorATX
- Width220 mm
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 4
- USB 2.0 connectors
- 3
- LAN controller
- Realtek RTL8111B
- Motherboard form factor
- ATX
- Width
- 220 mm
- Brand
- MSI
- Category
- Motherboard
- Model
- K9A2 NEO-F
- Part numbers
- K9A2 NEO-F, 7388-020R
- EAN / UPC
- 4719072075682
- Also known as
- MSI K9A2 NEO-F motherboard AMD 770 Socket AM2 ATX
Specifications
33 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket AM2 |
| Processor system buses supported | 2600 MHz |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 4 |
| Maximum internal memory | 8 GB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 3 |
| Number of SATA connectors | 4 |
| Number of Parallel ATA connectors | 1 |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 2 |
| Chassis intrusion connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| Headphone outputs | 1 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| LAN controller | Realtek RTL8111B |
| Networking features | 10/100/1000Mb/s Fast Ethernet |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Motherboard chipset | AMD 770 |
| Audio chip | Realtek ALC888 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | - 1 x PCI Express x16 - 2 x PCI Express x1 - 2 x PCI |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 220 mm |
| Depth | 305 mm |
Other features
| Specification | Value |
|---|---|
| Controller 2nd interface type | SATA II |
| Controller interface type | Ultra DMA 66/100/133 |
| Floppy disk drive connector | Yes |
What people say
Reviews & ratings
MSI K9A2 NEO-F
- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare MSI K9A2 NEO-F
All motherboard comparisons- MSI K9A2 NEO-F vsMSI K9A2GM-FIH motherboard AMDCompare specs

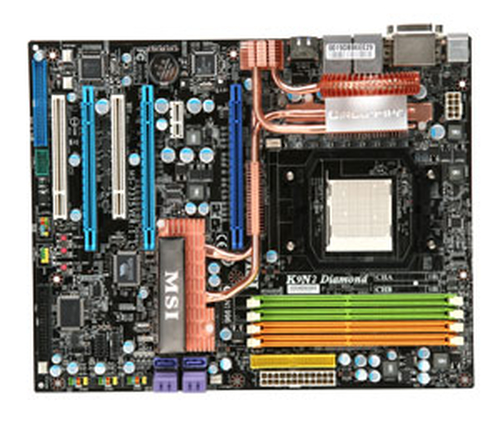

- MSI K9A2 NEO-F vsMSI K9N2 DiamondCompare specs
- MSI K9A2 NEO-F vsMSI K9AG Neo-FCompare specs

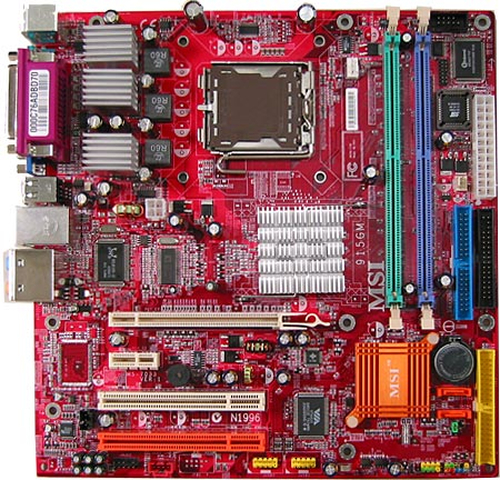

- MSI K9A2 NEO-F vsMSI 915GM-FR motherboard LGA 775 (Socket T) micro ATXCompare specs
- MSI K9A2 NEO-F vsGIGABYTE GA-G31MF-S2 motherboard LGA 775 (Socket T) micro ATXCompare specs
- MSI K9A2 NEO-F vsFujitsu AX63 ProCompare specs

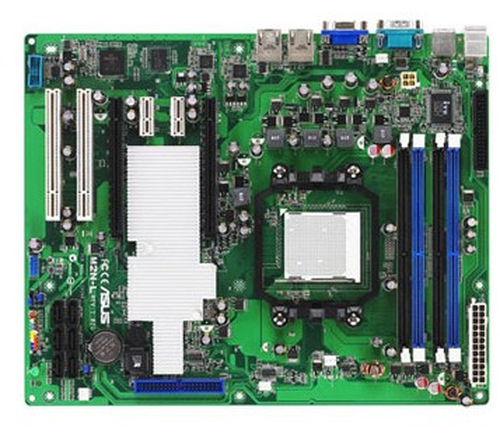

- MSI K9A2 NEO-F vsASUS M2N-L Socket AM2 ATXCompare specs

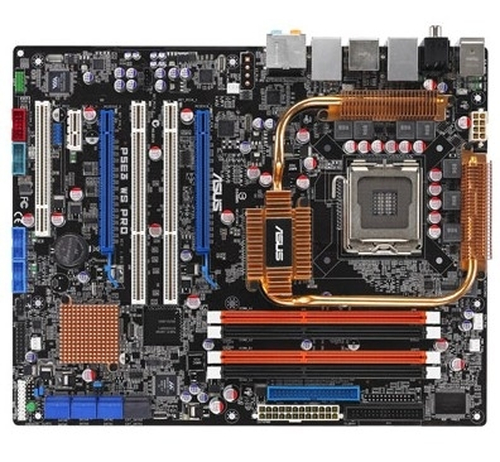

- MSI K9A2 NEO-F vsASUS P5E3 WS ProfessionalCompare specs
