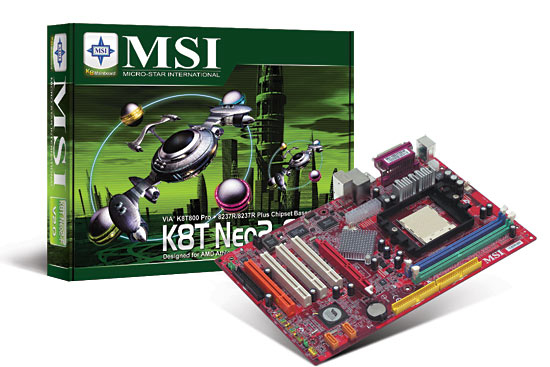

MSI K8T Neo2-F V2
Model K8T Neo2-F V2Part no. 7094-040REAN 4719072019488
30 specifications
- Processor manufacturerAMD
- Number of memory slots2
- USB 2.0 ports quantity4
- Networking features10, 100, 1000 Mb/s
- Motherboard form factorATX
- Expansion slots1xAGP 8x, 4xPCI
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 2
- USB 2.0 ports quantity
- 4
- Networking features
- 10, 100, 1000 Mb/s
- Motherboard form factor
- ATX
- Expansion slots
- 1xAGP 8x, 4xPCI
- Brand
- MSI
- Category
- Motherboard
- Model
- K8T Neo2-F V2
- Part number
- 7094-040R
- EAN / UPC
- 4719072019488
- Also known as
- MSI K8T Neo2-F V2 Socket 939 ATX
Specifications
30 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket 939 |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 2 |
| Maximum internal memory | 2 GB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 2 |
| Front panel audio connector | Yes |
| CD/AUX audio in | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| Number of COM connectors | 1 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Parallel ports quantity | 1 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Networking features | 10, 100, 1000 Mb/s |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio chip | RealTek ALC655 |
| Audio output channels | 5.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1xAGP 8x, 4xPCI |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 194 mm |
Other features
| Specification | Value |
|---|---|
| Controller 2nd interface type | Ultra ATA 66/100/133 |
| Controller interface type | SATA |
| Floppy disk drive connector | Yes |
