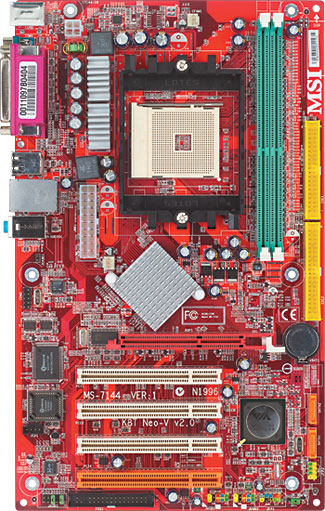

MSI K8T Neo-V 2.0
Model K8T Neo-V 2.0Part no. 7144-010R
33 specifications
- Processor manufacturerAMD
- Number of memory slots2
- USB 2.0 ports quantity4
- LAN controllerRealtek RTL8201CL
- Motherboard form factorATX
- Expansion slots1xAGP, 5xPCI
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 2
- USB 2.0 ports quantity
- 4
- LAN controller
- Realtek RTL8201CL
- Motherboard form factor
- ATX
- Expansion slots
- 1xAGP, 5xPCI
- Brand
- MSI
- Category
- Motherboard
- Model
- K8T Neo-V 2.0
- Part number
- 7144-010R
- Also known as
- MSI K8T Neo-V 2.0 Socket 754 ATX
Specifications
33 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket 754 |
| Compatible processor series | AMD Sempron |
| Processor system buses supported | 800 MHz |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 2 |
| Maximum internal memory | 2 GB |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| Number of SATA connectors | 2 |
| Number of Parallel ATA connectors | 2 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| Number of COM connectors | 1 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Parallel ports quantity | 1 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| LAN controller | Realtek RTL8201CL |
| Networking features | 10/100 Mb/s |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio chip | Realtek ALC655 |
| Audio output channels | 5.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1xAGP, 5xPCI |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 305 mm |
| Depth | 210 mm |
Other features
| Specification | Value |
|---|---|
| Controller 2nd interface type | Ultra DMA 66/100/133 |
| Controller interface type | Serial ATA/150 |
| Floppy disk drive connector | Yes |
