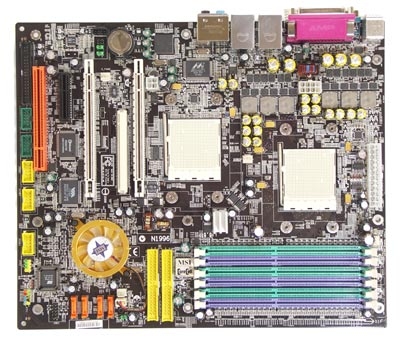

MSI K8N Master2-FAR
Model K8N Master2-FARPart no. 9620-010
28 specifications
- Processor manufacturerAMD
- Number of memory slots6
- RAID levels0, 1, 0+1, JBOD
- USB 2.0 ports quantity4
- Motherboard form factorATX
Overview
- Processor manufacturer
- AMD
- Number of memory slots
- 6
- RAID levels
- 0, 1, 0+1, JBOD
- USB 2.0 ports quantity
- 4
- Motherboard form factor
- ATX
- Brand
- MSI
- Category
- Motherboard
- Model
- K8N Master2-FAR
- Part number
- 9620-010
- Also known as
- MSI K8N Master2-FAR Socket 940 ATX
Specifications
28 specifications in 8 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket 940 |
| Maximum number of SMP processors | 2 |
| Processor system buses supported | 1000 MHz |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 6 |
| ECC сompatibility | ECC |
| Maximum internal memory | 12 GB |
Storage controllers
| Specification | Value |
|---|---|
| RAID levels | 0, 1, 0+1, JBOD |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 6 |
| Number of SATA connectors | 2 |
| Number of Parallel ATA connectors | 1 |
| Number of IEEE1394 connectors | 1 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 2 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 2 |
| Parallel ports quantity | 1 |
| Serial ports quantity | 1 |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | ATX |
| Audio chip | Realtek ALC850 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| Expansion slots | 1 x PCI 32-bit/33MHz 1 x PCIE x4 2 x PCIE x16 |
Other features
| Specification | Value |
|---|---|
| Controller 2nd interface type | 4 SATA II |
| Controller interface type | UDMA 133/100/66 |
| Floppy disk drive connector | Yes |
| Manageability features | SMBus (I2C) |
| RAID controller type | PATA133+SATA H/D / 4 SATA H/D |
