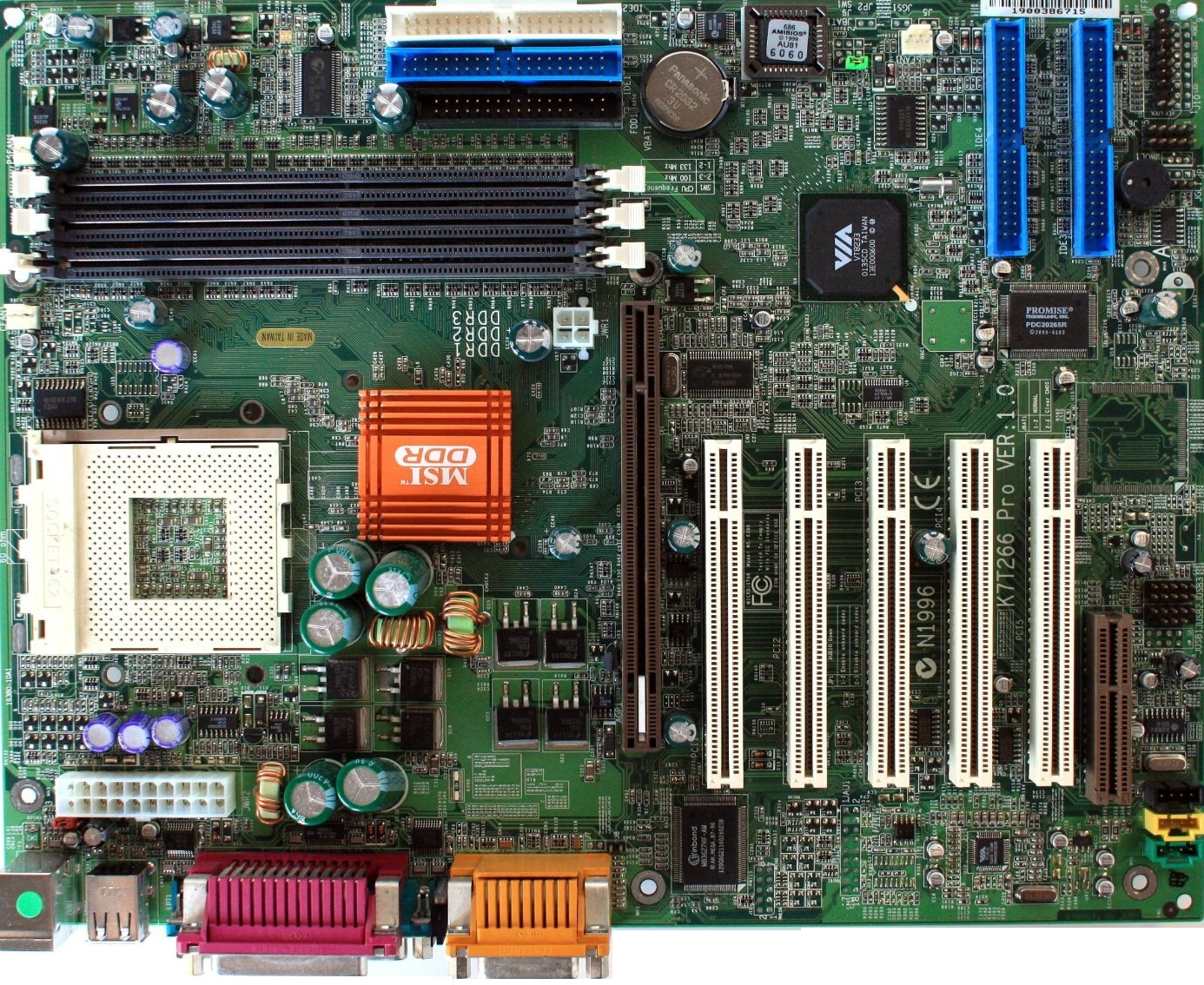

MSI K7T266PRO-R motherboard Socket A (462) ATX
Model K7T266PRO-R
50 specifications
- Processor manufacturerAMD
- Supported memory typesDDR-SDRAM
- Supported storage drive interfacesParallel ATA
- Parallel processing technology supportNot supported
- USB 2.0 connectors2
- Ethernet LANNo
Overview
- Processor manufacturer
- AMD
- Supported memory types
- DDR-SDRAM
- Supported storage drive interfaces
- Parallel ATA
- Parallel processing technology support
- Not supported
- USB 2.0 connectors
- 2
- Ethernet LAN
- No
- Brand
- MSI
- Category
- Motherboard
- Model
- K7T266PRO-R
- Part number
- K7T266PRO-R
- Also known as
- MSI K7T266PRO-R motherboard Socket A (462) ATX
Specifications
50 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | AMD |
| Processor socket | Socket A (462) |
| Compatible processor series | AMD Athlon XP, AMD Athlon |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR-SDRAM |
| Number of memory slots | 3 |
| Memory slots type | DIMM |
| Memory voltage | 2.5 V |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 200,266 MHz |
| Maximum internal memory | 3 GB |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | Parallel ATA |
| RAID levels | 0, 1 |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | Not supported |
| On-board graphics card | No |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 0 |
| Number of SATA III connectors | 0 |
| Number of SATA II connectors | 0 |
| Number of Parallel ATA connectors | 4 |
| Power fan connector | Yes |
| CPU fan connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 0 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 0 |
| Ethernet LAN (RJ-45) ports | 0 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Parallel ports quantity | 1 |
| Serial ports quantity | 2 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Wi-Fi | No |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | VIA |
| Power source type | ATX |
| Compatible operating systems | Windows XP |
Expansion slots
| Specification | Value |
|---|---|
| PCI slots | 5 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | AMI |
| BIOS memory size | 16 Mbit |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 235 mm |
| Depth | 305 mm |
Packaging content
| Specification | Value |
|---|---|
| Drivers included | Yes |
Other features
| Specification | Value |
|---|---|
| AGP x4 slots | 1 |
| Floppy disk drive connector | Yes |
What people say
Reviews & ratings
MSI K7T266PRO-R motherboard Socket A (462) ATX
No reviews yet
Be the first to tell others how MSI K7T266PRO-R motherboard Socket A (462) ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare MSI K7T266PRO-R motherboard Socket A (462) ATX
All motherboard comparisons- MSI K7T266PRO-R motherboard Socket A (462) ATX vsMSI 694D ProCompare specs
- MSI K7T266PRO-R motherboard Socket A (462) ATX vsMSI KT4M motherboard VIA KT400 Socket A (462) micro ATXCompare specs
- MSI K7T266PRO-R motherboard Socket A (462) ATX vsMSI K7T266 ProCompare specs
- MSI K7T266PRO-R motherboard Socket A (462) ATX vsMSI 845PE MAX2Compare specs

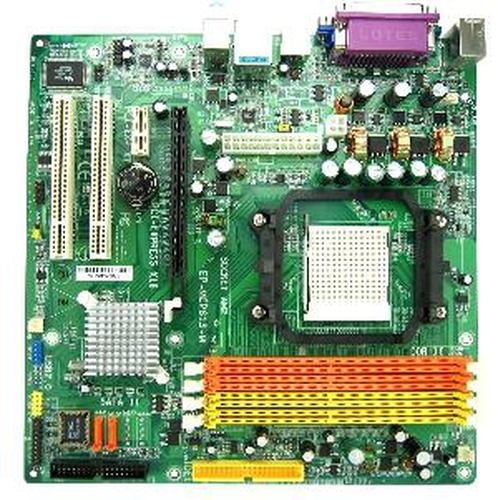

- MSI K7T266PRO-R motherboard Socket A (462) ATX vsAcer MB.S5609.001 motherboard NVIDIA MCP61P Socket AM2 mini ATXCompare specs
- MSI K7T266PRO-R motherboard Socket A (462) ATX vsASUS M4N68T-M LE V2Compare specs
- MSI K7T266PRO-R motherboard Socket A (462) ATX vsGIGABYTE GA-7ZMM motherboard Socket A (462) micro ATXCompare specs

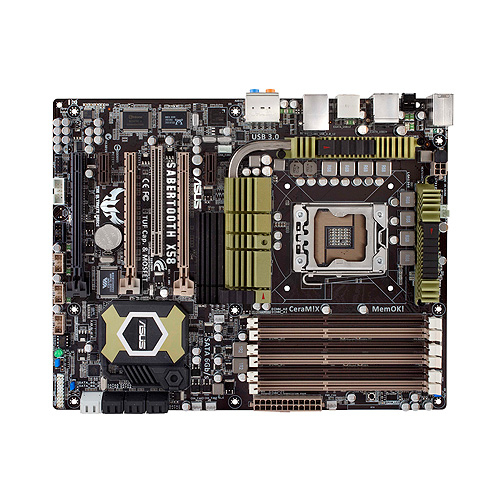

- MSI K7T266PRO-R motherboard Socket A (462) ATX vsASUS Sabertooth X58Compare specs
