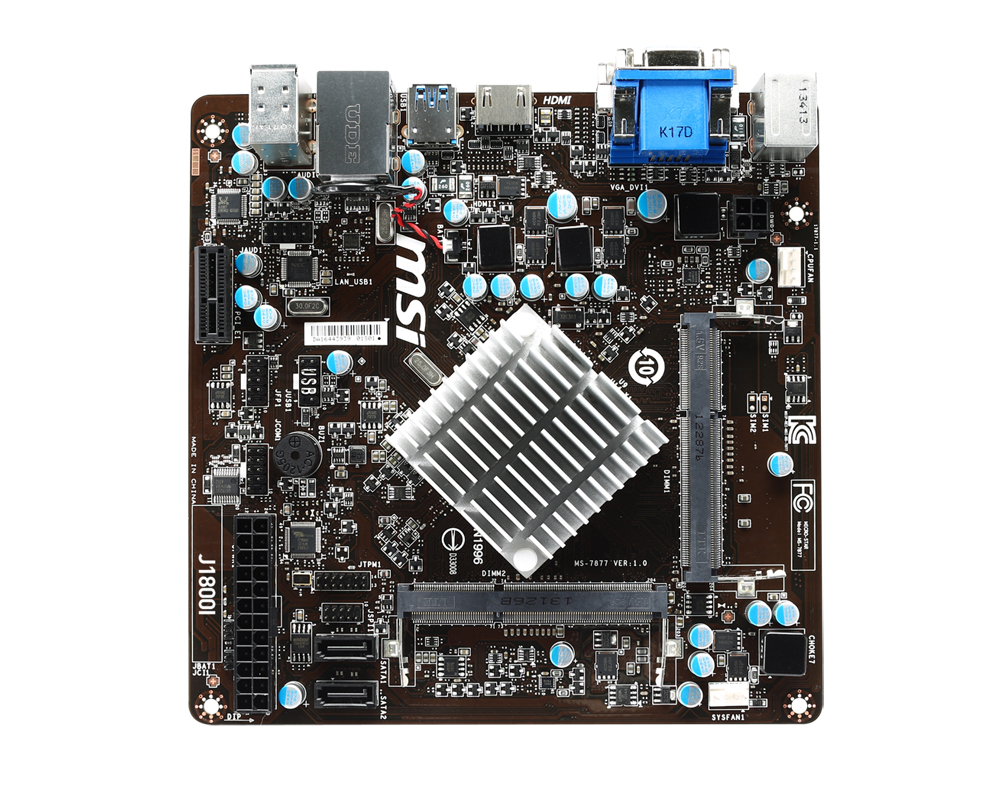

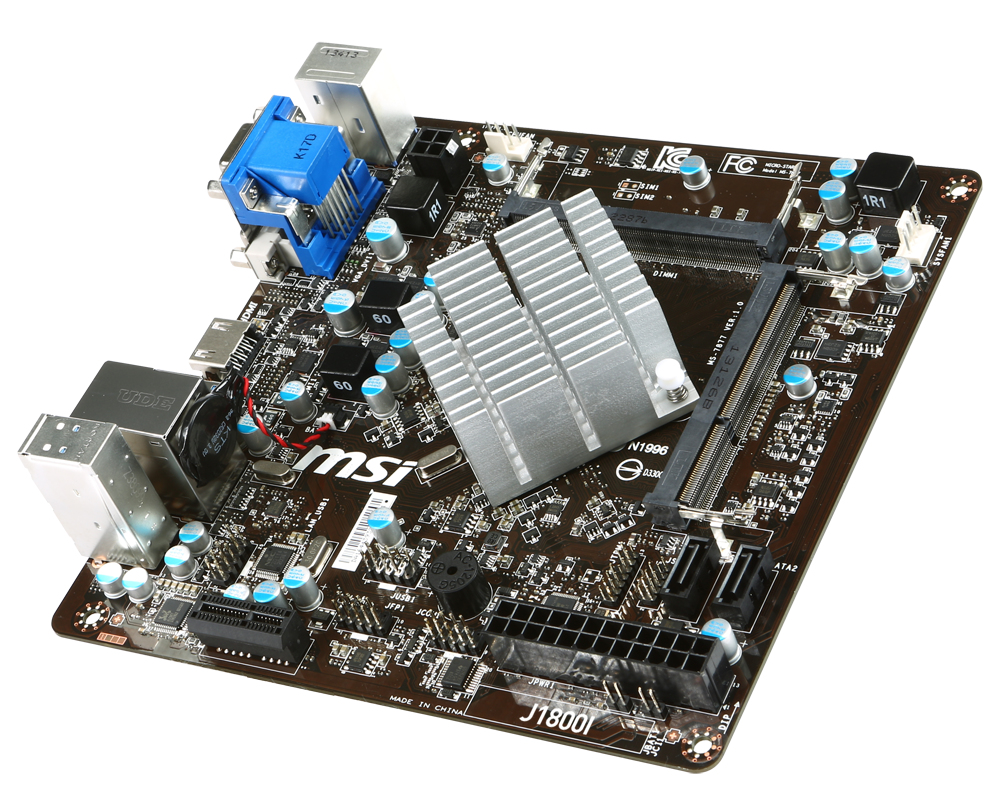

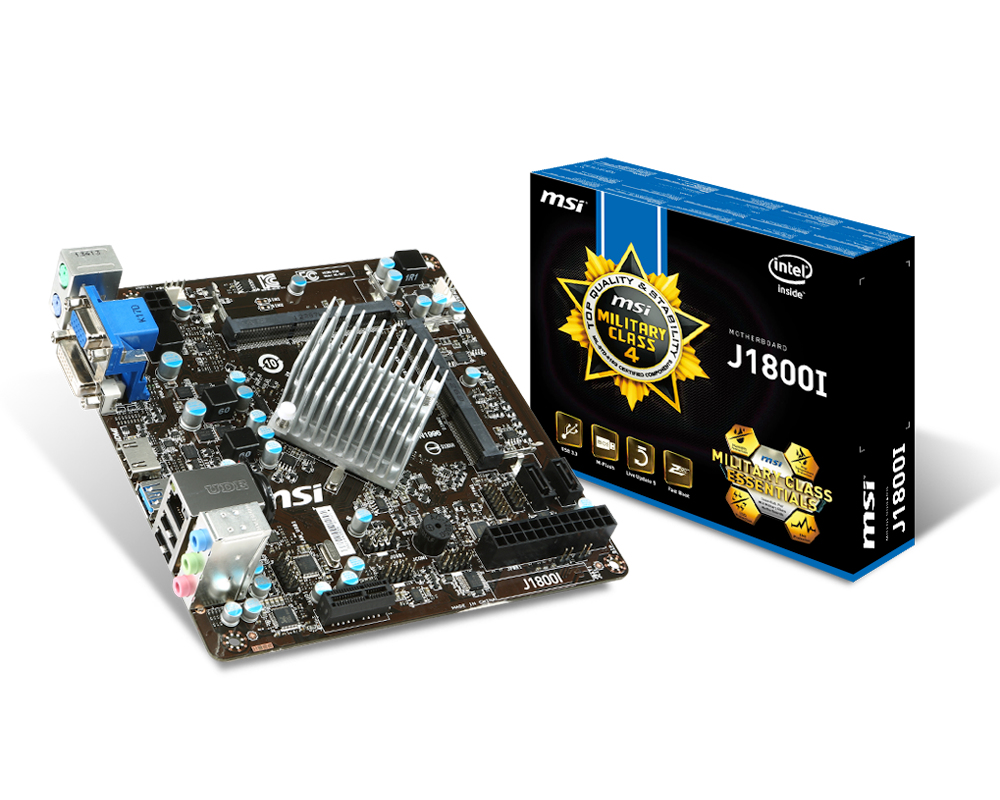

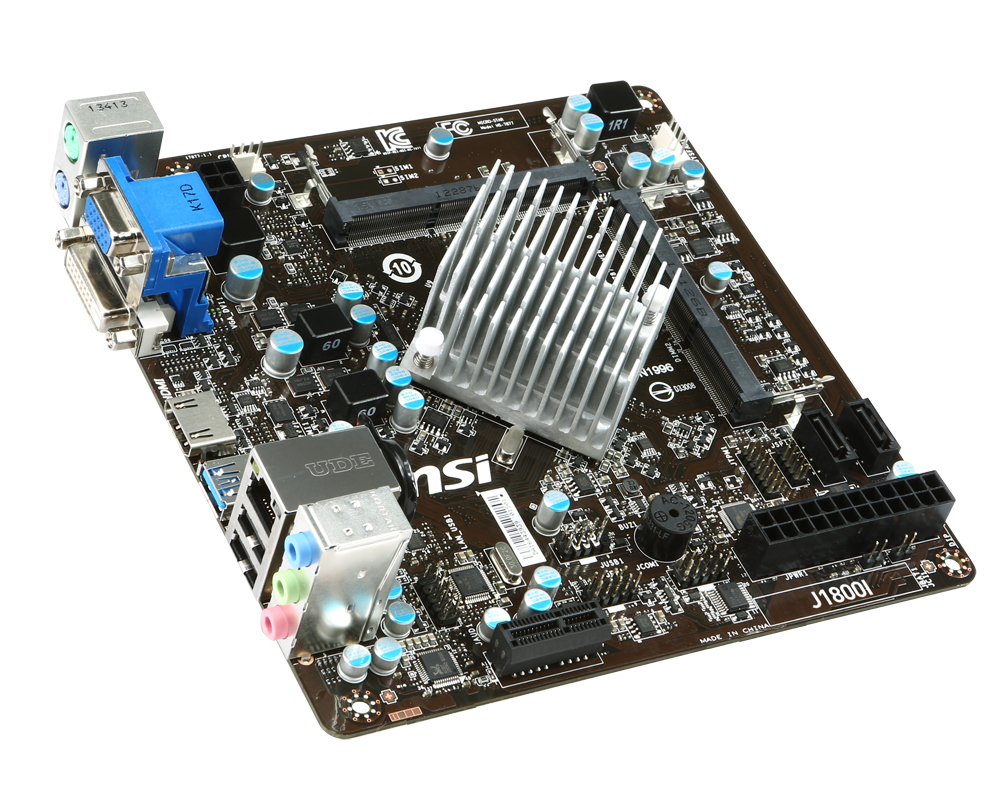

MSI J1800I NA (integrated CPU) mini ITX

MSI J1800I NA (integrated CPU) mini ITX

Model J1800IPart no. 7877-001REAN 4719072326999

52 specifications
  • ProcessorJ1800
  • Processor manufacturerIntel
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA II
  • Maximum graphics card memory2048 MB
  • USB 2.0 connectors1
See all specifications

Overview

Processor
J1800
Processor manufacturer
Intel
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA II
Maximum graphics card memory
2048 MB
USB 2.0 connectors
1
Brand
MSI
Category
Motherboard
Model
J1800I
Part number
7877-001R
EAN / UPC
4719072326999, 824142019795, 4053162789951, 5052184150229 +1 more
Also known as
MSI J1800I NA (integrated CPU) mini ITX

Specifications

52 specifications in 11 groups

Processor

Processor manufacturerIntel
Processor socketNA (integrated CPU)
Compatible processor seriesNot supported
Maximum number of SMP processors1
Processor modelJ1800

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots2
Memory slots typeSO-DIMM
Memory channelsDual-channel
Supported memory clock speeds1066,1333 MHz
Maximum internal memory8 GB

Storage controllers

Supported storage drive interfacesSATA II

Graphics

Maximum graphics card memory2048 MB
Parallel processing technology supportNot supported
Graphics card familyIntel
Graphics cardHD Graphics
DirectX version11.1

Internal I/O

USB 2.0 connectors1
USB 3.2 Gen 1 (3.1 Gen 1) connectors0
Number of SATA III connectors0
Number of SATA II connectors2
Number of Parallel ATA connectors0
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
Number of EATX power connectors1
CPU fan connectorYes
Number of chassis fan connectors1
Chassis intrusion connectorYes
Serial port headers1
TPM connectorYes

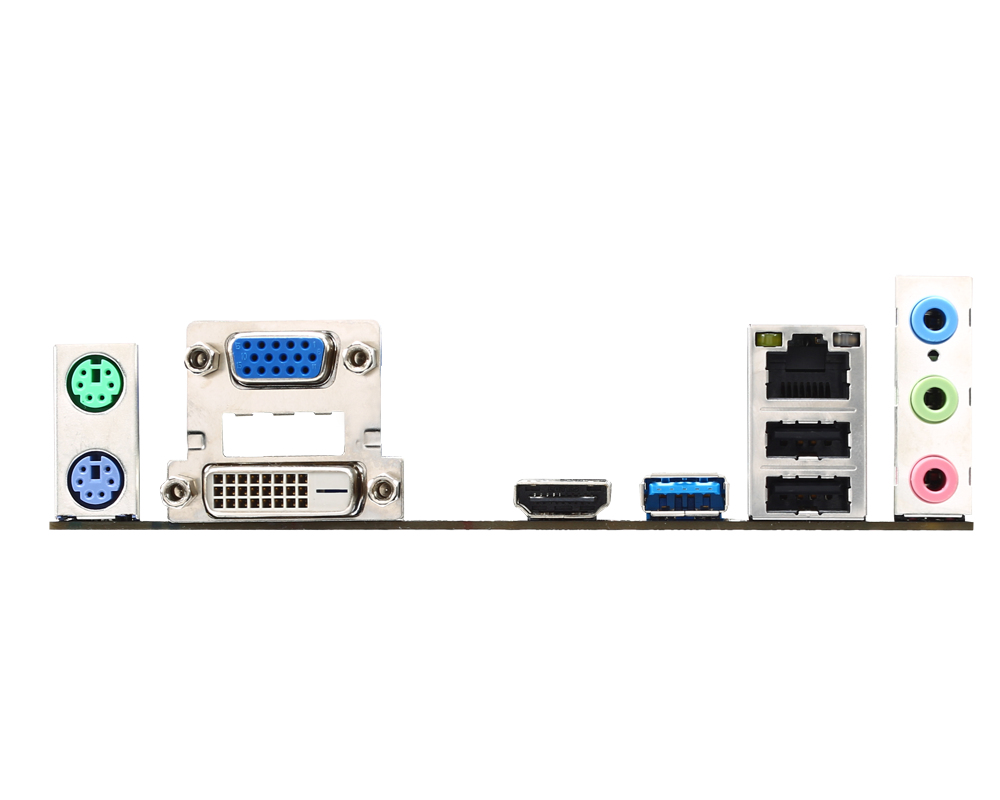

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity1
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity2
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity1
DVI-D ports quantity1
Headphone outputs1
Microphone inYes

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerRealtek RTL8111G

Features

Motherboard form factormini ITX
Motherboard chipset familyIntel
Audio chipRealtek ALC887
Power source typeATX

Expansion slots

PCI Express x1 (Gen 2.x) slots1

BIOS

Clear CMOS jumperYes

Weight & dimensions

Width170 mm
Depth170 mm
