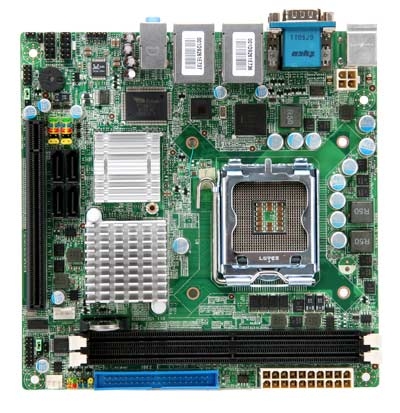

MSI IM-Q35 LGA 775 (Socket T) mini ITX
Model IM-Q35Part no. 609-9820-010EAN 4719072090692
26 specifications
- Processor manufacturerIntel
- Number of memory slots2
- Maximum graphics card memory384 MB
- USB 2.0 connectors4
- Motherboard form factormini ITX
- PCI Express x16 slots1
Overview
- Processor manufacturer
- Intel
- Number of memory slots
- 2
- Maximum graphics card memory
- 384 MB
- USB 2.0 connectors
- 4
- Motherboard form factor
- mini ITX
- PCI Express x16 slots
- 1
- Brand
- MSI
- Category
- Motherboard
- Model
- IM-Q35
- Part numbers
- 609-9820-010, 9820-010
- EAN / UPC
- 4719072090692, 816909045413
- Also known as
- MSI IM-Q35 LGA 775 (Socket T) mini ITX
Specifications
26 specifications in 9 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 775 (Socket T) |
Memory
| Specification | Value |
|---|---|
| Number of memory slots | 2 |
| Maximum internal memory | 4 GB |
Graphics
| Specification | Value |
|---|---|
| Maximum graphics card memory | 384 MB |
| Graphics card | GMA 3100 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 4 |
| Number of SATA connectors | 4 |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 0 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
Features
| Specification | Value |
|---|---|
| Motherboard form factor | mini ITX |
| Audio chip | Realtek ALC888 |
| Audio output channels | 5.1 channels |
| Power source type | ATX |
| Certification | FCC Cl. B/ CE / C-Tick / BSMI / VCCI |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 slots | 1 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 60 °C |
| Storage relative humidity (H-H) | -20 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 170 mm |
| Depth | 170 mm |
What people say
Reviews & ratings
MSI IM-Q35 LGA 775 (Socket T) mini ITX
No reviews yet
Be the first to tell others how MSI IM-Q35 LGA 775 (Socket T) mini ITX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare MSI IM-Q35 LGA 775 (Socket T) mini ITX
All motherboard comparisons- MSI IM-Q35 LGA 775 (Socket T) mini ITX vsMSI G41M2-FD LGA 775 (Socket T) micro ATXCompare specs
- MSI IM-Q35 LGA 775 (Socket T) mini ITX vsMSI G41M-FD motherboard LGA 775 (Socket T) micro ATXCompare specs
- MSI IM-Q35 LGA 775 (Socket T) mini ITX vsMSI MS-9A07 Socket 478 mini ITXCompare specs
- MSI IM-Q35 LGA 775 (Socket T) mini ITX vsMSI IM-945GSE-A Socket 479 ATXCompare specs

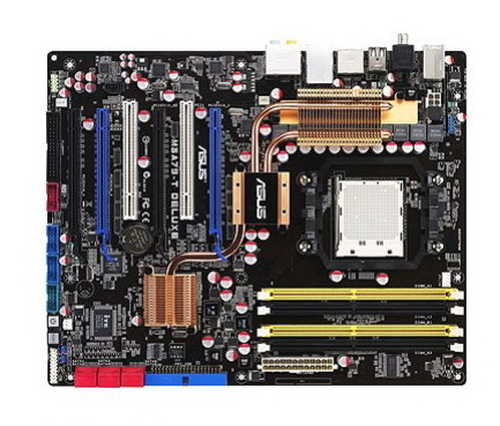

- MSI IM-Q35 LGA 775 (Socket T) mini ITX vsASUS M4A79 DeluxeCompare specs
- MSI IM-Q35 LGA 775 (Socket T) mini ITX vsASUS P5KPL-AM SE/C/SICompare specs

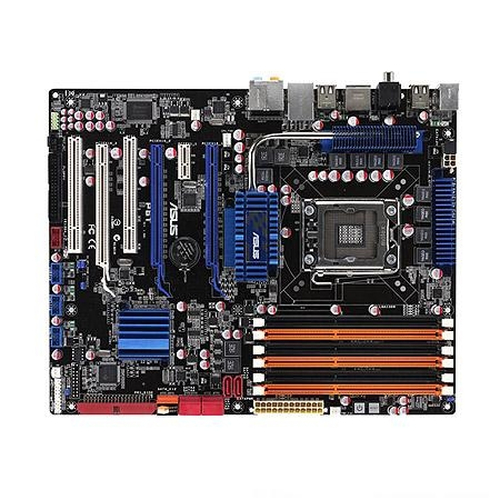

- MSI IM-Q35 LGA 775 (Socket T) mini ITX vsASUS P6T Socket B (LGA 1366) ATXCompare specs

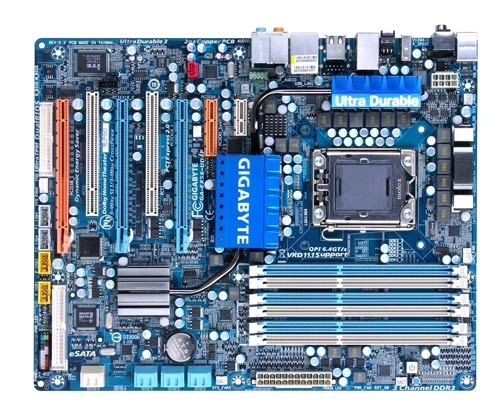

- MSI IM-Q35 LGA 775 (Socket T) mini ITX vsGIGABYTE GA-EX58-UD4P motherboard Socket B (LGA 1366) ATXCompare specs
