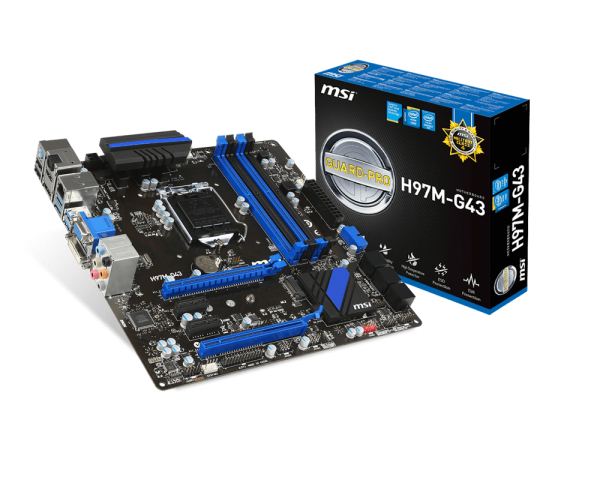

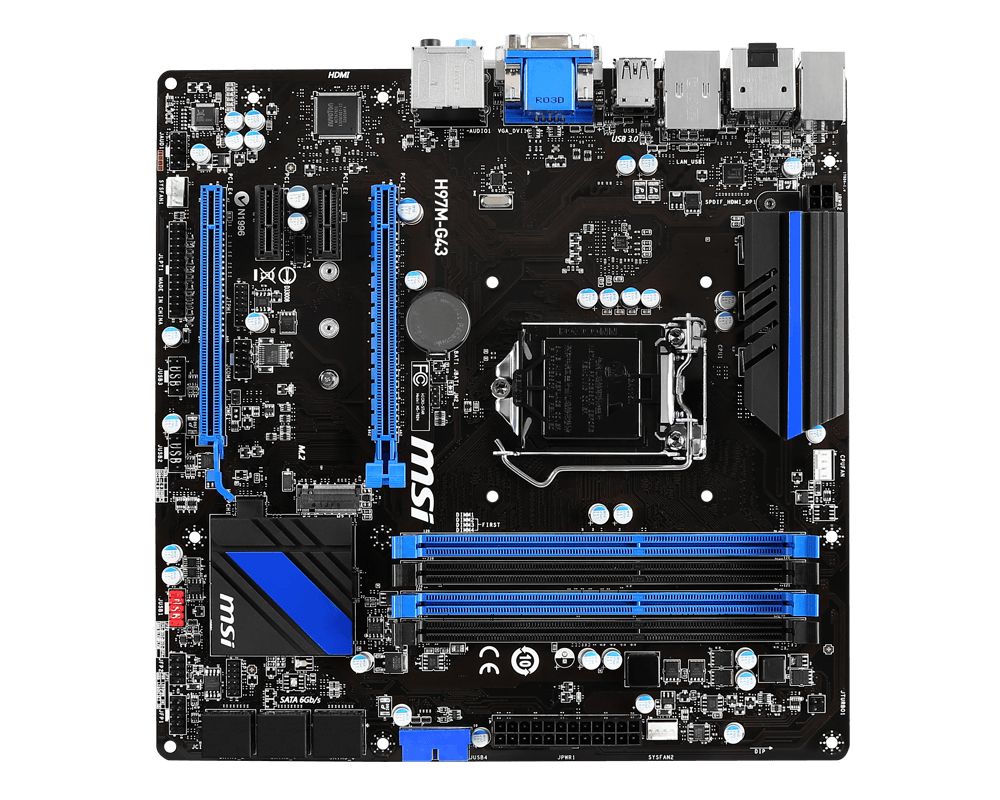

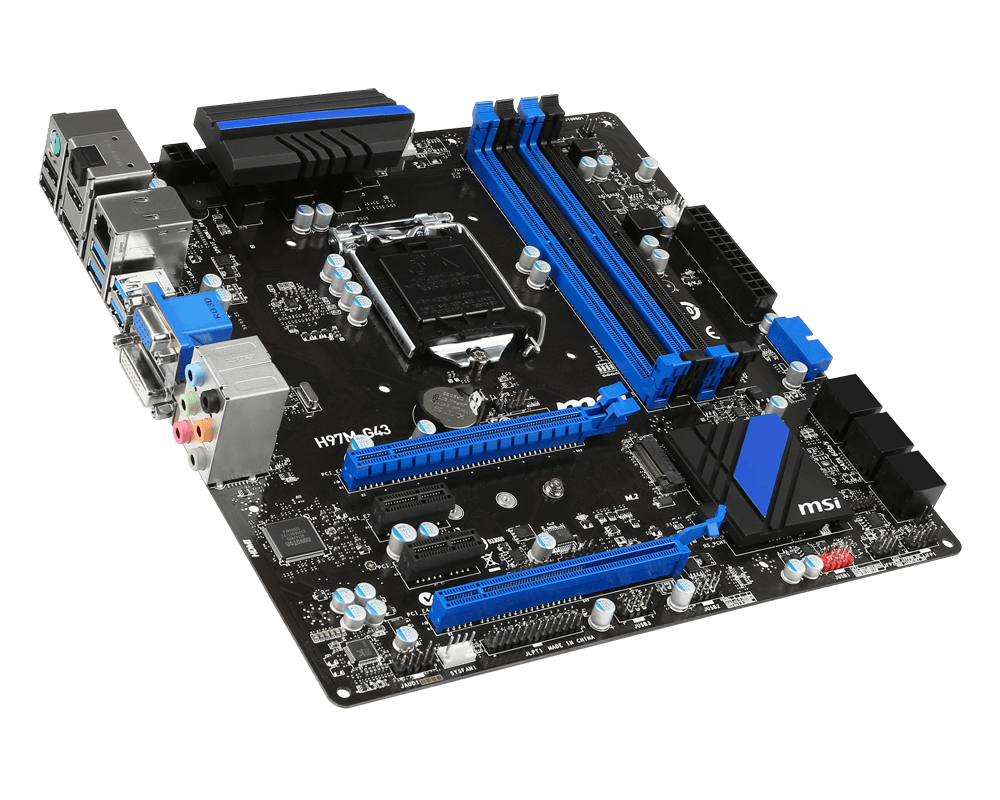

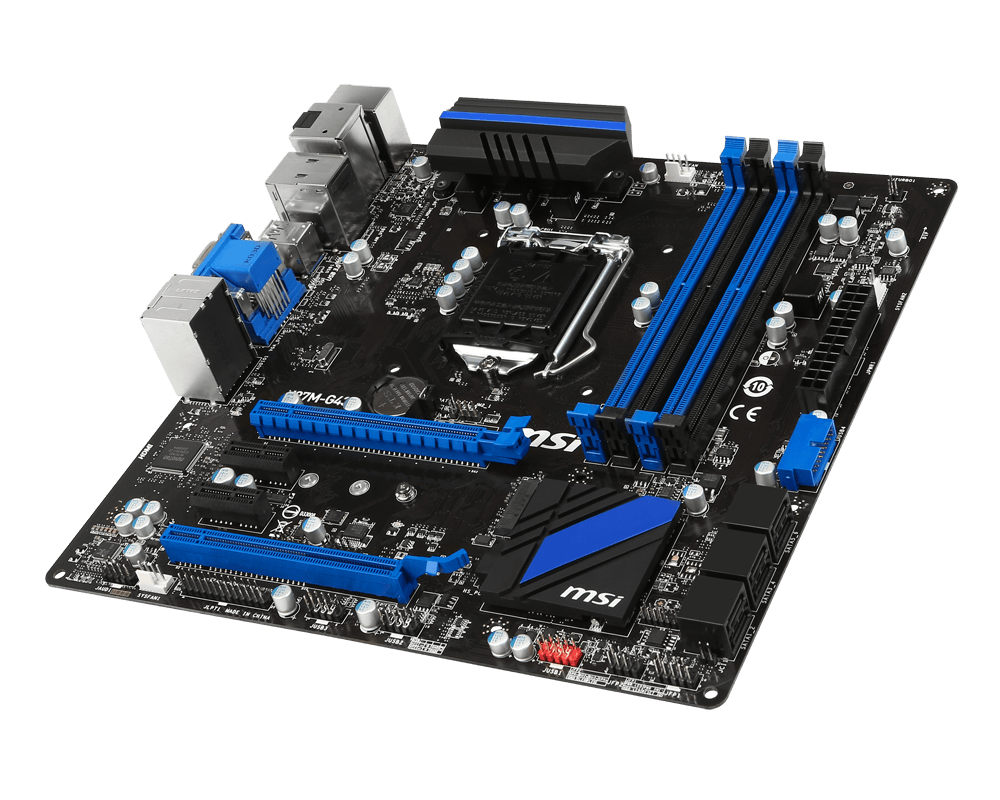

MSI H97M-G43 Intel® H97 LGA 1150 (Socket H3) micro ATX

MSI H97M-G43 Intel® H97 LGA 1150 (Socket H3) micro ATX

Model H97M-G43Part no. 7924-002REAN 8241420244168

58 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA
  • Maximum resolution4096 x 2304 pixels
  • USB 2.0 connectors3
  • USB 2.0 ports quantity2
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA
Maximum resolution
4096 x 2304 pixels
USB 2.0 connectors
3
USB 2.0 ports quantity
2
Brand
MSI
Category
Motherboard
Model
H97M-G43
Part number
7924-002R
EAN / UPC
8241420244168, 2504111411130, 4053162668102, 4526541792427 +3 more
Also known as
MSI H97M-G43 Intel® H97 LGA 1150 (Socket H3) micro ATX

Specifications

58 specifications in 11 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1150 (Socket H3)
Compatible processor seriesIntel® Celeron®, Intel® Pentium®

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds1066,1333,1600 MHz
Maximum internal memory32 GB
Unbuffered memoryYes

Storage controllers

Supported storage drive interfacesSATA
RAID levels0, 1, 5, 10

Graphics

Maximum resolution4096 x 2304 pixels
Number of displays supported3

Internal I/O

USB 2.0 connectors3
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
Number of SATA connectors6
Number of Parallel ATA connectors0
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors1
Chassis intrusion connectorYes
Peripheral (Molex) power connectors (4-pin)1
Serial port headers1
TPM connectorYes

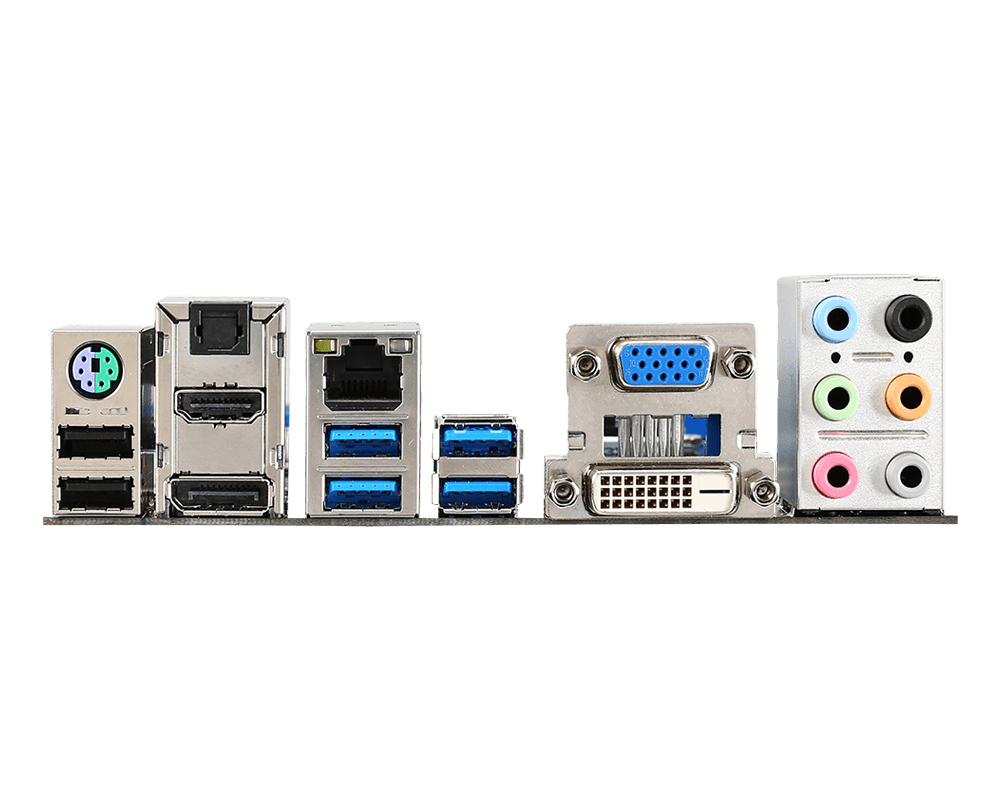

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
Ethernet LAN (RJ-45) ports1
PS/2 ports quantity1
VGA (D-Sub) ports quantity1
HDMI ports quantity1
DVI-D ports quantity1
DisplayPorts quantity1
Headphone outputs6
S/PDIF out portYes

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerRealtek RTL8111G
BluetoothNo

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyIntel
Motherboard chipsetIntel® H97
Audio chipRealtek ALC892
Audio output channels7.1 channels
Power source typeATX
Windows operating systems supportedYes

Expansion slots

PCI Express x1 slots2
PCI Express x1 (Gen 2.x) slots2
PCI Express x16 slots2
PCI Express x16 (Gen 2.x) slots1
PCI Express x16 (Gen 3.x) slots1

BIOS

BIOS typeUEFI
Clear CMOS jumperYes

Weight & dimensions

Width244 mm
Depth244 mm
