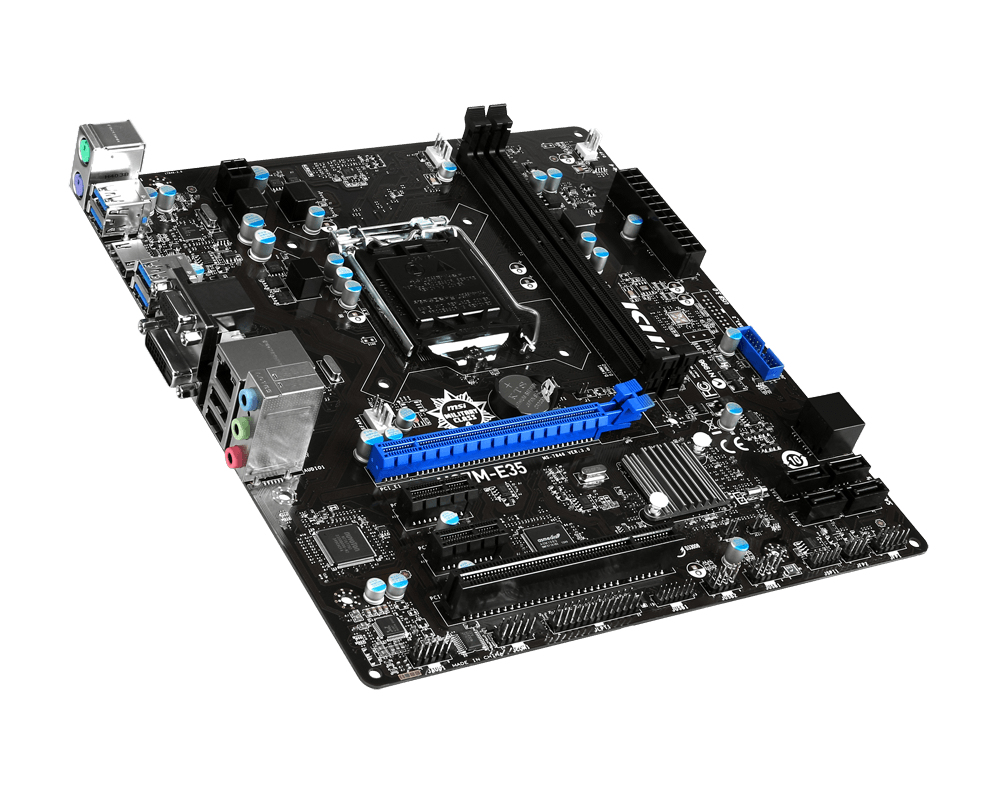

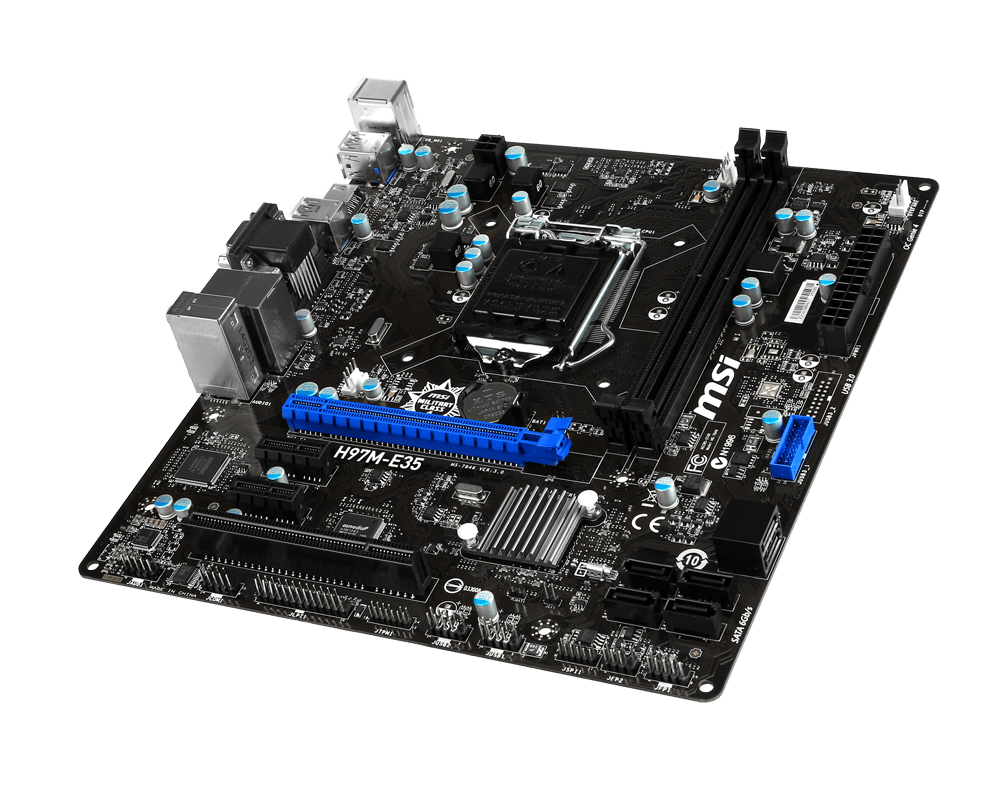

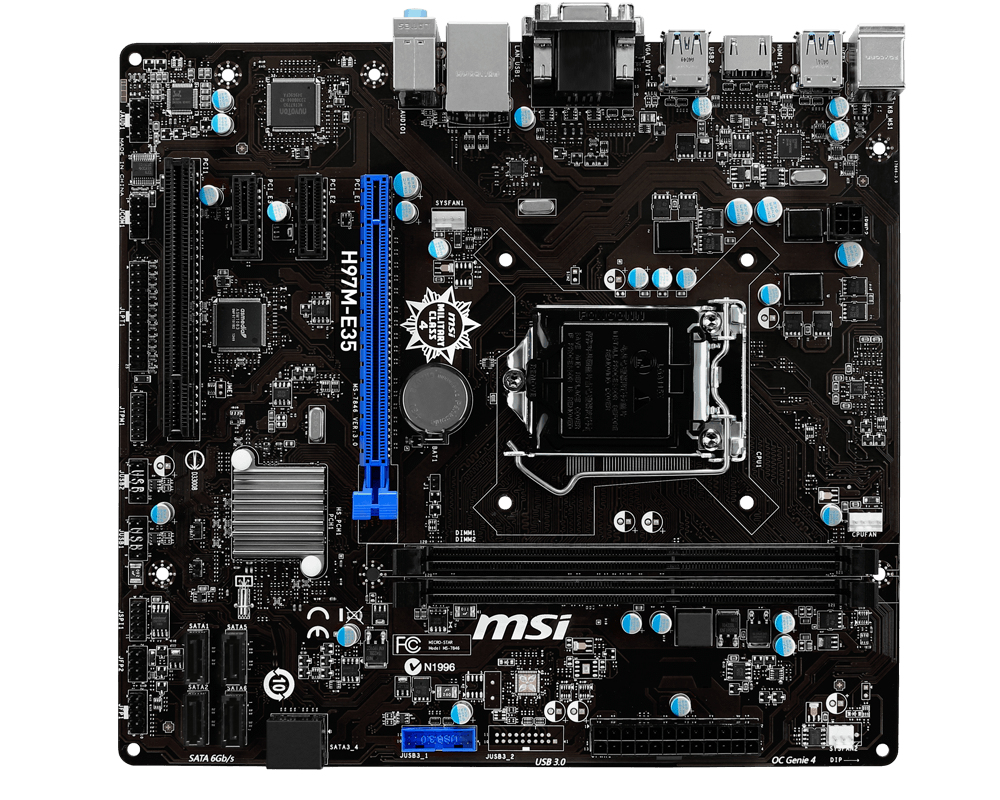

MSI H97M-E35 Intel® H97 LGA 1150 (Socket H3) micro ATX
Model H97M-E35Part no. 7846-007REAN 5054230929537
54 specifications
- Processor manufacturerIntel
- Supported memory typesDDR3-SDRAM
- Supported storage drive interfacesSATA
- USB 2.0 connectors2
- Ethernet LANYes
- Component forPC
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR3-SDRAM
- Supported storage drive interfaces
- SATA
- USB 2.0 connectors
- 2
- Ethernet LAN
- Yes
- Component for
- PC
- Brand
- MSI
- Category
- Motherboard
- Model
- H97M-E35
- Part number
- 7846-007R
- EAN / UPC
- 5054230929537, 4053162667822, 4719072343101, 5054629454855 +1 more
- Also known as
- MSI H97M-E35 Intel® H97 LGA 1150 (Socket H3) micro ATX
Specifications
54 specifications in 11 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1150 (Socket H3) |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR3-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 1066,1333,1600 MHz |
| Maximum internal memory | 16 GB |
| Unbuffered memory | Yes |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA |
| RAID levels | 0, 1, 5, 10 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 6 |
| Number of SATA connectors | 6 |
| Number of Parallel ATA connectors | 1 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Chassis intrusion connector | Yes |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| Serial port headers | 1 |
| TPM connector | Yes |

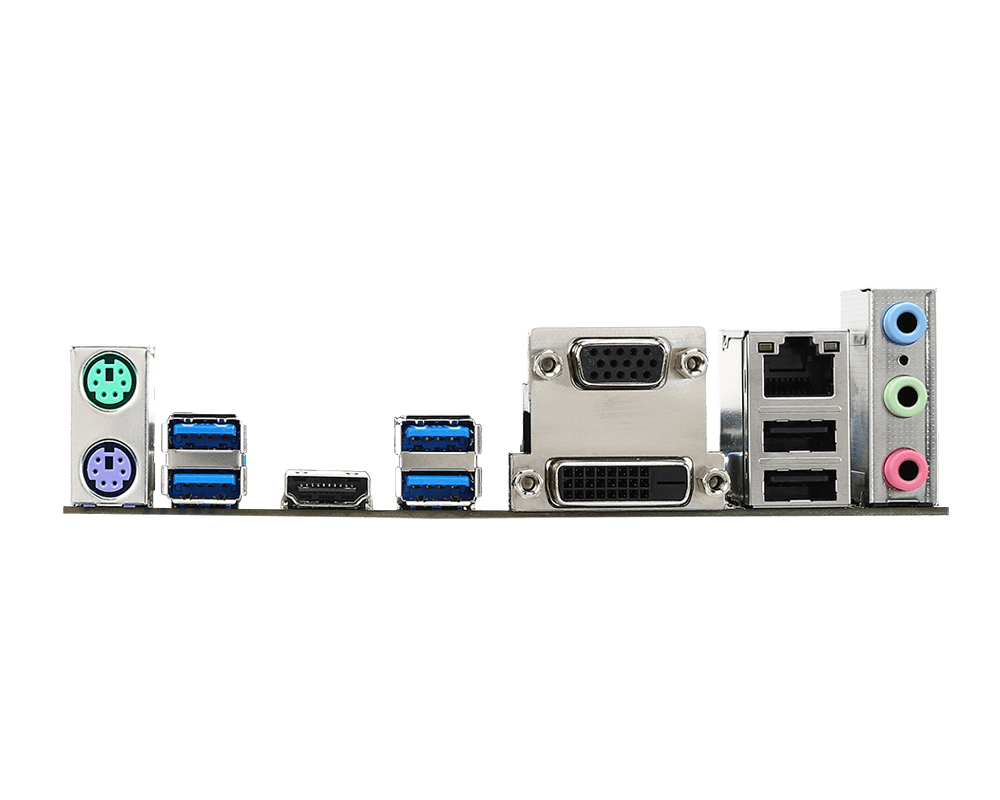

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 1 |
| Headphone outputs | 3 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Realtek RTL8111G |
| Bluetooth | No |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel® H97 |
| Audio chip | Realtek ALC887 |
| Power source type | ATX |
| Windows operating systems supported | Yes |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 slots | 2 |
| PCI Express x1 (Gen 2.x) slots | 2 |
| PCI Express x16 slots | 1 |
| PCI slots | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI |
| Clear CMOS jumper | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 225 mm |
Other features
| Specification | Value |
|---|---|
| Back-to-BIOS button | Yes |
What people say
Reviews & ratings
MSI H97M-E35 Intel® H97 LGA 1150 (Socket H3) micro ATX
No reviews yet
Be the first to tell others how MSI H97M-E35 Intel® H97 LGA 1150 (Socket H3) micro ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare MSI H97M-E35 Intel® H97 LGA 1150 (Socket H3) micro ATX
All motherboard comparisons- MSI H97M-E35 Intel® H97 LGA 1150 (Socket H3) micro ATX vsMSI H97I ACCompare specs
- MSI H97M-E35 Intel® H97 LGA 1150 (Socket H3) micro ATX vsMSI H97 GUARD-PROCompare specs
- MSI H97M-E35 Intel® H97 LGA 1150 (Socket H3) micro ATX vsMSI Z97 GAMING 9 ACCompare specs
- MSI H97M-E35 Intel® H97 LGA 1150 (Socket H3) micro ATX vsMSI Z97 GAMING 5Compare specs

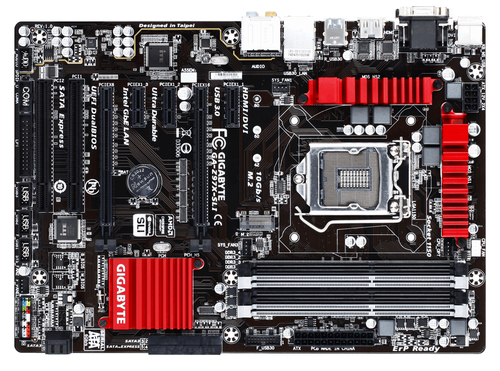

- MSI H97M-E35 Intel® H97 LGA 1150 (Socket H3) micro ATX vsGIGABYTE GA-Z97X-SLI motherboard Intel® Z97 LGA 1150 (Socket H3) ATXCompare specs

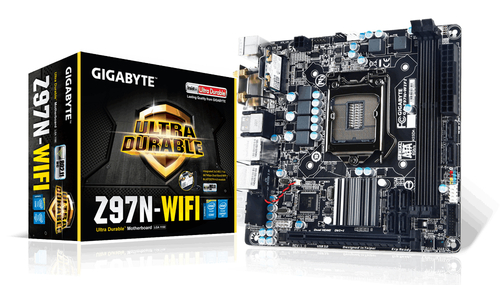

- MSI H97M-E35 Intel® H97 LGA 1150 (Socket H3) micro ATX vsGIGABYTE GA-Z97N-WIFI motherboard Intel® Z97 LGA 1150 (Socket H3) mini ITXCompare specs
