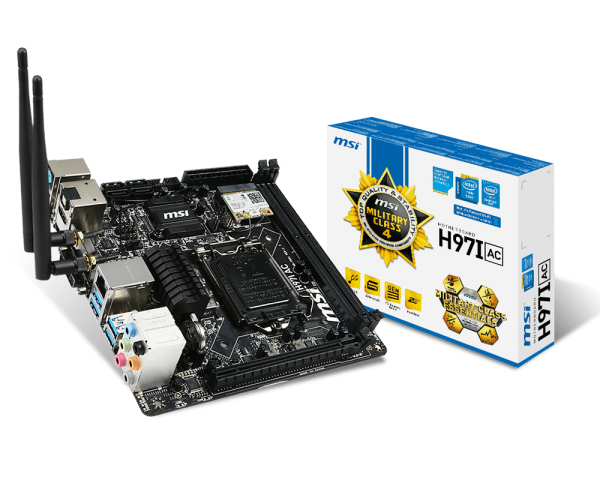

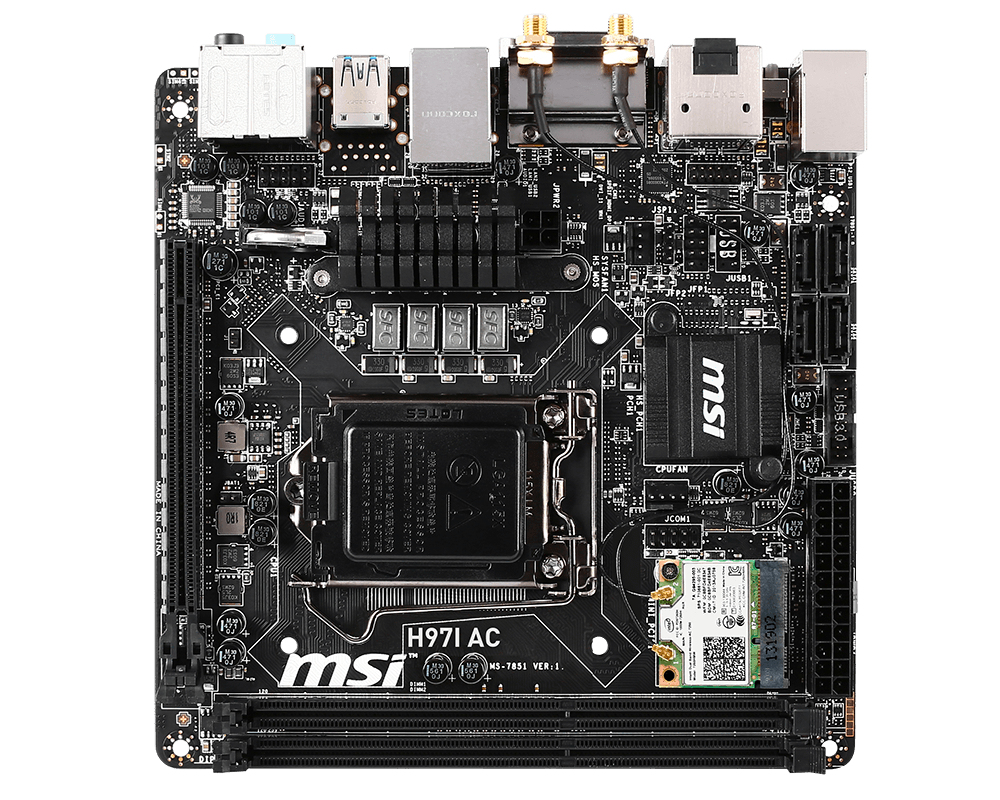

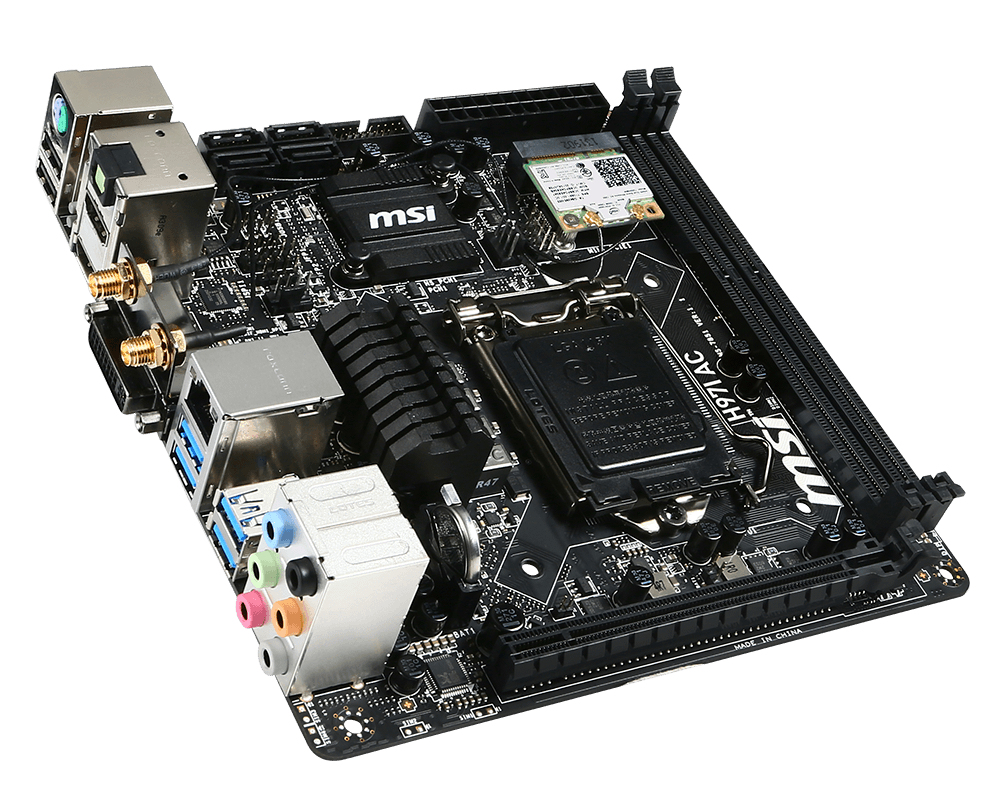

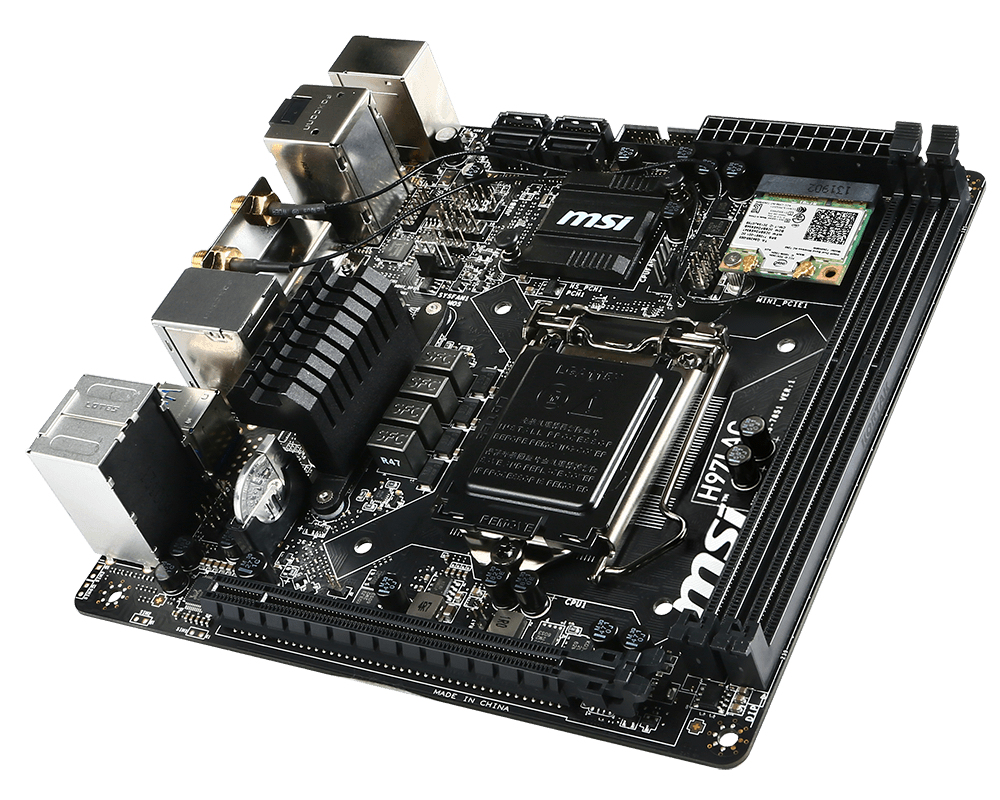

MSI H97I AC
Model H97I ACPart no. 7851-002REAN 863121556616
55 specifications
- Processor manufacturerIntel
- Supported memory typesDDR3-SDRAM
- Supported storage drive interfacesSATA III
- Maximum resolution4096 x 2160 pixels
- USB 2.0 connectors1
- USB 2.0 ports quantity2
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR3-SDRAM
- Supported storage drive interfaces
- SATA III
- Maximum resolution
- 4096 x 2160 pixels
- USB 2.0 connectors
- 1
- USB 2.0 ports quantity
- 2
- Brand
- MSI
- Category
- Motherboard
- Model
- H97I AC
- Part number
- 7851-002R
- EAN / UPC
- 863121556616, 4053162667884, 4719072345938, 8241420243550
- Also known as
- MSI H97I AC Intel® H97 LGA 1150 (Socket H3) mini ITX
Specifications
55 specifications in 12 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1150 (Socket H3) |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR3-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 1066,1333,1600 MHz |
| Maximum internal memory | 16 GB |
| Unbuffered memory | Yes |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA III |
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| Maximum resolution | 4096 x 2160 pixels |
| Number of displays supported | 3 |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 1 |
| Chassis intrusion connector | Yes |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| Serial port headers | 1 |

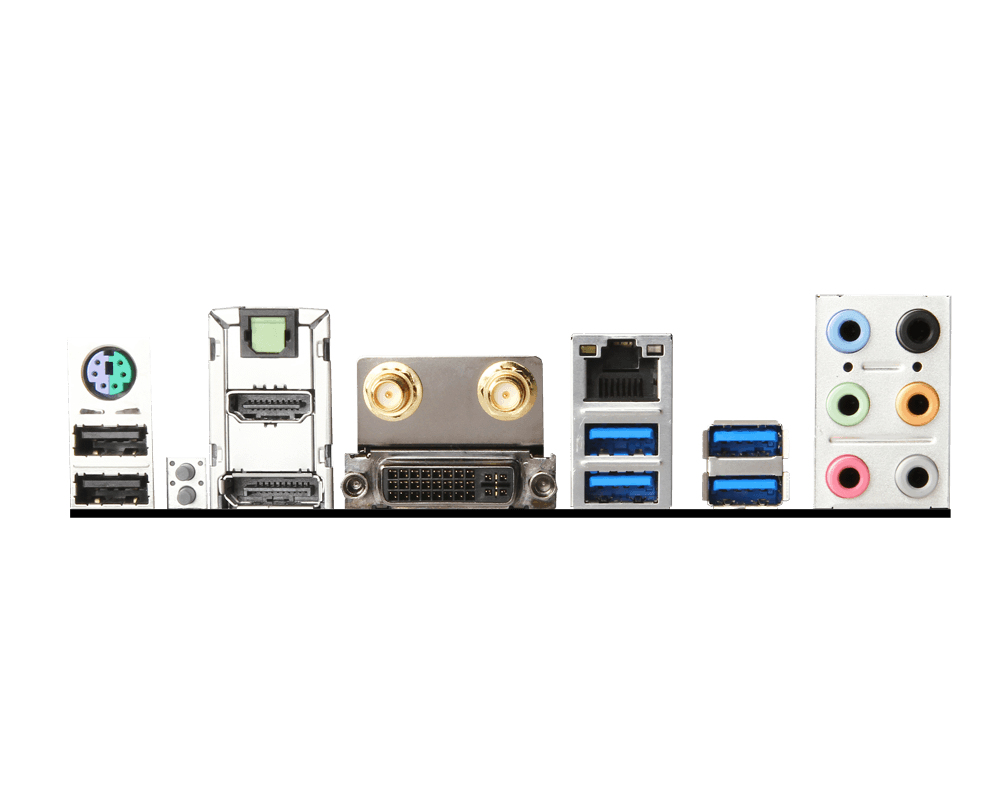

Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| PS/2 ports quantity | 1 |
| HDMI ports quantity | 1 |
| DVI-D ports quantity | 0 |
| DVI-I ports quantity | 1 |
| DisplayPorts quantity | 1 |
| Headphone outputs | 6 |
| S/PDIF out port | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Realtek 8111G |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | mini ITX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel® H97 |
| Audio chip | Realtek ALC892 |
| Audio output channels | 7.1 channels |
| Power source type | ATX |
| Windows operating systems supported | Yes |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x16 slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| Mini PCI Express slot (half-length) | 1 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI |
| Clear CMOS jumper | Yes |
| Clear CMOS button | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 170 mm |
| Depth | 170 mm |
Other features
| Specification | Value |
|---|---|
| Back-to-BIOS button | Yes |
What people say
Reviews & ratings
MSI H97I AC
- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare MSI H97I AC
All motherboard comparisons- MSI H97I AC vsMSI H97 GUARD-PROCompare specs
- MSI H97I AC vsMSI H97 PC MATECompare specs
- MSI H97I AC vsMSI H97M-E35 Intel® H97 LGA 1150 (Socket H3) micro ATXCompare specs
- MSI H97I AC vsMSI Z97 GAMING 9 ACCompare specs
- MSI H97I AC vsASUS SABERTOOTH Z97 MARK2Compare specs

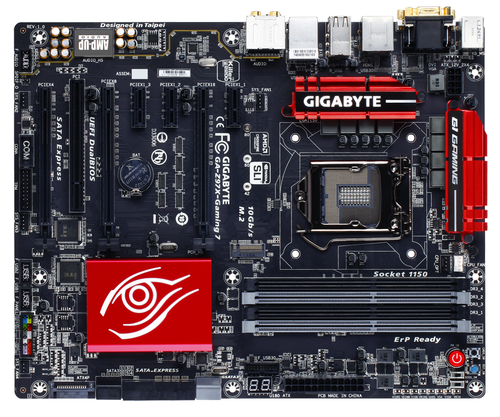

- MSI H97I AC vsGIGABYTE GA-Z97X-Gaming 7Compare specs

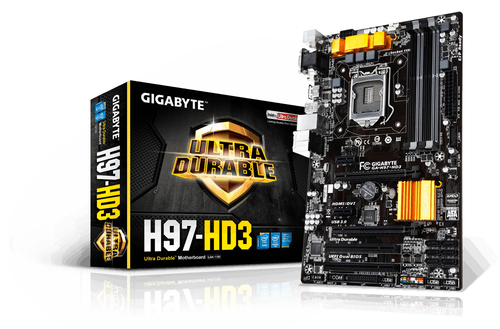

- MSI H97I AC vsGIGABYTE GA-H97-HD3 motherboard Intel® H97 LGA 1150 (Socket H3) ATXCompare specs
