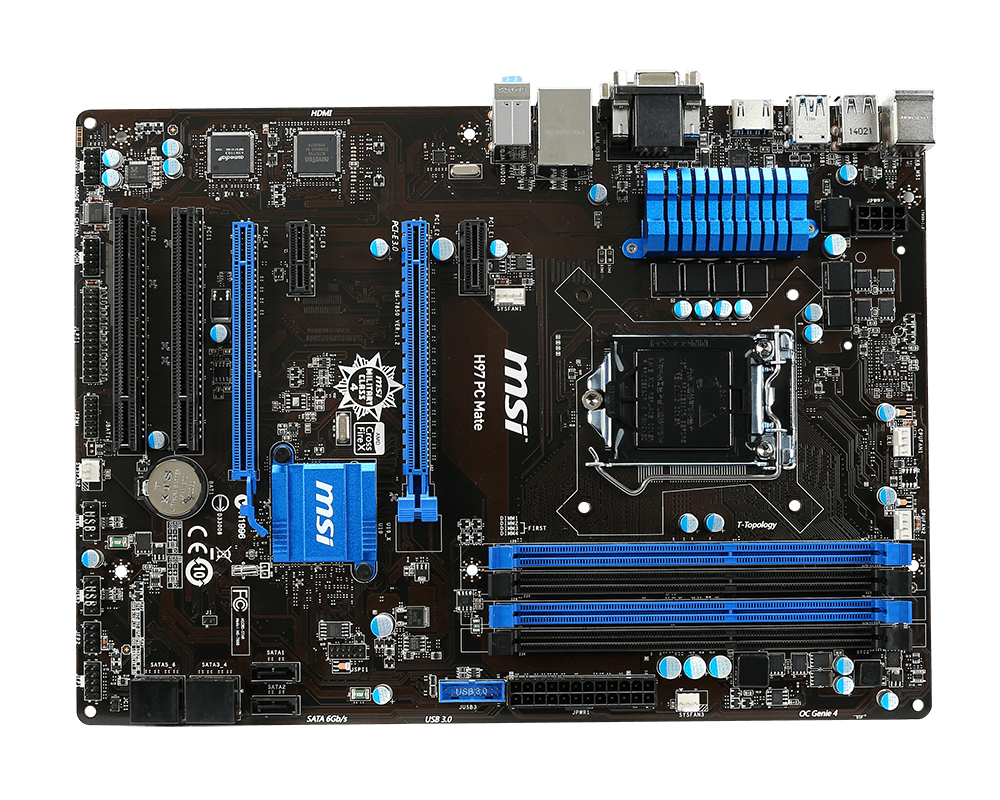

MSI H97 PC MATE

MSI H97 PC MATE

Model H97 PC MATEPart no. 7850-005REAN 8241420230062

57 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA, SATA III
  • Maximum resolution4096 x 2160 pixels
  • USB 2.0 connectors2
  • USB 2.0 ports quantity4
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA, SATA III
Maximum resolution
4096 x 2160 pixels
USB 2.0 connectors
2
USB 2.0 ports quantity
4
Brand
MSI
Category
Motherboard
Model
H97 PC MATE
Part number
7850-005R
EAN / UPC
8241420230062, 740617054699, 4053162667860, 4719072343125 +2 more
Also known as
MSI H97 PC MATE Intel® H97 LGA 1150 (Socket H3) ATX

Specifications

57 specifications in 12 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1150 (Socket H3)
Compatible processor seriesIntel® Celeron®, Intel® Pentium®

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds1066,1333,1600 MHz
Maximum internal memory32 GB
Unbuffered memoryYes

Storage controllers

Supported storage drive interfacesSATA, SATA III
RAID levels0, 1, 5, 10

Graphics

Maximum resolution4096 x 2160 pixels
Number of displays supported3

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
Number of SATA III connectors6
Number of SATA connectors6
Number of Parallel ATA connectors1
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of chassis fan connectors1
Chassis intrusion connectorYes
Peripheral (Molex) power connectors (4-pin)1
EPS power connector (8-pin)Yes
Serial port headers1
TPM connectorYes

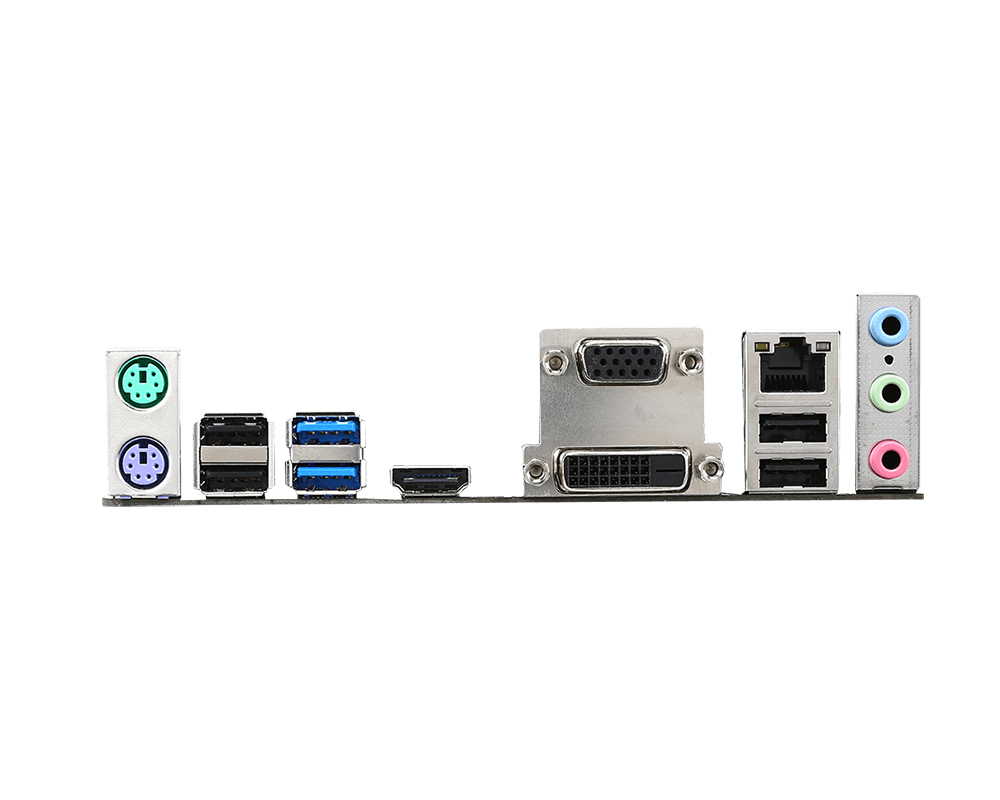

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
Ethernet LAN (RJ-45) ports1
PS/2 ports quantity2
VGA (D-Sub) ports quantity1
HDMI ports quantity1
DVI-D ports quantity1
Headphone outputs3

Network

Ethernet LANYes
Ethernet interface typeFast Ethernet
LAN controllerRealtek RTL8111G
BluetoothNo

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyIntel
Motherboard chipsetIntel® H97
Audio chipRealtek ALC887
Power source typeATX
Windows operating systems supportedYes

Expansion slots

PCI Express x1 slots2
PCI Express x1 (Gen 2.x) slots2
PCI Express x16 slots2
PCI slots2

BIOS

BIOS typeUEFI
Clear CMOS jumperYes

Weight & dimensions

Width305 mm
Depth220 mm

Other features

Back-to-BIOS buttonYes
