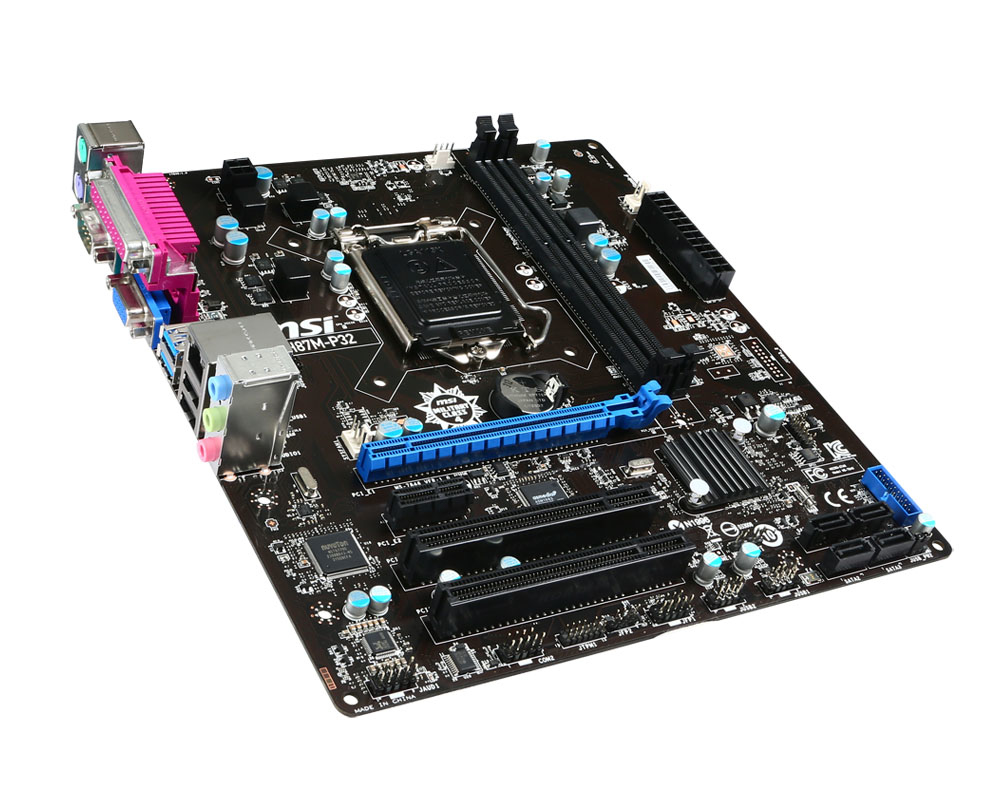

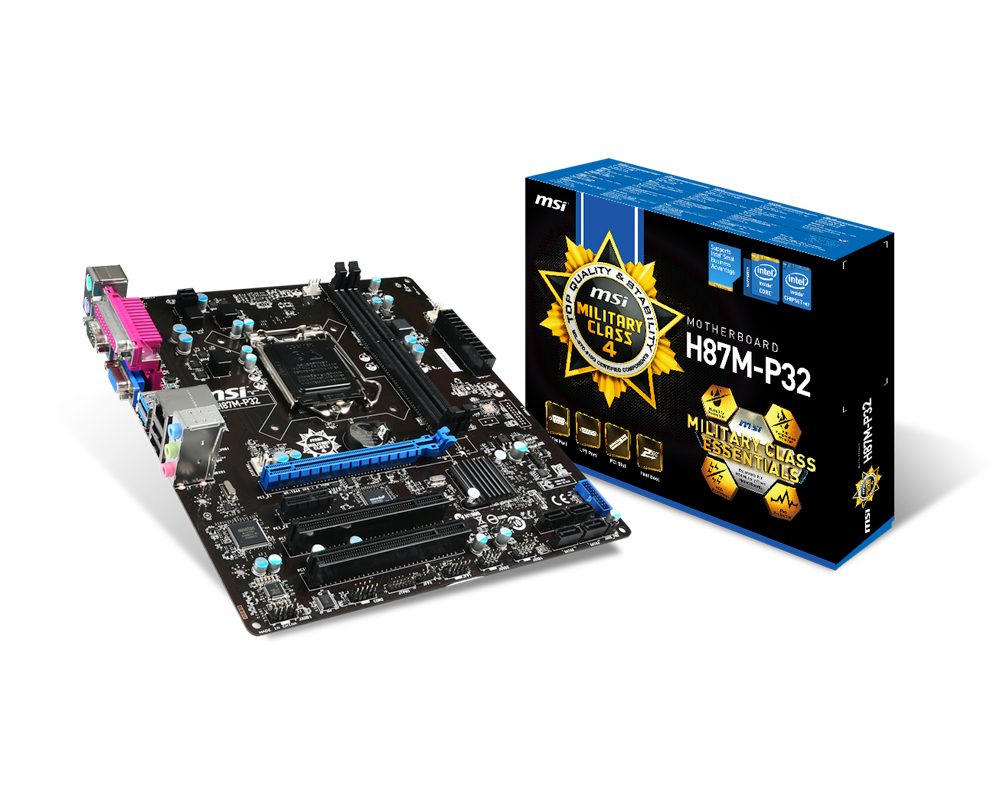

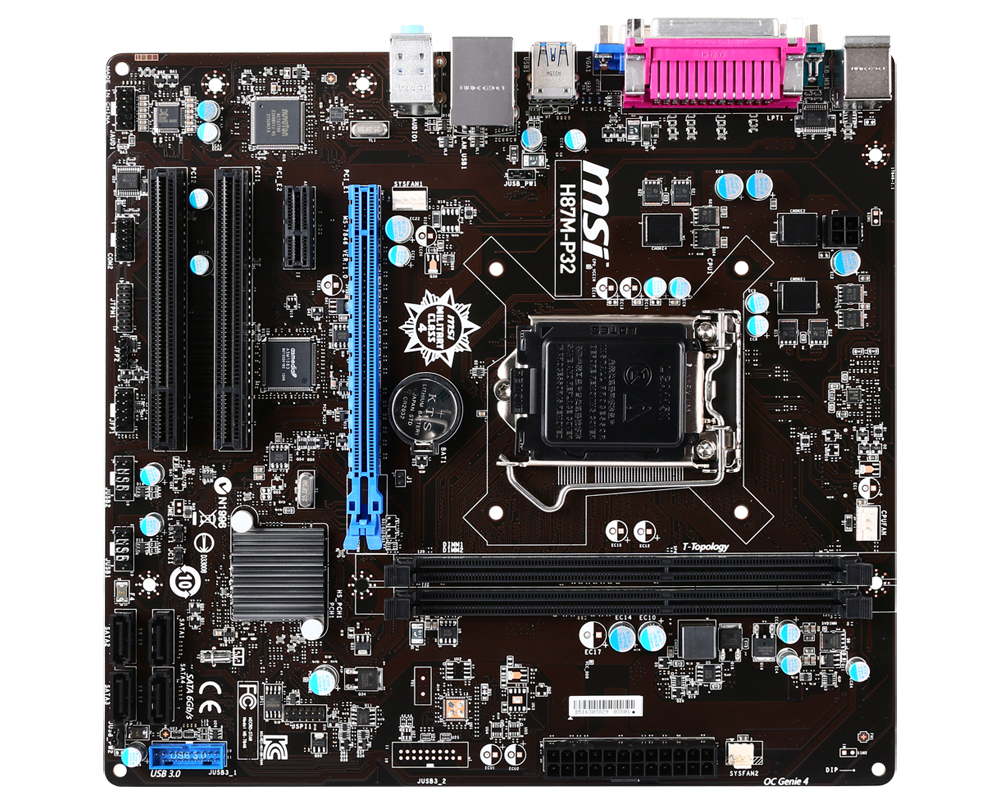

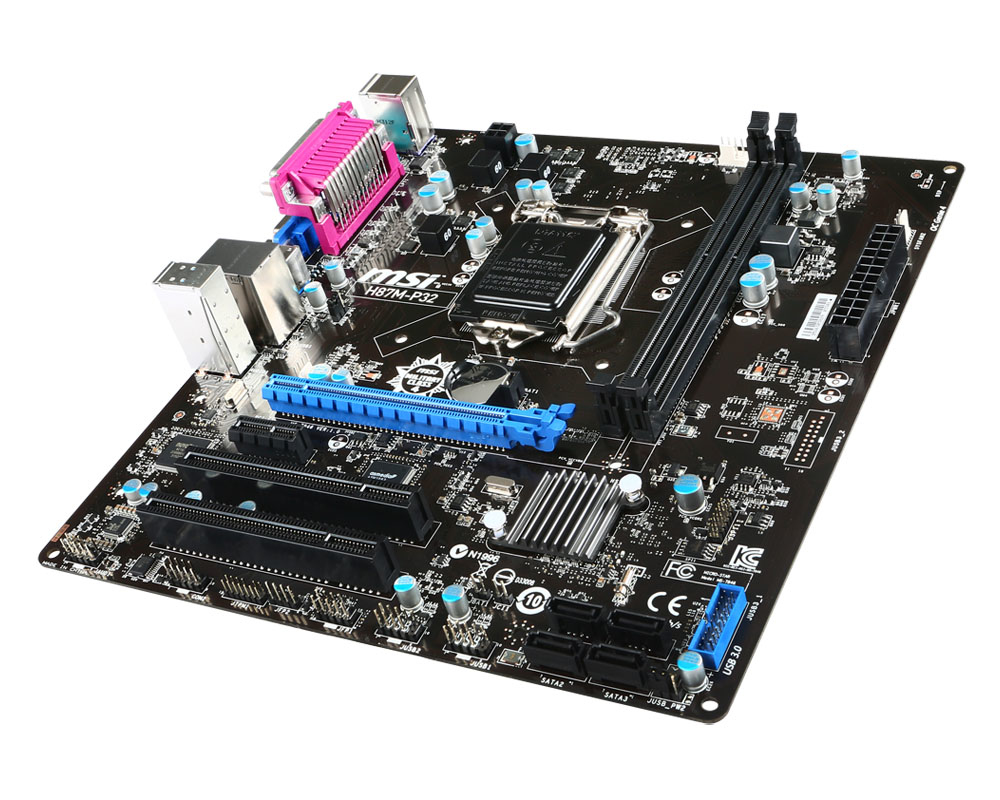

MSI H87M-P32 Intel® H87 LGA 1150 (Socket H3) micro ATX
Model H87M-P32Part no. 7846-020REAN 5054484628453
66 specifications
- Processor manufacturerIntel
- Supported memory typesDDR3-SDRAM
- Supported storage drive interfacesSATA III
- Parallel processing technology supportNot supported
- USB 2.0 connectors2
- Ethernet LANYes
Overview
- Processor manufacturer
- Intel
- Supported memory types
- DDR3-SDRAM
- Supported storage drive interfaces
- SATA III
- Parallel processing technology support
- Not supported
- USB 2.0 connectors
- 2
- Ethernet LAN
- Yes
- Brand
- MSI
- Category
- Motherboard
- Model
- H87M-P32
- Part number
- 7846-020R
- EAN / UPC
- 5054484628453
- Also known as
- MSI H87M-P32 Intel® H87 LGA 1150 (Socket H3) micro ATX
Specifications
66 specifications in 13 groups
Processor
| Specification | Value |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1150 (Socket H3) |
| Compatible processor series | Intel® Celeron®, Intel® Pentium® |
| Intel Core i3/i5/i7/i9 series | i3-4xxx, i5-4xxx, i7-4xxx |
Memory
| Specification | Value |
|---|---|
| Supported memory types | DDR3-SDRAM |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Memory voltage | 1.5 V |
| ECC сompatibility | Non-ECC |
| Supported memory clock speeds | 1066,1333,1600 MHz |
| Maximum internal memory | 16 GB |
| Unbuffered memory | Yes |
Storage controllers
| Specification | Value |
|---|---|
| Supported storage drive interfaces | SATA III |
| RAID levels | 0, 1, 5, 10 |
Graphics
| Specification | Value |
|---|---|
| Parallel processing technology support | Not supported |
| Graphics card family | Intel |
| Maximum resolution | 1920 x 1200 pixels |
| DirectX version | 11 |
| Discrete graphics support | Yes |
Internal I/O
| Specification | Value |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| Number of SATA II connectors | 0 |
| Number of Parallel ATA connectors | 0 |
| Front panel audio connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of chassis fan connectors | 2 |
| Chassis intrusion connector | Yes |
| TPM connector | Yes |
Rear panel I/O ports
| Specification | Value |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| eSATA ports quantity | 0 |
| PS/2 ports quantity | 2 |
| Firewire (IEEE 1394) ports | 0 |
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 0 |
| DVI-D ports quantity | 0 |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Parallel ports quantity | 1 |
| Serial ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| LAN controller | Realtek RTL8111G |
Features
| Specification | Value |
|---|---|
| Component for | PC |
| Motherboard form factor | micro ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel® H87 |
| Audio chip | Realtek ALC887 |
| Audio output channels | 7.1 channels |
| Cooling type | Passive |
| Power source type | ATX |
Expansion slots
| Specification | Value |
|---|---|
| PCI Express x1 (Gen 2.x) slots | 1 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| PCI slots | 2 |
BIOS
| Specification | Value |
|---|---|
| BIOS type | UEFI |
| Clear CMOS jumper | Yes |
Processor special features
| Specification | Value |
|---|---|
| Trusted Platform Module (TPM) | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 244 mm |
| Depth | 228 mm |
Other features
| Specification | Value |
|---|---|
| PCI Express slots quantity | 2 |
| Processor front side bus | 100 MHz |
| Serial port via internal header | Yes |
What people say
Reviews & ratings
MSI H87M-P32 Intel® H87 LGA 1150 (Socket H3) micro ATX
No reviews yet
Be the first to tell others how MSI H87M-P32 Intel® H87 LGA 1150 (Socket H3) micro ATX works for you.
Write the first review- Every rating countsLow ratings are never hidden, removed or pushed down.
- Written by people, never paidNo incentives, no edits — only spam and abuse are removed.
- Private by designOnly the name you choose is shown. No account, no e-mail, nothing tracked.
Compare MSI H87M-P32 Intel® H87 LGA 1150 (Socket H3) micro ATX
All motherboard comparisons- MSI H87M-P32 Intel® H87 LGA 1150 (Socket H3) micro ATX vsMSI Z87-G43 GAMINGCompare specs
- MSI H87M-P32 Intel® H87 LGA 1150 (Socket H3) micro ATX vsMSI Z87-G55 Intel® Z87 LGA 1150 (Socket H3) ATXCompare specs

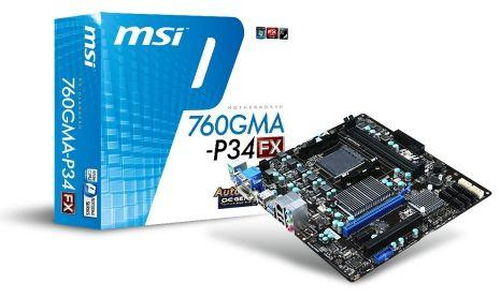

- MSI H87M-P32 Intel® H87 LGA 1150 (Socket H3) micro ATX vsMSI 760GMA-P34 (FX)Compare specs

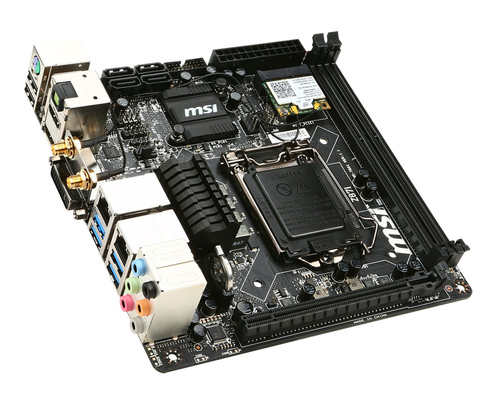

- MSI H87M-P32 Intel® H87 LGA 1150 (Socket H3) micro ATX vsMSI Z87I Intel® Z87 LGA 1150 (Socket H3) mini ITXCompare specs
