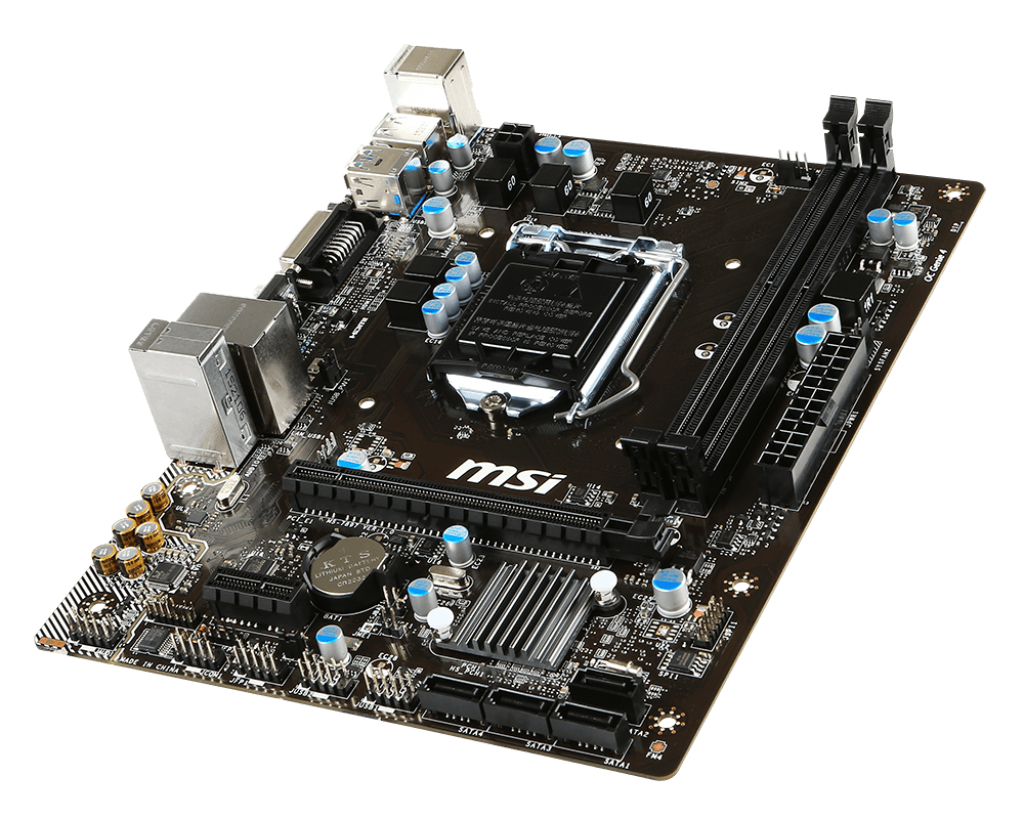

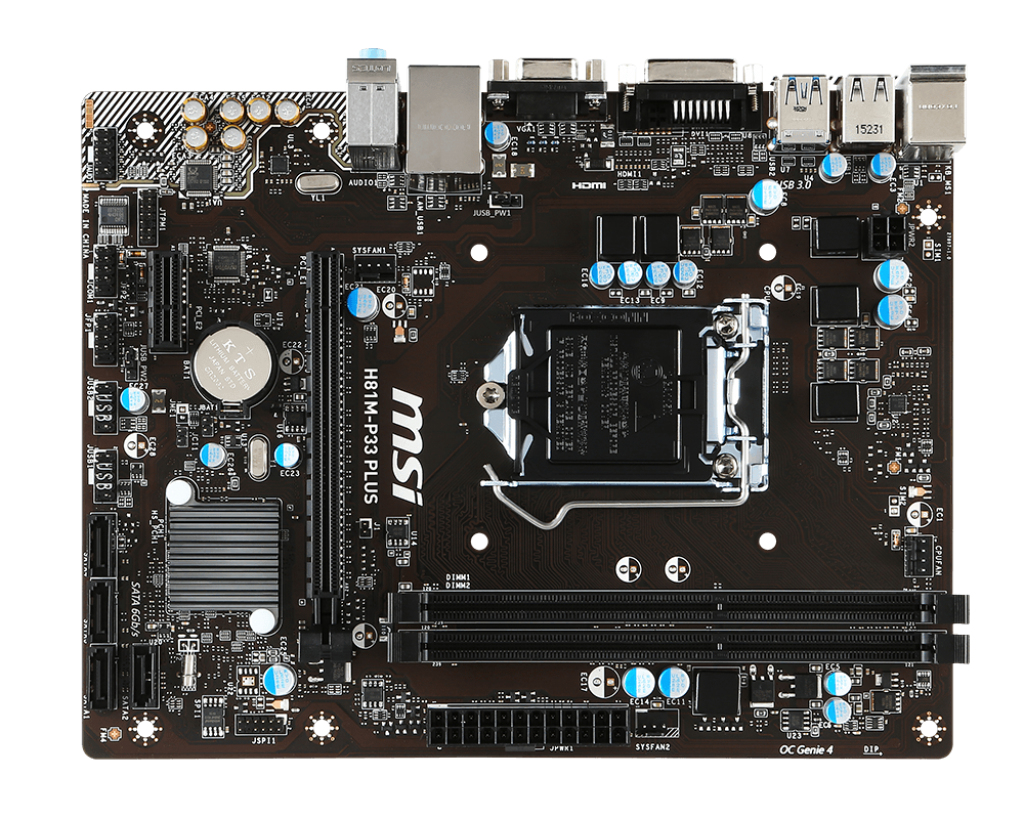

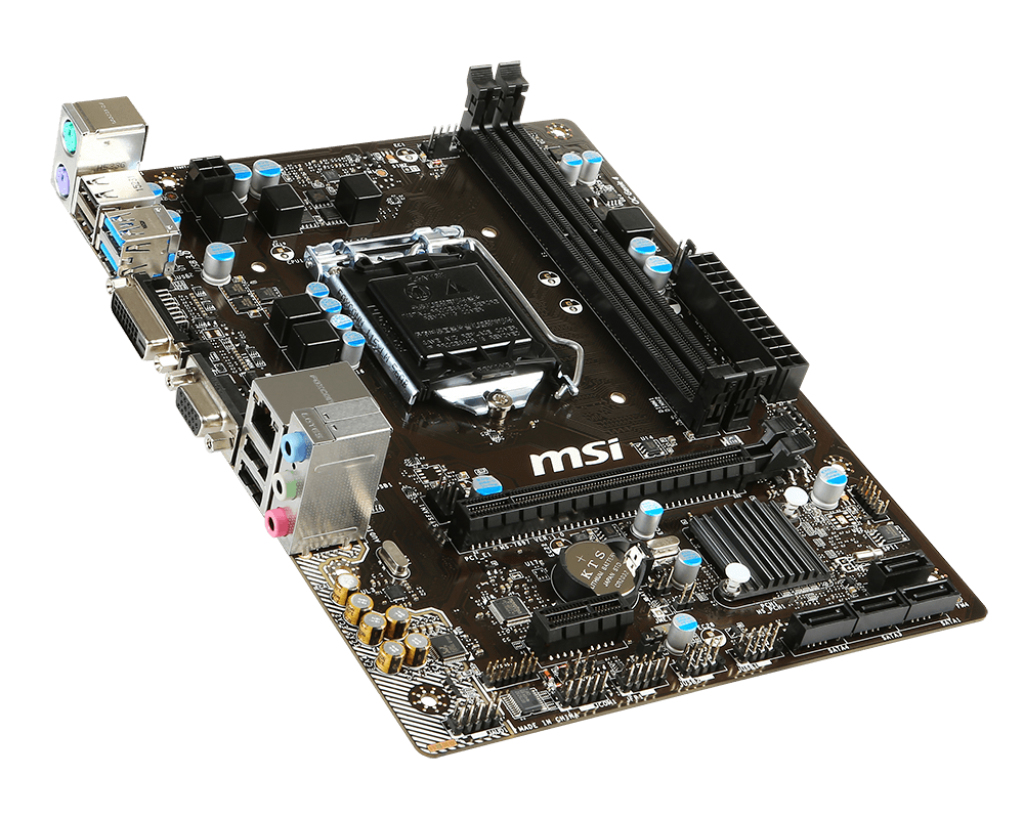

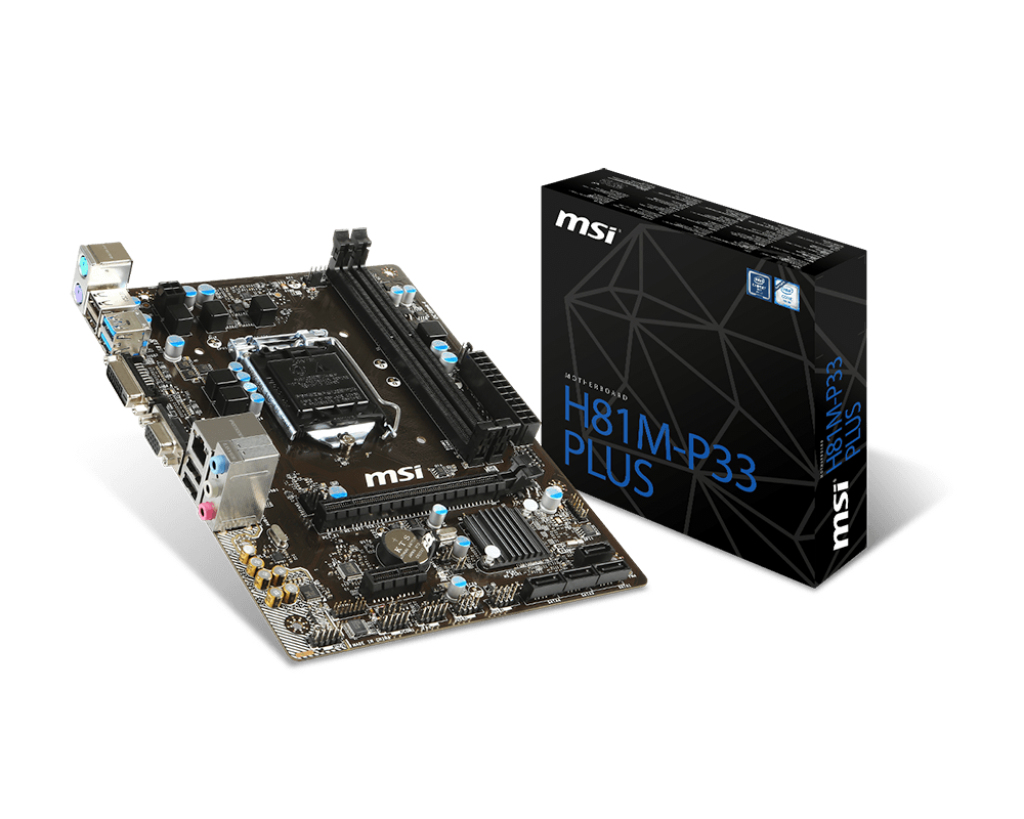

MSI H81M-P33 PLUS

MSI H81M-P33 PLUS

Model H81M-P33 PLUSPart no. 7897-001REAN 4719072418816

56 specifications
  • Processor manufacturerIntel
  • Supported memory typesDDR3-SDRAM
  • Supported storage drive interfacesSATA II, SATA III
  • Maximum resolution1920 x 1200 pixels
  • USB 2.0 connectors2
  • USB 2.0 ports quantity4
See all specifications

Overview

Processor manufacturer
Intel
Supported memory types
DDR3-SDRAM
Supported storage drive interfaces
SATA II, SATA III
Maximum resolution
1920 x 1200 pixels
USB 2.0 connectors
2
USB 2.0 ports quantity
4
Brand
MSI
Category
Motherboard
Model
H81M-P33 PLUS
Part numbers
7897-001R, 911-7897-001
EAN / UPC
4719072418816
Also known as
MSI H81M-P33 PLUS Intel® H81 LGA 1150 (Socket H3) micro ATX

Specifications

56 specifications in 11 groups

Processor

Processor manufacturerIntel
Processor socketLGA 1150 (Socket H3)
Compatible processor seriesIntel® Celeron®, Intel® Pentium®
Intel Core i3/i5/i7/i9 seriesi3-4xxx, i5-4xxx, i7-4xxx

Memory

Supported memory typesDDR3-SDRAM
Number of memory slots2
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds1066,1333,1600 MHz
Maximum internal memory16 GB
Unbuffered memoryYes

Storage controllers

Supported storage drive interfacesSATA II, SATA III

Graphics

Maximum resolution1920 x 1200 pixels
DirectX version11

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors0
USB 3.2 Gen 2 (3.1 Gen 2) connectors0
Number of SATA III connectors2
Number of SATA II connectors2
Number of Parallel ATA connectors0
Front panel audio connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Chassis intrusion connectorYes
Peripheral (Molex) power connectors (4-pin)1
12V power connectorYes

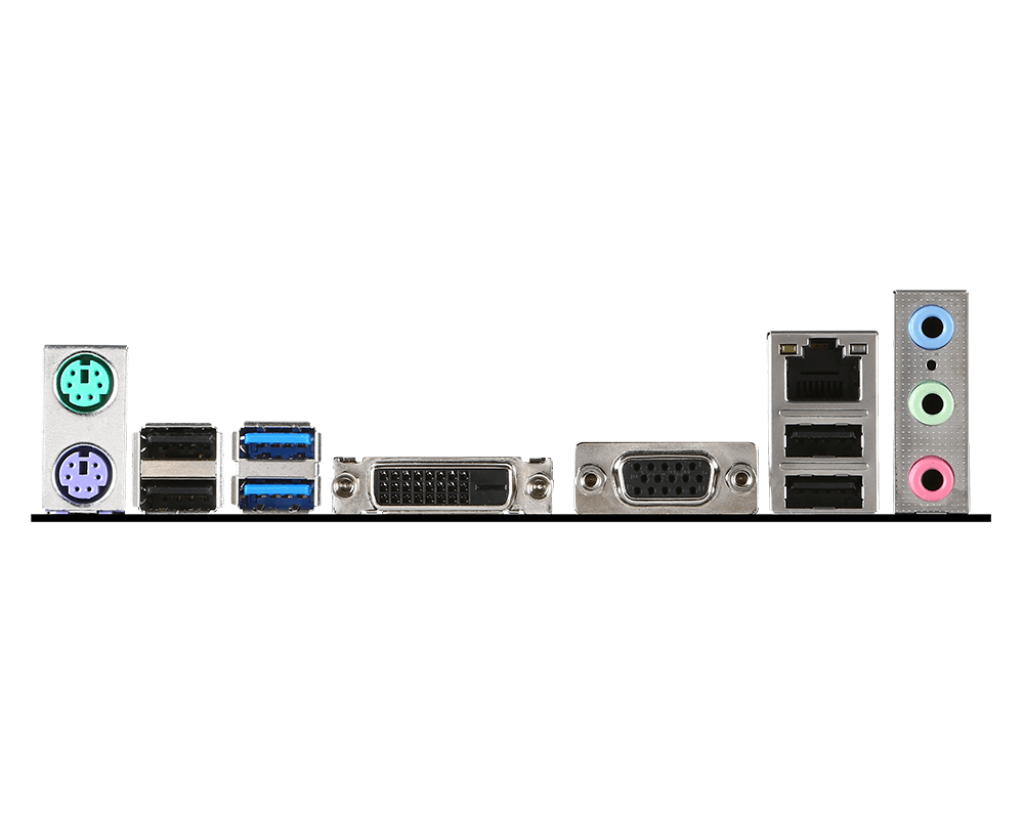

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity0
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity0
Ethernet LAN (RJ-45) ports1
eSATA ports quantity0
PS/2 ports quantity2
Firewire (IEEE 1394) ports0
VGA (D-Sub) ports quantity1
HDMI ports quantity0
DVI-D ports quantity1
Headphone outputs1
Microphone inYes

Network

Ethernet LANYes
Ethernet interface typeGigabit Ethernet
LAN controllerRealtek RTL8111G

Features

Component forPC
Motherboard form factormicro ATX
Motherboard chipset familyIntel
Motherboard chipsetIntel® H81
Audio chipRealtek ALC887
Power source typeATX

Expansion slots

PCI Express x1 (Gen 2.x) slots1
PCI Express x16 (Gen 2.x) slots1

BIOS

BIOS typeUEFI
Clear CMOS jumperYes

Weight & dimensions

Width226 mm
Depth173 mm
